Durostone® EPC 205
GFK-EP
Durostone® EPC 205 是一种纤维增强塑料，其机械强度极高。这种强度是通过玻璃纤维无捻粗纱实现的，并规定了燃烧性能。

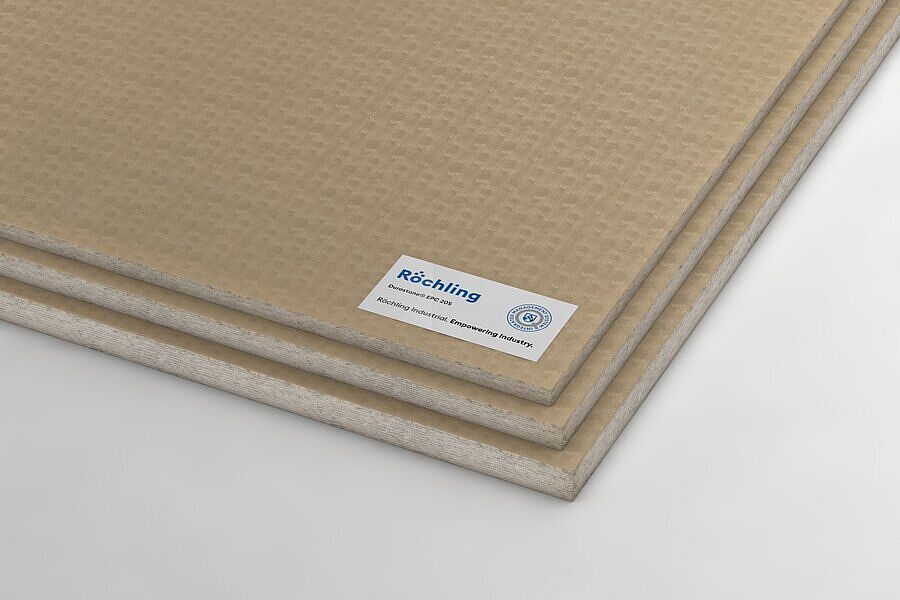

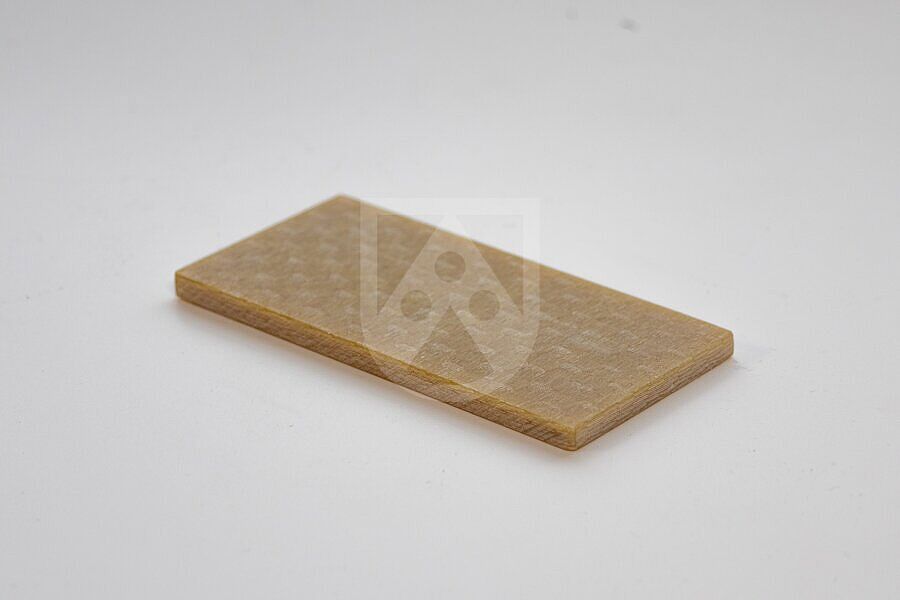

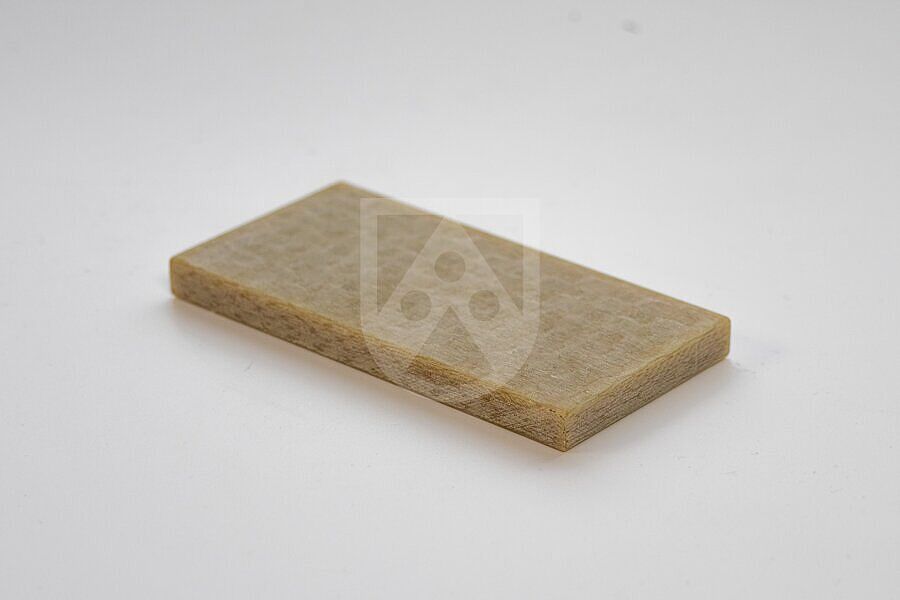

sheetmachined part
Characteristics
- High-pressure laminate
- High dielectric strength
- High mechanical strength
- Flame retardant
- Special epoxy (EP) resin matrix reinforced with an e-glass roving fabric
Industries
Semiconductor High and low temperature
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 242721 | Durostone® EPC 205 pressed | sheet | sheet | 3.000 x 1.120 x 11 (+/-1) mm | 3,000 mm | 1,120 mm | 11 mm | |||
| No stock item (MOQ) | 270808 | Durostone® EPC 205 pressed | sheet | sheet | 3.000 x 1.120 x 20 (+/- 1,6) mm | 3,000 mm | 1,120 mm | 20 mm | |||
| No stock item (MOQ) | 292701 | Durostone® EPC 205 pressed | sheet | sheet | 3.000 x 1.120 x 27 (+/-1,7) mm | 3,000 mm | 1,120 mm | 27 mm | |||
| No stock item (MOQ) | 294493 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 4 (+/-0,6) mm | 2,000 mm | 1,120 mm | 4 mm | |||
| No stock item (MOQ) | 295672 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 11 (+/-1) mm | 2,000 mm | 1,120 mm | 11 mm | |||
| No stock item (MOQ) | 297143 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 13 (+/-1) mm | 2,000 mm | 1,120 mm | 13 mm | |||
| No stock item (MOQ) | 301518 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 10 (+/-1) mm | 2,000 mm | 1,120 mm | 10 mm | |||
| No stock item (MOQ) | 310203 | Durostone® EPC 205 pressed | sheet | sheet | 3.000 x 1.120 x 4 (+/-0,6) mm | 3,000 mm | 1,120 mm | 4 mm | |||
| No stock item (MOQ) | 312098 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 18 (+/-1,5) mm | 2,000 mm | 1,120 mm | 18 mm | |||
| No stock item (MOQ) | 312883 | Durostone® EPC 205 pressed | sheet | sheet | 3.000 x 1.120 x 9 (+/-1) mm | 3,000 mm | 1,120 mm | 9 mm | |||
| No stock item (MOQ) | 343668 | Durostone® EPC 205 pressed | sheet | sheet | 3.000 x 1.120 x 73 (+/- 2,3) mm | 3,000 mm | 1,120 mm | 73 mm | |||
| No stock item (MOQ) | 356105 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 33 (+/-1,5) mm | 2,000 mm | 1,120 mm | 33 mm | |||
| No stock item (MOQ) | 359795 | Durostone® EPC 205 pressed | sheet | sheet | 3.000 x 1.120 x 18 (+/-1,4) mm | 3,000 mm | 1,120 mm | 18 mm | |||
| No stock item (MOQ) | 409577 | Durostone® EPC 205 pressed | sheet | sheet | 3.000 x 1.120 x 33 (+/-2) mm | 3,000 mm | 1,120 mm | 33 mm | |||
| No stock item (MOQ) | 432563 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 125 (+/-2,7) mm | 2,000 mm | 1,120 mm | 125 mm | |||
| No stock item (MOQ) | 432707 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 115 (+/-2,7) mm | 2,000 mm | 1,120 mm | 115 mm | |||
| No stock item (MOQ) | 455412 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 25 (+/-1,25) mm | 2,000 mm | 1,120 mm | 25 mm | |||
| No stock item (MOQ) | 470961 | Durostone® EPC 205 pressed | sheet | sheet | 2.000 x 1.120 x 16 (+/-1,4) mm | 2,000 mm | 1,120 mm | 16 mm | |||
| No stock item (MOQ) | 505120 | Durostone® EPC 205 pressed | machined part | machined part | 231,5 x 136,5 x 65 mm | 231.5 mm | 136.5 mm | 65 mm |
Technical Specifications Durostone® EPC 205
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ISO 1183 | g / cm3 | 2,05 |
| Flexural strength ┴ | ISO 178 | MPa | 600 |
| Flexural strength ┴ +150°C | ISO 178 | MPa | 500 |
| Modulus of elasticity in flexion ┴ | ISO 178 | MPa | 30000 |
| Modulus of elasticity in flexion ┴ +150°C | ISO 178 | MPa | 26000 |
| Compressive strength ┴ | ISO 604 | MPa | 600 |
| Compressive strength II | ISO 604 | MPa | 450 |
| Tensile strength II | ISO 527 | MPa | 450 |
| Impact strength II (Charpy) | ISO 179 | kJ / m2 | 250 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Flammability | UL 94 | / | V0 / 3mm |
| Temperature index | IEC 60216 | T.I. | 180 |
| Insulation class | IEC 60085 | / | H |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water absorption (method 1) | ISO 62 | % | 0,2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Electric strength 90°C under oil ┴ | IEC 60243 | kV / mm | 13 |
| Electric strength 90°C under oil II | IEC 60243 | kV/25mm | 70 |
| Relative permittivity (50 Hz) | IEC 60250 | εr | 5 |
| Dielectric loss factor (50 Hz) | IEC 60250 | tan δ | 0,04 |
| Specific surface resistance | IEC 60093 | Ω | 1012 |
| Specific volume resistance | IEC 60093 | Ω x cm | 1014 |
| Comparative tracking index (test solution A) | IEC 60112 | CTI | 600 |
| Insulation resistance after 24 h water immersion | IEC 60167 | Ω | 1010 |
