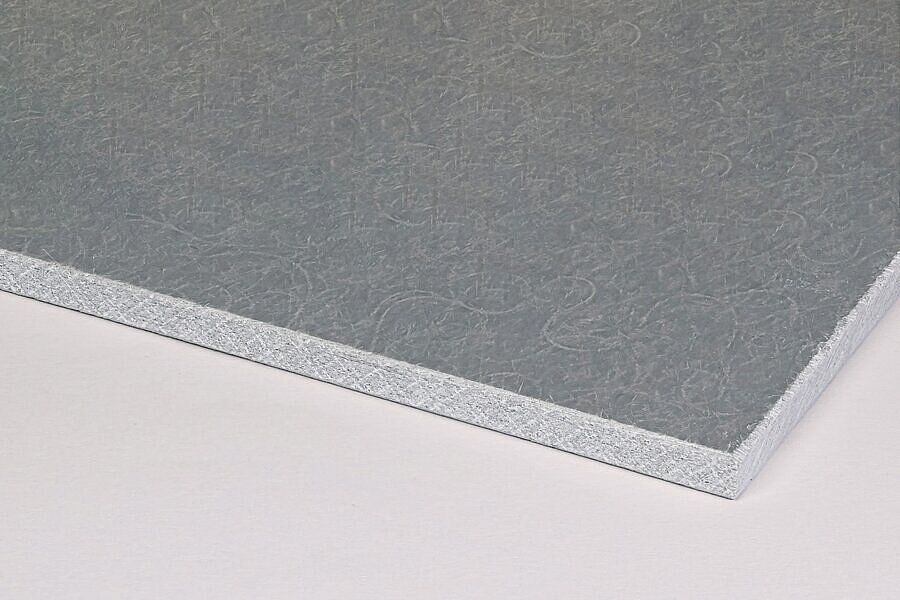

Durostone® UPM S16
GFK-UP
Durostone® UPM S16是一种纤维增强塑料，具有优异的机械性能。塑料具有特定的燃烧性能，是Durostone特色产品之一。
silver grey, similar RAL 7001
sheet
Characteristics
- High-pressure laminate
- Special polyester (UP) resin matrix reinforced with an e-glass roving mat
- High mechanical strength
- High dielectric strength
- Flame retardant
Industries
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 210057 | Durostone® UPM S16 grey pressed | sheet | sheet | silver grey, similar RAL 7001 | 2.470 x 1.250 x 5 (+/-0,55) mm | 2,470 mm | 1,250 mm | 5 mm | ||
| No stock item (MOQ) | 210058 | Durostone® UPM S16 grey pressed | sheet | sheet | silver grey, similar RAL 7001 | 2.470 x 1.250 x 10 (+/-0,8) mm | 2,470 mm | 1,250 mm | 10 mm | ||
| No stock item (MOQ) | 210059 | Durostone® UPM S16 grey pressed | sheet | sheet | silver grey, similar RAL 7001 | 2.440 x 1.220 x 5 (+/-0,55) mm | 2,440 mm | 1,220 mm | 5 mm | ||
| No stock item (MOQ) | 210061 | Durostone® UPM S16 grey pressed | sheet | sheet | silver grey, similar RAL 7001 | 2.440 x 1.220 x 10 (+/-0,8) mm | 2,440 mm | 1,220 mm | 10 mm | ||
| No stock item (MOQ) | 264628 | Durostone® UPM S16 grey pressed | sheet | sheet | silver grey, similar RAL 7001 | 2.440 x 1.220 x 25 (+/-1,4) mm | 2,440 mm | 1,220 mm | 25 mm | ||
| No stock item (MOQ) | 323800 | Durostone® UPM S16 grey pressed | sheet | sheet | silver grey, similar RAL 7001 | 2.440 x 1.220 x 12 (+/-1,0) mm | 2,440 mm | 1,220 mm | 12 mm | ||
| No stock item (MOQ) | 438004 | Durostone® UPM S16 grey pressed | sheet | sheet | silver grey, similar RAL 7001 | 2.440 x 1.220 x 22 (+/-1,3) mm | 2,440 mm | 1,220 mm | 22 mm |
Technical Specifications Durostone® UPM S16
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ISO 1183 | g / cm3 | 1,87 |
| Flexural strength ┴ | ISO 178 | MPa | 200 |
| Modulus of elasticity in flexion ┴ | ISO 178 | MPa | 13000 |
| Compressive strength ┴ | ISO 604 | MPa | 300 |
| Compressive strength II | ISO 604 | MPa | 180 |
| Tensile strength II | ISO 527 | MPa | 100 |
| Impact strength II (Charpy) | ISO 179 | kJ / m2 | 100 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Flammability | UL 94 | / | V0 / 3mm |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water absorption (4mm thickness) | ISO 62 | % | 0,2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Electric strength 90°C under oil ┴ | IEC 60243 | kV / mm | 12 |
| Electric strength 90°C under oil II | IEC 60243 | kV/25mm | 75 |
| Specific surface resistance | IEC 60093 | Ω | 1013 |
| Comparative tracking index | IEC 60112 | CTI | 600 |
