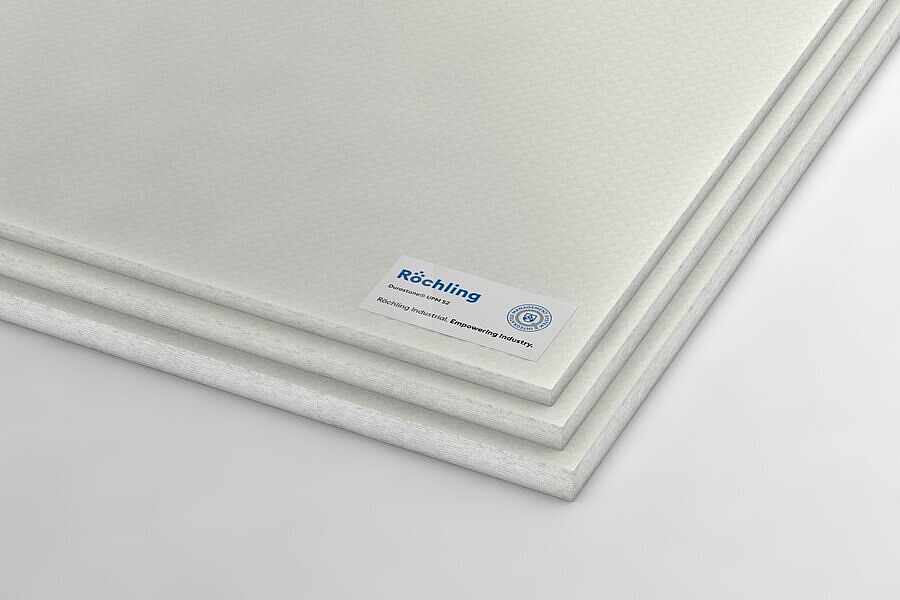

Durostone® UPM S2

GFK-UP

Durostone^® UPM S2 是一种纤维增强塑料，具有优异的机械性能和特定的UL阻燃等级。以玻璃纤维毡或玻璃纤维布为增强骨架。

raspberry red, similar RAL 3027cream, similar RAL 9001

sheet

Characteristics

Special vinyl ester (VE) resin matrix reinforced with a combination of an e-glass roving mat and fabric
SMC high-pressure laminate
High mechanical strength
High dielectric strength

Industries

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	419183	Durostone® UPM S2 red pressed	sheet	sheet	raspberry red, similar RAL 3027	12 (+/-0,8) x 1160 x 2380 mm	2,380 mm	1,160 mm	12 mm
No stock item (MOQ)	297231	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	5 (+/-0,55) x 1160 x 2380 mm	2,380 mm	1,160 mm	5 mm
No stock item (MOQ)	297235	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	18 (+/-1,3) x 1160 x 2380 mm	2,380 mm	1,160 mm	18 mm
Stock item (no MOQ)	297359	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	45 (+/-1,75) x 1160 x 2380 mm	2,380 mm	1,160 mm	45 mm
No stock item (MOQ)	297364	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	6 (+/-0,6) x 1160 x 2380 mm	2,380 mm	1,160 mm	6 mm
No stock item (MOQ)	297365	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	8 (+/-0,7) x 1160 x 2380 mm	2,380 mm	1,160 mm	8 mm
No stock item (MOQ)	297366	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	10 (+/-0,8) x 1160 x 2380 mm	2,380 mm	1,160 mm	10 mm
No stock item (MOQ)	297367	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	11,5 (+/-0,9) x 1160 x 2380 mm	2,380 mm	1,160 mm	11.5 mm
No stock item (MOQ)	297368	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	12 (+/-0,9) x 1160 x 2380 mm	2,380 mm	1,160 mm	12 mm
No stock item (MOQ)	297369	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	15 (+/-1,05) x 1160 x 2380 mm	2,380 mm	1,160 mm	15 mm
No stock item (MOQ)	297370	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	20 (+/-1,3) x 1160 x 2380 mm	2,380 mm	1,160 mm	20 mm
No stock item (MOQ)	297372	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	25 (+/-1,4) x 1160 x 2380 mm	2,380 mm	1,160 mm	25 mm
No stock item (MOQ)	297374	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	30 (+/-1,45) x 1160 x 2380 mm	2,380 mm	1,160 mm	30 mm
No stock item (MOQ)	297376	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	35 (+/-1,5) x 1160 x 2380 mm	2,380 mm	1,160 mm	35 mm
No stock item (MOQ)	297379	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	42 (+/-1,55) x 1160 x 2380 mm	2,380 mm	1,160 mm	42 mm
No stock item (MOQ)	297380	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	70 (+/-2,2) x 1160 x 2380 mm	2,380 mm	1,160 mm	70 mm
No stock item (MOQ)	297386	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	26 (+/-1,4) x 1160 x 2380 mm	2,380 mm	1,160 mm	26 mm
No stock item (MOQ)	297387	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	22 (+/-1,5) x 1160 x 2380 mm	2,380 mm	1,160 mm	22 mm
No stock item (MOQ)	297388	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	60 (+/-1,9) x 1160 x 2380 mm	2,380 mm	1,160 mm	60 mm
No stock item (MOQ)	297389	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	62 (+/-2) x 1160 x 2380 mm	2,380 mm	1,160 mm	62 mm
No stock item (MOQ)	297391	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	7 (+/-0,65) x 1160 x 2380 mm	2,380 mm	1,160 mm	7 mm
Stock item (no MOQ)	297393	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	50 (+/-1,75) x 1160 x 2380 mm	2,380 mm	1,160 mm	50 mm
No stock item (MOQ)	297394	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	80 (+/-2,2) x 1160 x 2380 mm	2,380 mm	1,160 mm	80 mm
No stock item (MOQ)	297395	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	73 (+/-2,20) x 1160 x 2380 mm	2,380 mm	1,160 mm	73 mm
No stock item (MOQ)	297401	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	43 (+/-1,55) x 1160 x 2380 mm	2,380 mm	1,160 mm	43 mm
No stock item (MOQ)	297411	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	55 (+/-1,9) x 1160 x 2380 mm	2,380 mm	1,160 mm	55 mm
No stock item (MOQ)	297412	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	23 (+/-1,4) x 1160 x 2380 mm	2,380 mm	1,160 mm	23 mm
Stock item (no MOQ)	297414	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	37 (+/-1,55) x 1160 x 2380 mm	2,380 mm	1,160 mm	37 mm
No stock item (MOQ)	297415	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	90 (+/-1,9) x 1160 x 2380 mm	2,380 mm	1,160 mm	90 mm
No stock item (MOQ)	297422	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	11 (+/-0,85) x 1160 x 2380 mm	2,380 mm	1,160 mm	11 mm
No stock item (MOQ)	297425	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	14 (+/-1) x 1160 x 2380 mm	2,380 mm	1,160 mm	14 mm
No stock item (MOQ)	313854	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	64 (+/-2) x 1160 x 2380 mm	2,380 mm	1,160 mm	64 mm
No stock item (MOQ)	328451	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	13 (+/-0,95) x 1160 x 2380 mm	2,380 mm	1,160 mm	13 mm
No stock item (MOQ)	329257	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	9 (+/-0,75) x 1160 x 2380 mm	2,380 mm	1,160 mm	9 mm
No stock item (MOQ)	385844	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	10 (+/-0,8) x 1160 x 2380 mm	2,380 mm	1,160 mm	10 mm
Stock item (no MOQ)	472216	Durostone® UPM S2 white pressed	sheet	sheet	cream, similar RAL 9001	50 (+/-1,75) x 1160 x 2380 mm	2,380 mm	1,160 mm	50 mm

Technical Specifications Durostone® UPM S2 red

	Test Method	Unit	Guideline Value
Density	ISO 1183	g / cm³	1,95
Flexural strength ¹⁾┴	ISO 178	MPa	350
Flexural strength ¹⁾┴ +130°C	ISO 178	MPa	175
Modulus of elasticity in flexion ¹⁾┴	ISO 178	MPa	18000
Modulus of elasticity in flexion ¹⁾┴ +130°C	ISO 178	MPa	12000
Compressive strength ┴	ISO 604	MPa	480
Tensile strength II	ISO 527	MPa	220
Impact strength II (Charpy)	ISO 179	kJ / m²	200

	Test Method	Unit	Guideline Value
Flammability	UL 94	/	V0 / 5mm
Smoke density & toxicity, class	NF F 16-101	/	F0
Fire test, class	NF P 92-501	/	M2
Temperature index	IEC 60216	T.I.	155
Insulation class	IEC 60085	/	F

	Test Method	Unit	Guideline Value
Water absorption (4mm thickness)	ISO 62	%	0,5

	Test Method	Unit	Guideline Value
Electric strength 90°C under oil ┴	IEC 60243	kV / mm	12
Electric strength 90°C under oil II	IEC 60243	kV/25mm	75
Relative permittivity (50 Hz)	IEC 60250	ε_r	4
Dielectric loss factor (50 Hz)	IEC 60250	tan δ	0,01
Specific surface resistance	IEC 60093	Ω	10¹⁰
Comparative tracking index	IEC 60112	CTI	600

Technical Specifications Durostone® UPM S2 white

	Test Method	Unit	Guideline Value
Density	ISO 1183	g / cm³	1,95
Flexural strength ¹⁾┴	ISO 178	MPa	350
Flexural strength ¹⁾┴ +130°C	ISO 178	MPa	175
Modulus of elasticity in flexion ¹⁾┴	ISO 178	MPa	18000
Modulus of elasticity in flexion ¹⁾┴ +130°C	ISO 178	MPa	12000
Compressive strength ┴	ISO 604	MPa	480
Tensile strength II	ISO 527	MPa	220
Impact strength II (Charpy)	ISO 179	kJ / m²	200

	Test Method	Unit	Guideline Value
Flammability	UL 94	/	V0 / 5mm
Smoke density & toxicity, class	NF F 16-101	/	F0
Fire test, class	NF P 92-501	/	M2
Temperature index	IEC 60216	T.I.	155
Insulation class	IEC 60085	/	F

	Test Method	Unit	Guideline Value
Water absorption (4mm thickness)	ISO 62	%	0,5

	Test Method	Unit	Guideline Value
Electric strength 90°C under oil ┴	IEC 60243	kV / mm	12
Electric strength 90°C under oil II	IEC 60243	kV/25mm	75
Relative permittivity (50 Hz)	IEC 60250	ε_r	4
Dielectric loss factor (50 Hz)	IEC 60250	tan δ	0,01
Specific surface resistance	IEC 60093	Ω	10¹⁰
Comparative tracking index	IEC 60112	CTI	600
