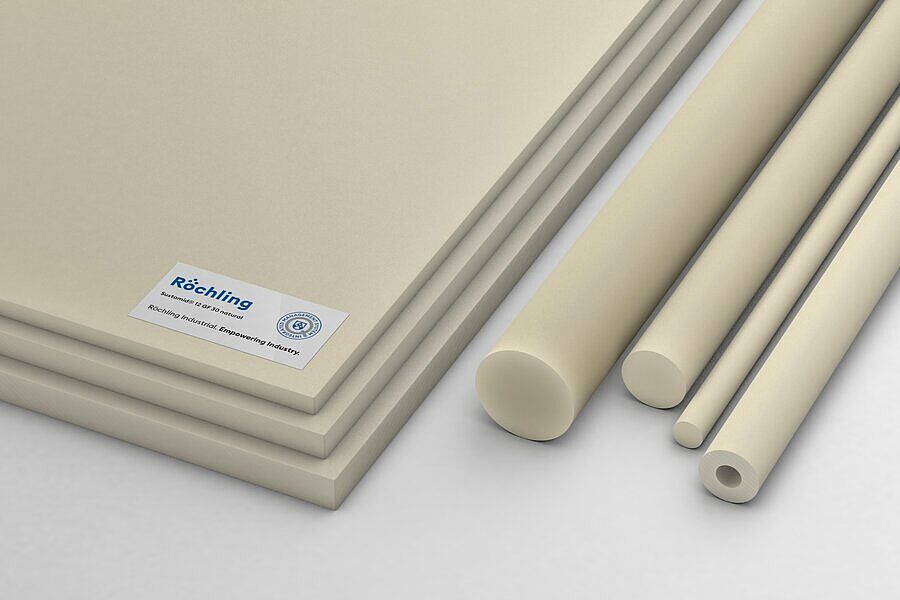

Sustamid® 12 GF 30 natural
PA — PA 12
The reinforced polyamide
Sustamid® 12 GF30 natural is a glass fiber-reinforced polyamide 12 that offers significantly higher strength, stiffness, and improved dimensional stability thanks to 30% glass fibers. Compared to standard PA 12, it delivers increased mechanical load capacity and reduced deformation under stress. This makes the material especially suitable for durable and highly stressed components.
natural
sheetrodtubular bar
Characteristics
- High heat deflection temperature
- Good noise absorption properties
- Vibration damping
- High abrasion resistance
- High stiffness
- Good compressive strength
- High mechanical strength
Industries
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 102320 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 16 x 620 x 3000 mm | 3,000 mm | 620 mm | 16 mm | ||
| No stock item (MOQ) | 102324 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 50 x 620 x 3000 mm | 3,000 mm | 620 mm | 50 mm | ||
| No stock item (MOQ) | 118042 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 20 x 3000 mm | 3,000 mm | 20 mm | |||
| No stock item (MOQ) | 118046 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 40 x 3000 mm | 3,000 mm | 40 mm | |||
| No stock item (MOQ) | 118047 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 50 x 3000 mm | 3,000 mm | 50 mm | |||
| No stock item (MOQ) | 118048 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 60 x 3000 mm | 3,000 mm | 60 mm | |||
| No stock item (MOQ) | 619328 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 50 x 1000 mm | 1,000 mm | 50 mm | |||
| No stock item (MOQ) | 678821 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 130 x 1000 mm | 1,000 mm | 130 mm | |||
| No stock item (MOQ) | 800942 | Sustamid® 12 GF 30 natural extruded | tubular bar | tubular bar | natural | Ø 125/70 x 2000 mm | 2,000 mm | 125 mm | 70 mm | ||
| No stock item (MOQ) | 800943 | Sustamid® 12 GF 30 natural extruded | tubular bar | tubular bar | natural | Ø 125/70 x 3000 mm | 3,000 mm | 125 mm | 70 mm | ||
| No stock item (MOQ) | 803371 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 45 x 1000 mm | 1,000 mm | 45 mm | |||
| No stock item (MOQ) | 803736 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 16 x 620 x 1000 mm | 1,000 mm | 620 mm | 16 mm | ||
| No stock item (MOQ) | 803738 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 50 x 620 x 1000 mm | 1,000 mm | 620 mm | 50 mm | ||
| No stock item (MOQ) | 803739 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 20 x 1000 mm | 1,000 mm | 20 mm | |||
| No stock item (MOQ) | 803745 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 60 x 1000 mm | 1,000 mm | 60 mm | |||
| No stock item (MOQ) | 920394 | Sustamid® 12 GF 30 natural extruded | rod | rod | natural | Ø 130 x 3000 mm | 3,000 mm | 130 mm | |||
| No stock item (MOQ) | 924593 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 20 x 620 x 1000 mm | 1,000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 924594 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 20 x 620 x 3000 mm | 3,000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 933161 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 40 x 620 x 3000 mm | 3,000 mm | 620 mm | 40 mm | ||
| No stock item (MOQ) | 933372 | Sustamid® 12 GF 30 natural extruded | sheet | sheet | natural | 40 x 620 x 1000 mm | 1,000 mm | 620 mm | 40 mm |
Technical Specifications Sustamid® 12 GF 30 natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,25 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 60 |
| Elongation at break | DIN EN ISO 527 | % | 10 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 4000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 5 |
| Shore hardness | DIN EN ISO 868 | scale D | 86 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 180 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,28 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,50 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 60 |
| Service temperature, long term | Average | °C | -30 … 110 |
| Service temperature, short term (max.) | Average | °C | 180 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 140 |
