Optamid®
PA — PA 6 G

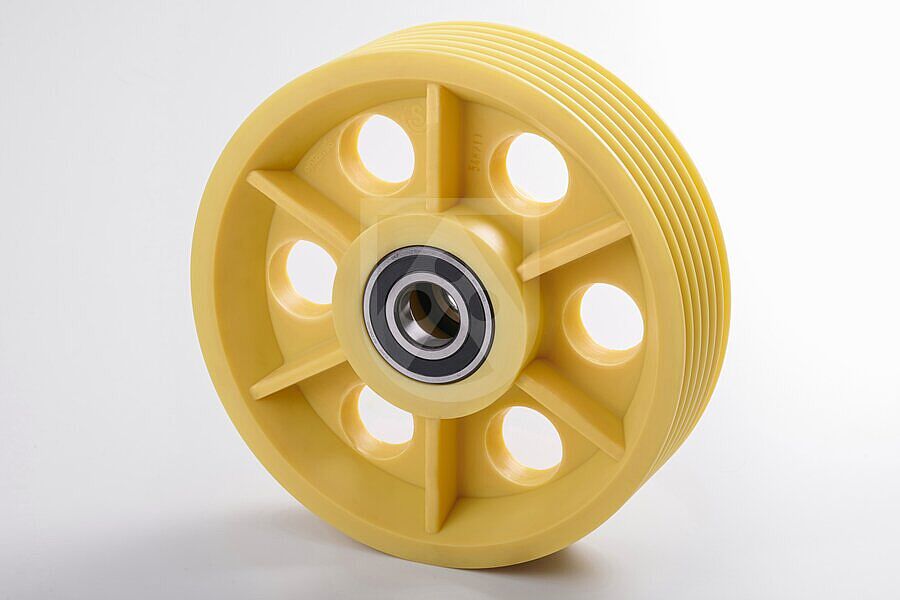

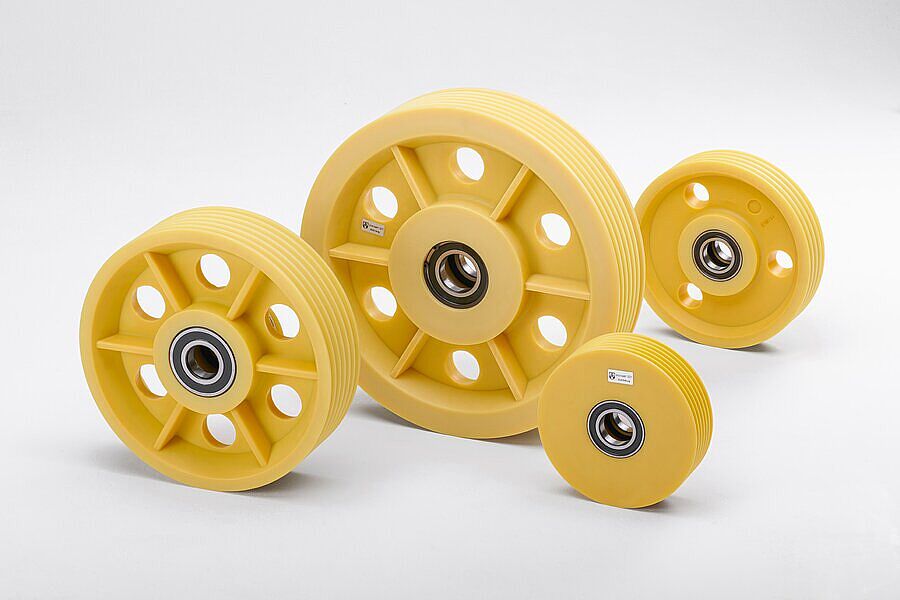

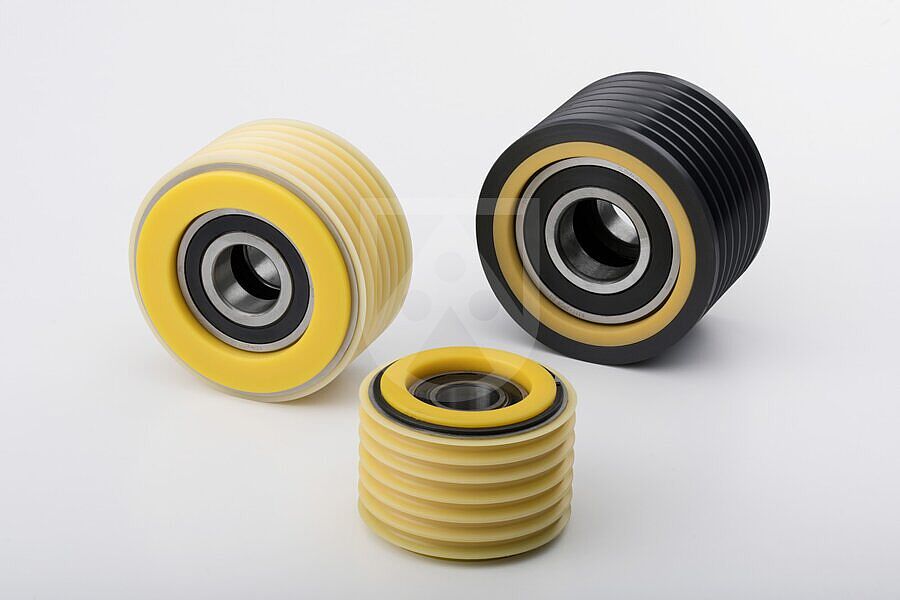

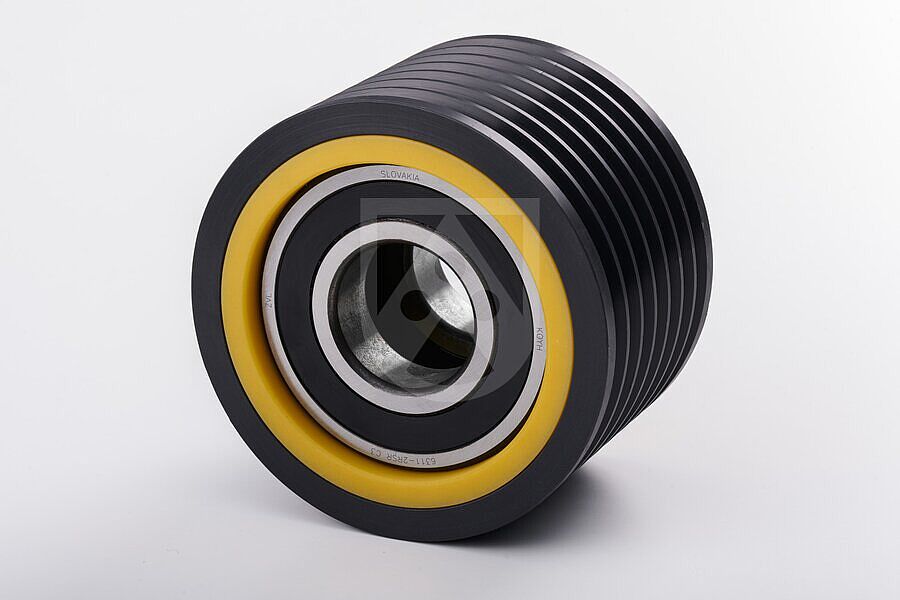

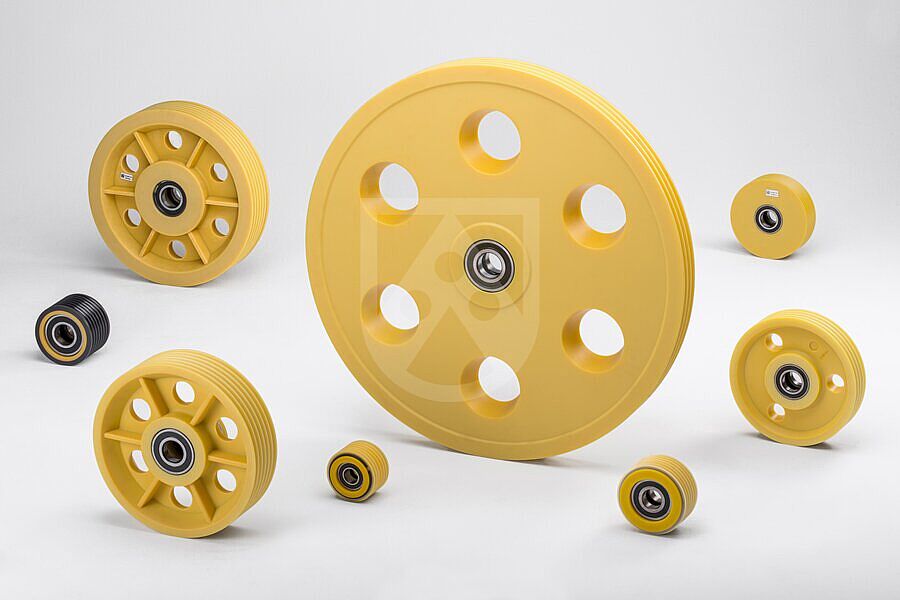

Pulleys made of our high-performance plastic Optamid® (PA 6G) have already been used successfully in cable lifts having traction sheaves for more than 45 years. Optamid® deflection rollers are always coloured yellow, provided with quality bearings and are quick and easy to install. Our services also include a computation of the load and bearing life.
7 days delivery for high-quality Optamid pulleys
With our service Pulley Express we ship to you custom manufactured high-quality Optamid® pulleys to your specifications that will be dispatched within 7 days to European countries.
Characteristics
- Good toughness
- Good wear resistance
- Good dimensional stability
Industries
建筑行业
Application Examples
Technical Specifications Optamid®
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,13-1,17 |
| Water absorption | DIN EN ISO 62 | % | 6,1-7,1 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 75-90 |
| Elongation at break | DIN EN ISO 527 | % | 20-40 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3300 - 4000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 3,5-6,0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 220 - 230 |
