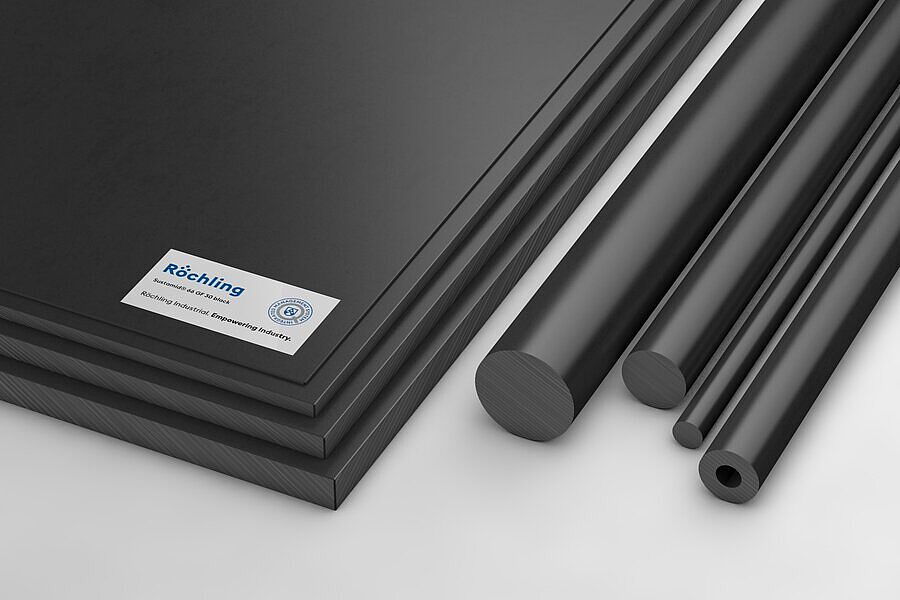

Sustamid® 66 GF 30 black

PA — PA 66

The strong glass fiber type

Sustamid® 66 GF30 (PA 66 GF30) is a high-performance engineering material based on polyamide 66, reinforced with 30% glass fibers. The glass fiber reinforcement provides high mechanical strength, good dimensional stability, and improved heat resistance. The combination of stiffness, strength, and low creep makes it ideal for components subjected to continuous mechanical and thermal stress.

black

sheetrod

Characteristics

High hardness
High rigidity
High heat deflection temperature
Good dimensional stability
High absorption of moisture depending on temperature and humidity

Industries

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
Stock item (no MOQ)	102049	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	12 x 620 x 3000 mm	3,000 mm	620 mm	12 mm
Stock item (no MOQ)	102050	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	20 x 620 x 3000 mm	3,000 mm	620 mm	20 mm
Stock item (no MOQ)	102051	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	25 x 620 x 3000 mm	3,000 mm	620 mm	25 mm
Stock item (no MOQ)	102052	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	30 x 620 x 3000 mm	3,000 mm	620 mm	30 mm
Stock item (no MOQ)	102053	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	40 x 620 x 3000 mm	3,000 mm	620 mm	40 mm
No stock item (no MOQ)	112116	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 20 x 3000 mm	3,000 mm		20 mm
No stock item (no MOQ)	112117	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 25 x 3000 mm	3,000 mm		25 mm
Stock item (no MOQ)	112118	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 30 x 3000 mm	3,000 mm		30 mm
No stock item (no MOQ)	112119	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 35 x 3000 mm	3,000 mm		35 mm
No stock item (no MOQ)	112120	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 40 x 3000 mm	3,000 mm		40 mm
Stock item (no MOQ)	112122	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 50 x 3000 mm	3,000 mm		50 mm
Stock item (no MOQ)	112123	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 60 x 3000 mm	3,000 mm		60 mm
No stock item (no MOQ)	112124	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 70 x 3000 mm	3,000 mm		70 mm
No stock item (no MOQ)	112125	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 80 x 3000 mm	3,000 mm		80 mm
No stock item (no MOQ)	112126	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 100 x 3000 mm	3,000 mm		100 mm
Stock item (no MOQ)	212046	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	10 x 620 x 3000 mm	3,000 mm	620 mm	10 mm
Stock item (no MOQ)	212052	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	50 x 620 x 3000 mm	3,000 mm	620 mm	50 mm
Stock item (no MOQ)	212086	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	16 x 620 x 3000 mm	3,000 mm	620 mm	16 mm
No stock item (MOQ)	600590	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 20 x 1000 mm	1,000 mm		20 mm
No stock item (MOQ)	623104	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	60 x 500 x 3000 mm	3,000 mm	500 mm	60 mm
No stock item (MOQ)	623106	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	60 x 500 x 1000 mm	1,000 mm	500 mm	60 mm
No stock item (MOQ)	623107	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	60 x 500 x 2000 mm	2,000 mm	500 mm	60 mm
No stock item (MOQ)	630491	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 60 x 2000 mm	2,000 mm		60 mm
No stock item (MOQ)	636677	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	10 x 620 x 2500 mm	2,500 mm	620 mm	10 mm
No stock item (MOQ)	642470	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	20 x 620 x 2000 mm	2,000 mm	620 mm	20 mm
No stock item (MOQ)	649215	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	10 x 620 x 2000 mm	2,000 mm	620 mm	10 mm
No stock item (MOQ)	652404	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 30 x 2000 mm	2,000 mm		30 mm
No stock item (MOQ)	665557	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	30 x 620 x 2000 mm	2,000 mm	620 mm	30 mm
No stock item (MOQ)	669576	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	65 x 620 x 2000 mm	2,000 mm	620 mm	65 mm
No stock item (MOQ)	669577	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	65 x 620 x 1000 mm	1,000 mm	620 mm	65 mm
No stock item (MOQ)	671773	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	16 x 620 x 2000 mm	2,000 mm	620 mm	16 mm
No stock item (MOQ)	678707	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	10 x 500 x 1000 mm	1,000 mm	500 mm	10 mm
No stock item (MOQ)	697055	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	12 x 500 x 3000 mm	3,000 mm	500 mm	12 mm
No stock item (MOQ)	704073	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 80 x 2000 mm	2,000 mm		80 mm
No stock item (MOQ)	708322	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 20 x 2000 mm	2,000 mm		20 mm
No stock item (MOQ)	718591	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 40 x 2000 mm	2,000 mm		40 mm
No stock item (MOQ)	718596	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 50 x 2000 mm	2,000 mm		50 mm
No stock item (MOQ)	727630	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	12 x 500 x 1000 mm	1,000 mm	500 mm	12 mm
No stock item (MOQ)	751766	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 25 x 2000 mm	2,000 mm		25 mm
No stock item (MOQ)	760988	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	20 x 500 x 3000 mm	3,000 mm	500 mm	20 mm
No stock item (MOQ)	800259	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 80 x 1000 mm	1,000 mm		80 mm
No stock item (MOQ)	800260	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 100 x 1000 mm	1,000 mm		100 mm
No stock item (MOQ)	800822	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	800837	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	800905	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 35 x 1000 mm	1,000 mm		35 mm
No stock item (MOQ)	800907	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 90 x 1000 mm	1,000 mm		90 mm
Stock item (no MOQ)	801024	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	70 x 620 x 2000 mm	2,000 mm	620 mm	70 mm
No stock item (MOQ)	801228	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (MOQ)	803356	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (MOQ)	803775	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	10 x 620 x 1000 mm	1,000 mm	620 mm	10 mm
No stock item (MOQ)	803776	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	12 x 620 x 1000 mm	1,000 mm	620 mm	12 mm
No stock item (MOQ)	803777	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	16 x 620 x 1000 mm	1,000 mm	620 mm	16 mm
No stock item (MOQ)	803778	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	20 x 620 x 1000 mm	1,000 mm	620 mm	20 mm
No stock item (MOQ)	803779	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	25 x 620 x 1000 mm	1,000 mm	620 mm	25 mm
No stock item (MOQ)	803780	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	30 x 620 x 1000 mm	1,000 mm	620 mm	30 mm
No stock item (MOQ)	803781	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	40 x 620 x 1000 mm	1,000 mm	620 mm	40 mm
No stock item (MOQ)	803782	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	50 x 620 x 1000 mm	1,000 mm	620 mm	50 mm
No stock item (MOQ)	803783	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 30 x 1000 mm	1,000 mm		30 mm
No stock item (MOQ)	803784	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 60 x 1000 mm	1,000 mm		60 mm
No stock item (MOQ)	804276	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	70 x 620 x 1000 mm	1,000 mm	620 mm	70 mm
Stock item (no MOQ)	806550	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	60 x 620 x 3000 mm	3,000 mm	620 mm	60 mm
No stock item (MOQ)	923933	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 40 x 2500 mm	2,500 mm		40 mm
No stock item (MOQ)	925486	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	50 x 620 x 2000 mm	2,000 mm	620 mm	50 mm
No stock item (MOQ)	929045	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	40 x 620 x 2000 mm	2,000 mm	620 mm	40 mm
No stock item (MOQ)	929931	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	50 x 500 x 3000 mm	3,000 mm	500 mm	50 mm
No stock item (MOQ)	930288	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 32 x 3000 mm	3,000 mm		32 mm
No stock item (MOQ)	930403	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	60 x 620 x 2000 mm	2,000 mm	620 mm	60 mm
No stock item (MOQ)	930456	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	60 x 620 x 1000 mm	1,000 mm	620 mm	60 mm
No stock item (MOQ)	930492	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	16 x 500 x 3000 mm	3,000 mm	500 mm	16 mm
No stock item (MOQ)	931363	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	12 x 620 x 2000 mm	2,000 mm	620 mm	12 mm
No stock item (MOQ)	932022	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	10 x 500 x 3000 mm	3,000 mm	500 mm	10 mm
No stock item (MOQ)	934627	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	25 x 620 x 2000 mm	2,000 mm	620 mm	25 mm
No stock item (MOQ)	934650	Sustamid® 66 GF 30 black extruded	rod	rod	black	Ø 65 x 1000 mm	1,000 mm		65 mm
No stock item (MOQ)	934949	Sustamid® 66 GF 30 black extruded	sheet	sheet	black	70 x 500 x 2000 mm	2,000 mm	500 mm	70 mm

Technical Specifications Sustamid® 66 GF 30 black

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,32
Water absorption	DIN EN ISO 62	%	1,7
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB / HB

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	85
Elongation at break	DIN EN ISO 527	%	5
Tensile modulus of elasticity	DIN EN ISO 527	MPa	4500
Notched impact strength	DIN EN ISO 179	kJ / m²	4
Shore hardness	DIN EN ISO 868	scale D	86

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	260
Thermal conductivity	DIN 52612-1	W / (m * K)	0,24
Thermal capacity	DIN 52612	kJ / (kg * K)	1,50
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	50
Service temperature, long term	Average	°C	-20 … 120
Service temperature, short term (max.)	Average	°C	200
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	150

	Test Method	Unit	Guideline Value
Volume resistivity	DIN EN 62631-3-1	Ω * cm	10¹³
Surface resistivity	DIN EN 62631-3-2	Ω	10¹⁰
Comparative tracking index	IEC 60112		550
Dielectric constant @ 1MHz	DIN EN IEC 62631-2-1		3,8
Dielectric dissipation factor (1 MHz)	DIN EN IEC 62631-2-1		0,015
Electric strength	IEC 60243-1	kV / mm	25
