Sustadur® PET black
PET
The semi-crystalline PET (Polyethylene Terephthalate)
In contrast to the generally known transparent (amorphous) PET, which is mainly used as a bottle material, Sustadur® PET is characterized in particular by its high mechanical strength, rigidity and hardness. Its very low thermal expansion and good tribological values are also remarkable. Compared to Sustarin® C, resistance to acids is increased, but resistance to hot water is significantly reduced. The natural-colored variant also provides an EU conformity for food contact.
black

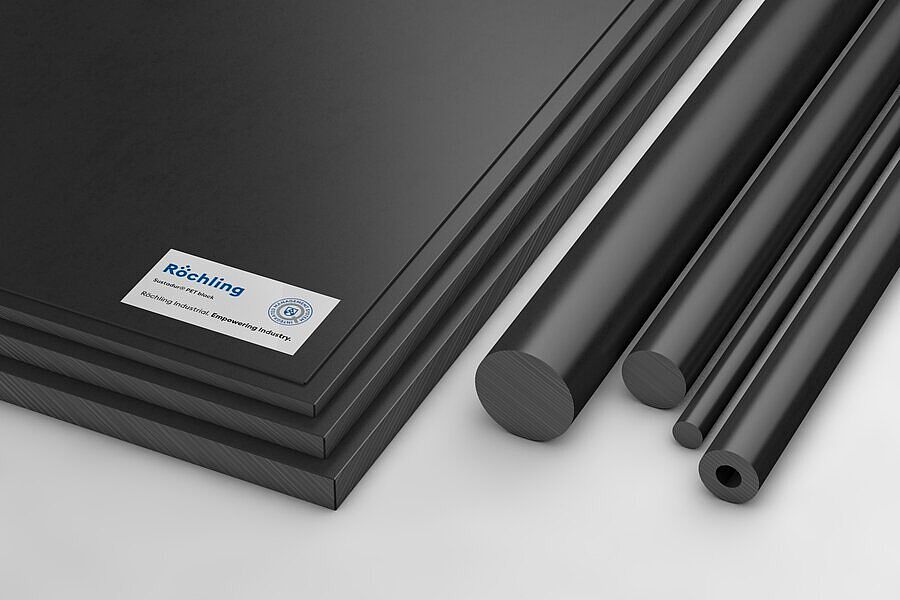

sheetrodtubular bar

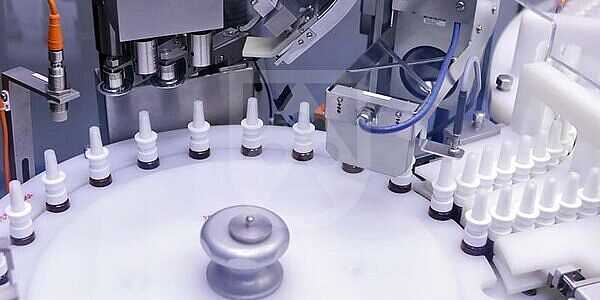

Application Examples
Variants
Technical Specifications Sustadur® PET black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,38 |
| Water absorption | DIN EN ISO 62 | % | 0,3 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 85 |
| Elongation at break | DIN EN ISO 527 | % | 15 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 2 |
| Shore hardness | DIN EN ISO 868 | scale D | 84 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 248 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,28 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,10 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 60 |
| Service temperature, long term | Average | °C | -20 … 115 |
| Service temperature, short term (max.) | Average | °C | 180 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 80 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,4 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,001 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1018 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1016 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | 20 |
