Sustarin® C MDT blue
POM-C
The metal detectable Polyacetal
Sustarin® C MDT is equipped with a metal-detectable filler and can therefore be recognised at any time by appropriate metal detectors, which are used especially in the food industry to check for unwanted foreign bodies. In addition, the blue colouring ensures the best possible optical detection in foodstuffs. The material fulfils the strict requirements of EU Regulation 10/2011 regarding the migration of undesirable ingredients into food.
blue

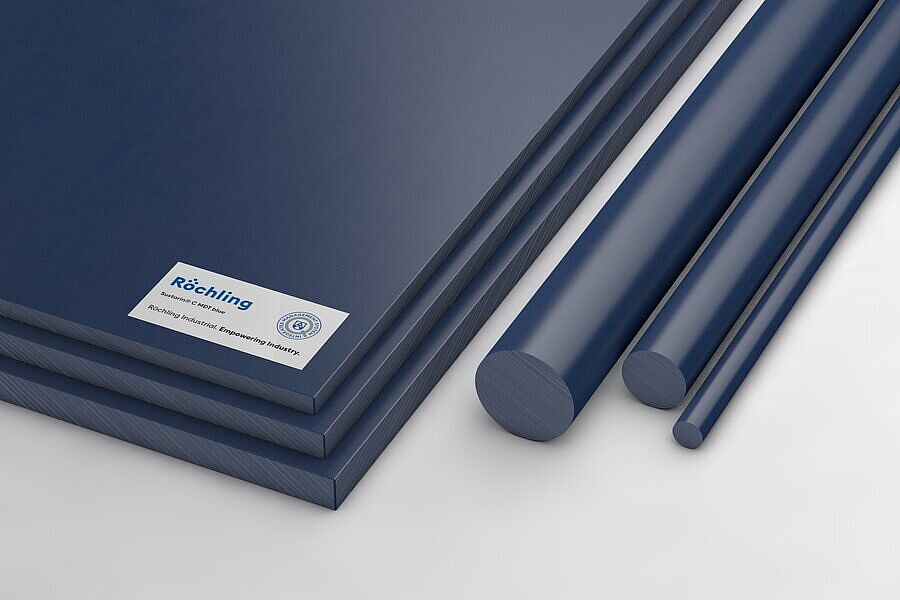

sheetrod
Characteristics
- Metal detectable
- Standard colour: blue
- High hardness
- High rigidity
- Low moisture absorption
- High abrasion resistance
- High mechanical strength
- High stiffness
- Good impact strength
- Low creep tendency
- Good machinability
- Good sliding properties
Industries
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 612975 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 12 x 620 x 3000 mm | 3,000 mm | 620 mm | 12 mm | ||
| No stock item (MOQ) | 660943 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 20 x 620 x 1000 mm | 1,000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 660944 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 20 x 620 x 3000 mm | 3,000 mm | 620 mm | 20 mm | ||
| No stock item (MOQ) | 750081 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 25 x 620 x 3000 mm | 3,000 mm | 620 mm | 25 mm | ||
| No stock item (MOQ) | 762669 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 70 x 3000 mm | 3,000 mm | 70 mm | |||
| No stock item (MOQ) | 762672 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 70 x 1000 mm | 1,000 mm | 70 mm | |||
| No stock item (MOQ) | 808357 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 30 x 620 x 1000 mm | 1,000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 808441 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 60 x 1000 mm | 1,000 mm | 60 mm | |||
| No stock item (MOQ) | 808512 | Sustarin® C metal detectable blue extruded | sheet | sheet | blue | 30 x 620 x 3000 mm | 3,000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 921203 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 60 x 3000 mm | 3,000 mm | 60 mm | |||
| No stock item (MOQ) | 924541 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 90 x 3000 mm | 3,000 mm | 90 mm | |||
| No stock item (MOQ) | 924542 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 90 x 1000 mm | 1,000 mm | 90 mm | |||
| No stock item (MOQ) | 924635 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 40 x 3000 mm | 3,000 mm | 40 mm | |||
| No stock item (MOQ) | 924636 | Sustarin® C metal detectable blue extruded | rod | rod | blue | Ø 40 x 1000 mm | 1,000 mm | 40 mm |
Technical Specifications Sustarin® C MDT blue
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,53 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 65 |
| Elongation at break | DIN EN ISO 527 | % | 25 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 5 |
| Shore hardness | DIN EN ISO 868 | scale D | 82 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 168 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 120 |
| Service temperature, long term | Average | °C | -20 … 90 |
| Service temperature, short term (max.) | Average | °C | 140 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 100 |
