Sustarin® C white
POM-C
cream, similar RAL 9001traffic white, similar RAL 9016white, similar RAL 9010signal white, similar RAL 9003

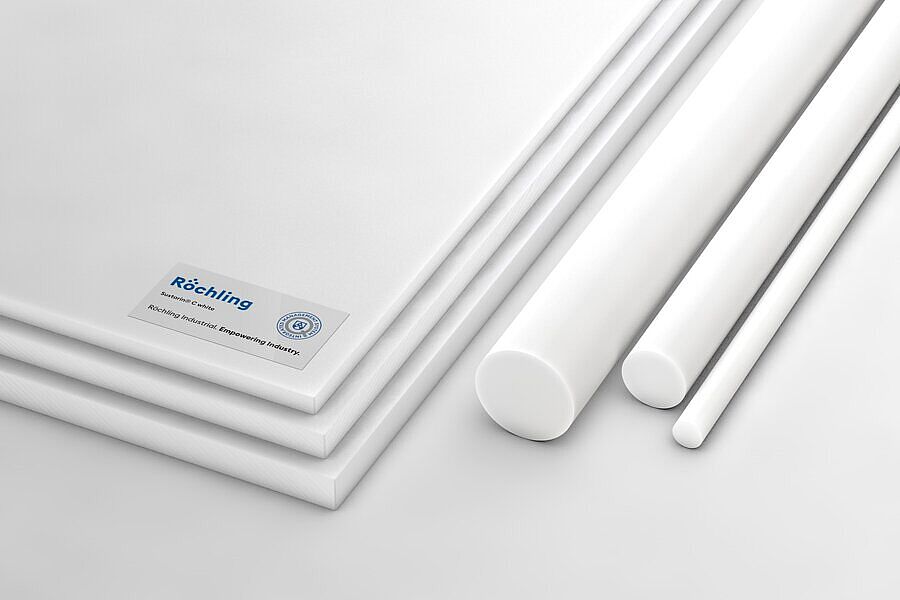

rodsheet
Characteristics
- Chemical resistance
- Low moisture absorption
- High abrasion resistance
- ideal combination of tensile strength, stiffness and impact strength
- Low creep tendency
- Good machinability
- favourable electric and dielectric behaviour
- Good dimensional stability
- Good sliding properties

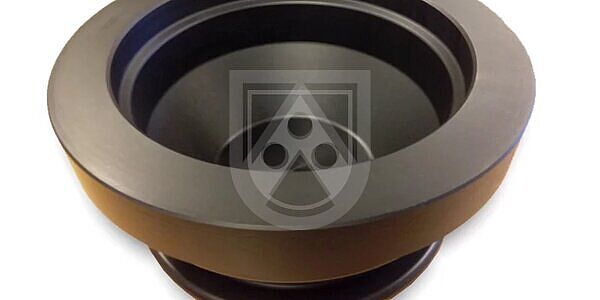

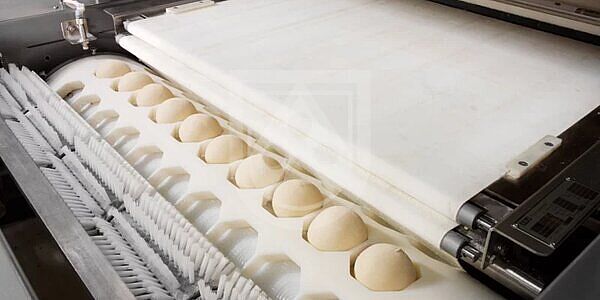

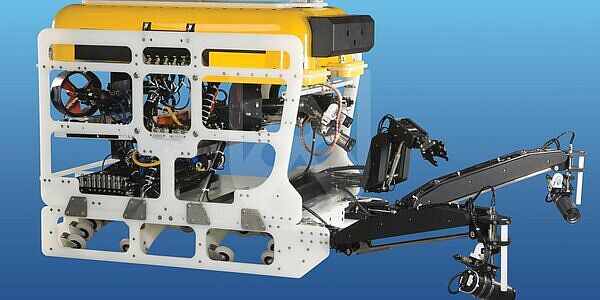

Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 600711 | Sustarin® C white extruded | rod | rod | cream, similar RAL 9001 | Ø 160 x 3000 mm | 3,000 mm | 160 mm | |||
| No stock item (MOQ) | 600873 | Sustarin® C white extruded | rod | rod | traffic white, similar RAL 9016 | Ø 10 x 3000 mm | 3,000 mm | 10 mm | |||
| No stock item (MOQ) | 925314 | Sustarin® C white extruded | rod | rod | white, similar RAL 9010 | Ø 40 x 3000 mm | 3,000 mm | 40 mm | |||
| No stock item (MOQ) | 925315 | Sustarin® C white extruded | rod | rod | white, similar RAL 9010 | Ø 40 x 1000 mm | 1,000 mm | 40 mm | |||
| No stock item (MOQ) | 929797 | Sustarin® C white extruded | sheet | sheet | signal white, similar RAL 9003 | 16 x 1000 x 2000 mm | 2,000 mm | 1,000 mm | 16 mm | ||
| No stock item (MOQ) | 929798 | Sustarin® C white extruded | sheet | sheet | signal white, similar RAL 9003 | 20 x 1000 x 2000 mm | 2,000 mm | 1,000 mm | 20 mm | ||
| No stock item (MOQ) | 929799 | Sustarin® C white extruded | sheet | sheet | signal white, similar RAL 9003 | 25 x 1000 x 2000 mm | 2,000 mm | 1,000 mm | 25 mm | ||
| No stock item (MOQ) | 930277 | Sustarin® C white extruded | sheet | sheet | signal white, similar RAL 9003 | 10 x 1000 x 2000 mm | 2,000 mm | 1,000 mm | 10 mm | ||
| No stock item (MOQ) | 930278 | Sustarin® C white extruded | sheet | sheet | signal white, similar RAL 9003 | 12 x 1000 x 2000 mm | 2,000 mm | 1,000 mm | 12 mm | ||
| No stock item (MOQ) | 931018 | Sustarin® C white extruded | sheet | sheet | signal white, similar RAL 9003 | 12 x 1000 x 1000 mm | 1,000 mm | 1,000 mm | 12 mm | ||
| No stock item (MOQ) | 933780 | Sustarin® C white extruded | rod | rod | white, similar RAL 9010 | Ø 25 x 3000 mm | 3,000 mm | 25 mm |
Technical Specifications Sustarin® C white
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,41 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB / HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 67 |
| Elongation at break | DIN EN ISO 527 | % | 30 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2800 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 6 |
| Shore hardness | DIN EN ISO 868 | scale D | 81 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 165 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,31 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,50 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 110 |
| Service temperature, long term | Average | °C | -50 … 100 |
| Service temperature, short term (max.) | Average | °C | 140 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 110 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,8 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,002 | |
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | 1013 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | 1013 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | 40 |
