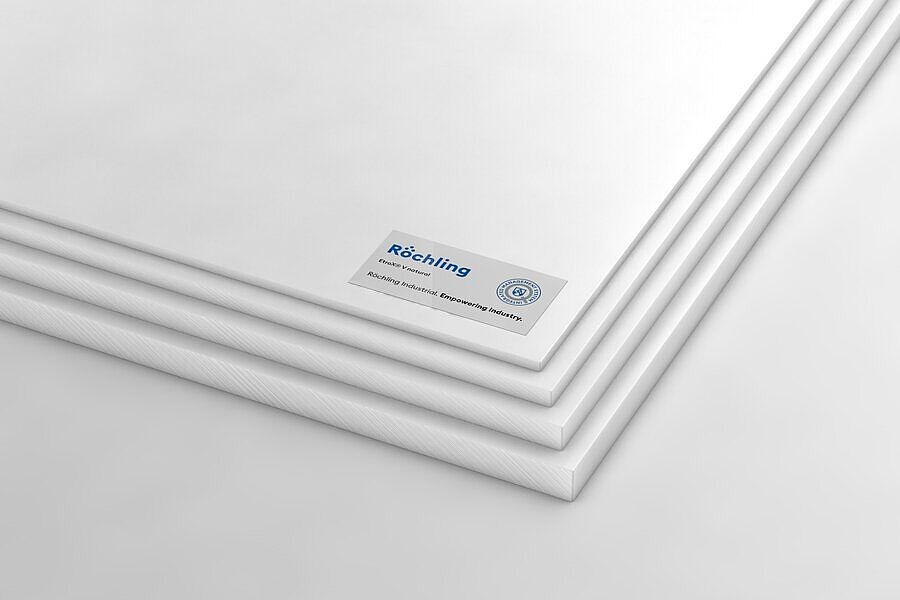

EtroX® V natural
PEEK
natural
sheetrod
Characteristics
- Good machinability
- Low burring
- Low moisture absorption
- Good dimensional stability
Industries
Semiconductor Front-End applications- Semiconductor Back-End applications
- Semiconductor High and low temperature
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 640145 | EtroX® V natural extruded | sheet | sheet | natural | 8 x 500 x 2000 mm | 2,000 mm | 500 mm | 8 mm | ||
| No stock item (MOQ) | 640146 | EtroX® V natural extruded | sheet | sheet | natural | 8 x 500 x 3000 mm | 3,000 mm | 500 mm | 8 mm | ||
| No stock item (MOQ) | 651249 | EtroX® V natural extruded | rod | rod | natural | Ø 50 x 3000 mm | 3,000 mm | 50 mm | |||
| No stock item (MOQ) | 651251 | EtroX® V natural extruded | rod | rod | natural | Ø 50 x 1000 mm | 1,000 mm | 50 mm | |||
| No stock item (MOQ) | 721655 | EtroX® V natural extruded | sheet | sheet | natural | 6 x 500 x 1000 mm | 1,000 mm | 500 mm | 6 mm | ||
| No stock item (MOQ) | 776652 | EtroX® V natural extruded | sheet | sheet | natural | 20 x 500 x 3000 mm | 3,000 mm | 500 mm | 20 mm | ||
| No stock item (MOQ) | 933153 | EtroX® V natural extruded | sheet | sheet | natural | 10 x 500 x 1230 mm | 1,230 mm | 500 mm | 10 mm | ||
| No stock item (MOQ) | 933154 | EtroX® V natural extruded | sheet | sheet | natural | 12 x 500 x 1230 mm | 1,230 mm | 500 mm | 12 mm | ||
| No stock item (MOQ) | 933448 | EtroX® V natural extruded | sheet | sheet | natural | 6 x 620 x 1000 mm | 1,000 mm | 620 mm | 6 mm |
Technical Specifications EtroX® V natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,62 |
| Water absorption | DIN EN ISO 62 | % | 0,15 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 105 |
| Elongation at break | DIN EN ISO 527 | % | 2,5 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 5300 |
| Notched impact strength | ISO 179-1/1eA | kJ / m2 | 1,0 |
| Shore hardness | DIN EN ISO 868 | scale D | 88 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 275 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 341 |
| Thermal conductivity | ISO 22007-4 | W / (m * K) | 0,44 |
| Service temperature, long term | Average | °C | -30 … 250 |
| Service temperature, short term (max.) | Average | °C | 310 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1012 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1012 |
| Comparative tracking index | IEC 60112 | 150 | |
| Dielectric strength | IEC 60243 | kV / mm | 35 |
| Dielectric constant @ 50Hz | DIN EN IEC 62631-2-1 | 4,9 | |
| Dielectric constant @ 1MHz | DIN EN IEC 62631-2-1 | 4,9 | |
| Dielectric dissipation factor (50 Hz) | DIN EN IEC 62631-2-1 | 0,04 | |
| Dielectric dissipation factor (1 MHz) | DIN EN IEC 62631-2-1 | 0,0007 |
