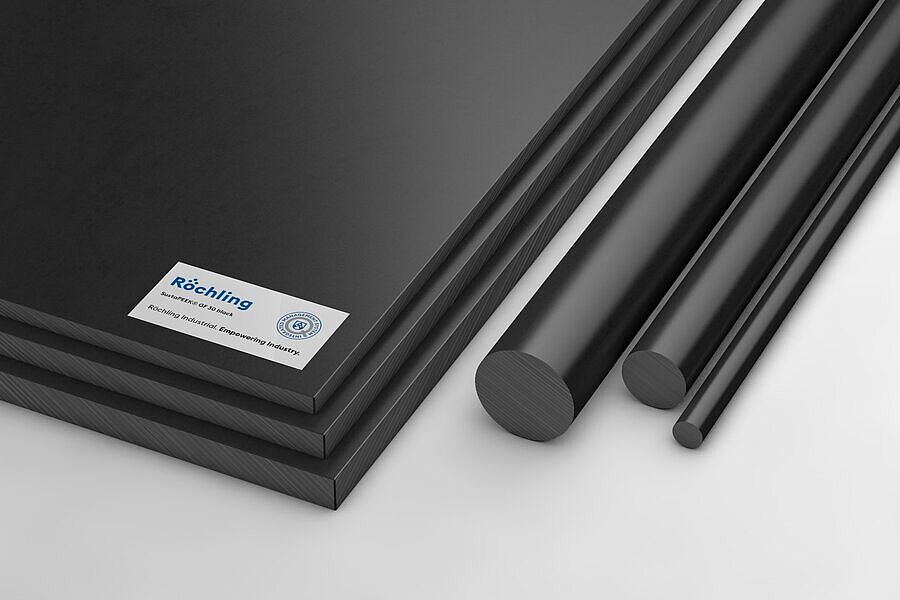

SustaPEEK GF 30 black
PEEK
The Reinforced Premium Material
The addition of 30 % glass fibre increases the mechanical strength and stiffness compared to unfilled PEEK across the entire application temperature range. At the same time, the coefficient of thermal expansion is lower. SustaPEEK GF30 is therefore particularly suitable for mechanically highly stressed, very dimensionally stable components, especially at temperatures above the glass transition temperature (150°C).
black
rod
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 931974 | SustaPEEK GF 30 black extruded | rod | rod | black | Ø 75 x 3000 mm | 3,000 mm | 75 mm | |||
| No stock item (MOQ) | 931975 | SustaPEEK GF 30 black extruded | rod | rod | black | Ø 75 x 1000 mm | 1,000 mm | 75 mm |
Technical Specifications SustaPEEK GF 30 black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,49 |
| Water absorption | DIN EN ISO 62 | % | 0,1 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 80 |
| Elongation at break | DIN EN ISO 527 | % | 5 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 6000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 3,0 |
| Shore hardness | DIN EN ISO 868 | scale D | 89 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 343 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,43 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 30 |
| Service temperature, long term | Average | °C | -20 … 250 |
| Service temperature, short term (max.) | Average | °C | 310 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 315 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,2 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,001 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1013 |
| Comparative tracking index | IEC 60112 | 175 | |
| Dielectric strength | IEC 60243 | kV / mm | 20 |
