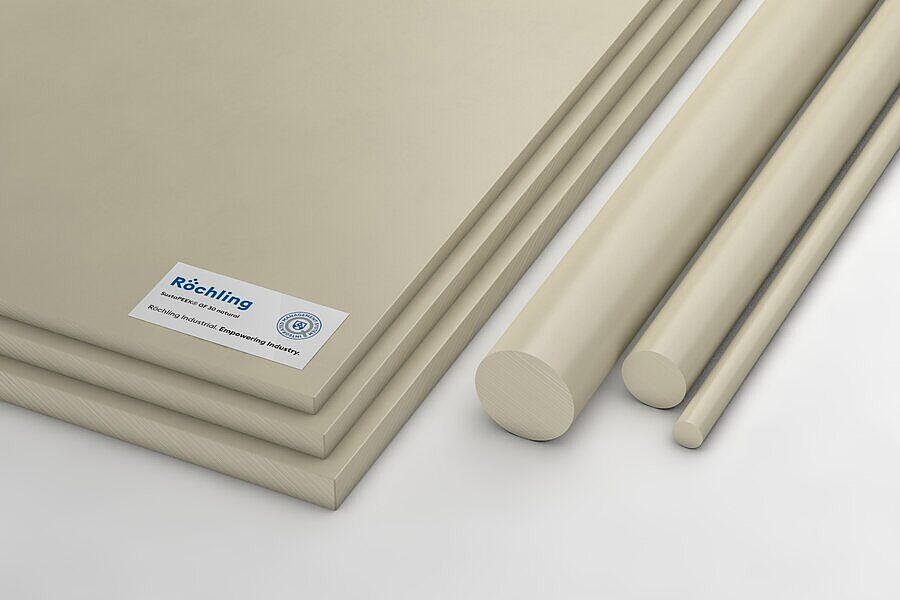

SustaPEEK GF 30 natural

PEEK

The Reinforced Premium Material

The addition of 30 % glass fibre increases the mechanical strength and stiffness compared to unfilled PEEK across the entire application temperature range. At the same time, the coefficient of thermal expansion is lower. SustaPEEK GF30 is therefore particularly suitable for mechanically highly stressed, very dimensionally stable components, especially at temperatures above the glass transition temperature (150°C).



natural
sheetrodtubular bar
QR-Code

Characteristics

  • High rigidity
  • Good dimensional stability
  • High continuous service temperature
  • Low creep tendency

Industries

Variants

Show product in Webshop
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		102351SustaPEEK GF 30 natural extruded sheet sheet natural20 x 620 x 1000 mm 1,000 mm 620 mm 20 mm
No stock item (MOQ)		102353SustaPEEK GF 30 natural extruded sheet sheet natural16 x 620 x 1000 mm 1,000 mm 620 mm 16 mm
No stock item (MOQ)		102354SustaPEEK GF 30 natural extruded sheet sheet natural25 x 620 x 1000 mm 1,000 mm 620 mm 25 mm
Stock item (no MOQ)		102365SustaPEEK GF 30 natural extruded sheet sheet natural30 x 620 x 3000 mm 3,000 mm 620 mm 30 mm
No stock item (MOQ)		135179SustaPEEK GF 30 natural extruded rod rod naturalØ 10 x 1000 mm 1,000 mm 10 mm
No stock item (MOQ)		135180SustaPEEK GF 30 natural extruded rod rod naturalØ 20 x 1000 mm 1,000 mm 20 mm
No stock item (MOQ)		135181SustaPEEK GF 30 natural extruded rod rod naturalØ 30 x 1000 mm 1,000 mm 30 mm
No stock item (MOQ)		135182SustaPEEK GF 30 natural extruded rod rod naturalØ 40 x 1000 mm 1,000 mm 40 mm
No stock item (MOQ)		135183SustaPEEK GF 30 natural extruded rod rod naturalØ 50 x 1000 mm 1,000 mm 50 mm
No stock item (no MOQ)		135184SustaPEEK GF 30 natural extruded rod rod naturalØ 10 x 3000 mm 3,000 mm 10 mm
Stock item (no MOQ)		135185SustaPEEK GF 30 natural extruded rod rod naturalØ 20 x 3000 mm 3,000 mm 20 mm
Stock item (no MOQ)		135186SustaPEEK GF 30 natural extruded rod rod naturalØ 30 x 3000 mm 3,000 mm 30 mm
Stock item (no MOQ)		135187SustaPEEK GF 30 natural extruded rod rod naturalØ 40 x 3000 mm 3,000 mm 40 mm
Stock item (no MOQ)		135188SustaPEEK GF 30 natural extruded rod rod naturalØ 50 x 3000 mm 3,000 mm 50 mm
No stock item (MOQ)		135192SustaPEEK GF 30 natural extruded rod rod naturalØ 25 x 1000 mm 1,000 mm 25 mm
Stock item (no MOQ)		135193SustaPEEK GF 30 natural extruded rod rod naturalØ 25 x 3000 mm 3,000 mm 25 mm
No stock item (MOQ)		135200SustaPEEK GF 30 natural extruded rod rod naturalØ 16 x 1000 mm 1,000 mm 16 mm
Stock item (no MOQ)		135201SustaPEEK GF 30 natural extruded rod rod naturalØ 16 x 3000 mm 3,000 mm 16 mm
No stock item (MOQ)		135204SustaPEEK GF 30 natural extruded rod rod naturalØ 60 x 1000 mm 1,000 mm 60 mm
No stock item (no MOQ)		135205SustaPEEK GF 30 natural extruded rod rod naturalØ 60 x 3000 mm 3,000 mm 60 mm
No stock item (MOQ)		135206SustaPEEK GF 30 natural extruded rod rod naturalØ 70 x 1000 mm 1,000 mm 70 mm
No stock item (MOQ)		135208SustaPEEK GF 30 natural extruded rod rod naturalØ 80 x 1000 mm 1,000 mm 80 mm
Stock item (no MOQ)		135209SustaPEEK GF 30 natural extruded rod rod naturalØ 80 x 3000 mm 3,000 mm 80 mm
No stock item (no MOQ)		135241SustaPEEK GF 30 natural extruded rod rod naturalØ 35 x 3000 mm 3,000 mm 35 mm
No stock item (MOQ)		600825SustaPEEK GF 30 natural extruded rod rod naturalØ 18 x 3000 mm 3,000 mm 18 mm
No stock item (MOQ)		600827SustaPEEK GF 30 natural extruded rod rod naturalØ 28 x 1000 mm 1,000 mm 28 mm
No stock item (MOQ)		600829SustaPEEK GF 30 natural extruded rod rod naturalØ 45 x 3000 mm 3,000 mm 45 mm
No stock item (MOQ)		625399SustaPEEK GF 30 natural extruded rod rod naturalØ 80 x 2000 mm 2,000 mm 80 mm
No stock item (MOQ)		625595SustaPEEK GF 30 natural extruded tubular bar tubular bar naturalØ 160/120 x 1000 mm 1,000 mm 160 mm 120 mm
No stock item (MOQ)		636658SustaPEEK GF 30 natural extruded sheet sheet natural25 x 500 x 3000 mm 3,000 mm 500 mm 25 mm
No stock item (MOQ)		636662SustaPEEK GF 30 natural extruded sheet sheet natural25 x 500 x 1000 mm 1,000 mm 500 mm 25 mm
No stock item (MOQ)		647856SustaPEEK GF 30 natural extruded rod rod naturalØ 20 x 2000 mm 2,000 mm 20 mm
Stock item (no MOQ)		650635SustaPEEK GF 30 natural extruded sheet sheet natural16 x 620 x 3000 mm 3,000 mm 620 mm 16 mm
No stock item (MOQ)		653529SustaPEEK GF 30 natural extruded sheet sheet natural20 x 500 x 3000 mm 3,000 mm 500 mm 20 mm
No stock item (MOQ)		657223SustaPEEK GF 30 natural extruded sheet sheet natural16 x 500 x 1000 mm 1,000 mm 500 mm 16 mm
No stock item (MOQ)		660275SustaPEEK GF 30 natural extruded rod rod naturalØ 18 x 1000 mm 1,000 mm 18 mm
No stock item (MOQ)		663893SustaPEEK GF 30 natural extruded sheet sheet natural10 x 620 x 2000 mm 2,000 mm 620 mm 10 mm
No stock item (MOQ)		664517SustaPEEK GF 30 natural extruded sheet sheet natural12 x 500 x 3000 mm 3,000 mm 500 mm 12 mm
No stock item (MOQ)		664563SustaPEEK GF 30 natural extruded sheet sheet natural12 x 500 x 1000 mm 1,000 mm 500 mm 12 mm
No stock item (MOQ)		666013SustaPEEK GF 30 natural extruded sheet sheet natural40 x 620 x 2000 mm 2,000 mm 620 mm 40 mm
No stock item (MOQ)		671001SustaPEEK GF 30 natural extruded rod rod naturalØ 30 x 2000 mm 2,000 mm 30 mm
No stock item (MOQ)		677234SustaPEEK GF 30 natural extruded sheet sheet natural8 x 620 x 1000 mm 1,000 mm 620 mm 8 mm
No stock item (MOQ)		684287SustaPEEK GF 30 natural extruded rod rod naturalØ 90 x 2000 mm 2,000 mm 90 mm
No stock item (MOQ)		684537SustaPEEK GF 30 natural extruded rod rod naturalØ 10 x 2000 mm 2,000 mm 10 mm
No stock item (MOQ)		690651SustaPEEK GF 30 natural extruded sheet sheet natural10 x 500 x 1000 mm 1,000 mm 500 mm 10 mm
No stock item (MOQ)		711172SustaPEEK GF 30 natural extruded sheet sheet natural30 x 620 x 2000 mm 2,000 mm 620 mm 30 mm
No stock item (MOQ)		727949SustaPEEK GF 30 natural extruded sheet sheet natural20 x 500 x 1000 mm 1,000 mm 500 mm 20 mm
No stock item (MOQ)		743045SustaPEEK GF 30 natural extruded rod rod naturalØ 25 x 2000 mm 2,000 mm 25 mm
No stock item (MOQ)		743241SustaPEEK GF 30 natural extruded rod rod naturalØ 50 x 2000 mm 2,000 mm 50 mm
No stock item (MOQ)		800014SustaPEEK GF 30 natural extruded rod rod naturalØ 35 x 1000 mm 1,000 mm 35 mm
Stock item (no MOQ)		803599SustaPEEK GF 30 natural extruded sheet sheet natural20 x 620 x 3000 mm 3,000 mm 620 mm 20 mm
Stock item (no MOQ)		803703SustaPEEK GF 30 natural extruded sheet sheet natural25 x 620 x 3000 mm 3,000 mm 620 mm 25 mm
Stock item (no MOQ)		803704SustaPEEK GF 30 natural extruded sheet sheet natural12 x 620 x 3000 mm 3,000 mm 620 mm 12 mm
No stock item (MOQ)		803710SustaPEEK GF 30 natural extruded rod rod naturalØ 36 x 3000 mm 3,000 mm 36 mm
No stock item (no MOQ)		804278SustaPEEK GF 30 natural extruded sheet sheet natural10 x 620 x 3000 mm 3,000 mm 620 mm 10 mm
No stock item (MOQ)		804279SustaPEEK GF 30 natural extruded sheet sheet natural10 x 620 x 1000 mm 1,000 mm 620 mm 10 mm
No stock item (MOQ)		804827SustaPEEK GF 30 natural extruded rod rod naturalØ 36 x 1000 mm 1,000 mm 36 mm
No stock item (MOQ)		805408SustaPEEK GF 30 natural extruded sheet sheet natural50 x 620 x 3000 mm 3,000 mm 620 mm 50 mm
No stock item (MOQ)		805549SustaPEEK GF 30 natural extruded sheet sheet natural40 x 620 x 3000 mm 3,000 mm 620 mm 40 mm
No stock item (MOQ)		805658SustaPEEK GF 30 natural extruded sheet sheet natural40 x 620 x 1000 mm 1,000 mm 620 mm 40 mm
No stock item (MOQ)		805746SustaPEEK GF 30 natural extruded sheet sheet natural35 x 620 x 1000 mm 1,000 mm 620 mm 35 mm
No stock item (MOQ)		806319SustaPEEK GF 30 natural extruded rod rod naturalØ 15 x 3000 mm 3,000 mm 15 mm
No stock item (MOQ)		806457SustaPEEK GF 30 natural extruded sheet sheet natural50 x 620 x 1000 mm 1,000 mm 620 mm 50 mm
No stock item (MOQ)		807712SustaPEEK GF 30 natural extruded sheet sheet natural8 x 620 x 3000 mm 3,000 mm 620 mm 8 mm
No stock item (MOQ)		808958SustaPEEK GF 30 natural extruded sheet sheet natural25 x 620 x 2000 mm 2,000 mm 620 mm 25 mm
No stock item (MOQ)		921169SustaPEEK GF 30 natural extruded sheet sheet natural12 x 620 x 1000 mm 1,000 mm 620 mm 12 mm
No stock item (MOQ)		922293SustaPEEK GF 30 natural extruded rod rod naturalØ 90 x 1000 mm 1,000 mm 90 mm
No stock item (MOQ)		922660SustaPEEK GF 30 natural extruded sheet sheet natural8 x 500 x 3000 mm 3,000 mm 500 mm 8 mm
No stock item (MOQ)		923245SustaPEEK GF 30 natural extruded sheet sheet natural10 x 500 x 3000 mm 3,000 mm 500 mm 10 mm
No stock item (MOQ)		927290SustaPEEK GF 30 natural extruded rod rod naturalØ 90 x 3000 mm 3,000 mm 90 mm
No stock item (MOQ)		927363SustaPEEK GF 30 natural extruded sheet sheet natural30 x 620 x 1000 mm 1,000 mm 620 mm 30 mm
No stock item (MOQ)		933932SustaPEEK GF 30 natural extruded sheet sheet natural20 x 620 x 2000 mm 2,000 mm 620 mm 20 mm
No stock item (MOQ)		934280SustaPEEK GF 30 natural extruded rod rod naturalØ 22 x 3000 mm 3,000 mm 22 mm
No stock item (MOQ)		934406SustaPEEK GF 30 natural extruded sheet sheet natural8 x 500 x 1000 mm 1,000 mm 500 mm 8 mm
No stock item (MOQ)		934434SustaPEEK GF 30 natural extruded rod rod naturalØ 60 x 2000 mm 2,000 mm 60 mm

Technical Specifications SustaPEEK GF 30 natural

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31,51
Water absorptionDIN EN ISO 62%0,1
Flammability (Thickness 3 mm / 6 mm)UL 94V0 / V0

Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa80
Elongation at breakDIN EN ISO 527%5
Tensile modulus of elasticityDIN EN ISO 527MPa6000
Notched impact strengthDIN EN ISO 179kJ / m23,0
Shore hardnessDIN EN ISO 868scale D89

Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C343
Thermal conductivityDIN 52612-1W / (m * K)0,43
Coefficient of linear thermal expansionDIN 5375210-6 / K30
Service temperature, long termAverage°C-20 … 250
Service temperature, short term (max.)Average°C310
Heat deflection temperatureDIN EN ISO 75, Verf. A, HDT°C315

Test MethodUnitGuideline Value
Dielectric constantIEC 602503,2
Dielectric dissipation factor (50 Hz)IEC 602500,001
Volume resistivityDIN EN 62631-3-1Ω * cm1014
Surface resistivityDIN EN 62631-3-2Ω1013
Comparative tracking indexIEC 60112175
Dielectric strengthIEC 60243kV / mm20
