SustaPEEK MG natural

PEEK

Our premium material especially for medical devices

SustaPEEK MG was developed for the demanding requirements of the healthcare industry in particular medical devices. As a material of highest purity with exceptional resistance to sterilisation, it is e.g. ideal for surgical instruments. Thanks to its very high strength and rigidity, SustaPEEK MG ensures reliable performance in all applications. It retains its shape and property profile even under extreme conditions. With its excellent temperature stability of up to 250 °C in continuous use, it offers reliable performance.

natural

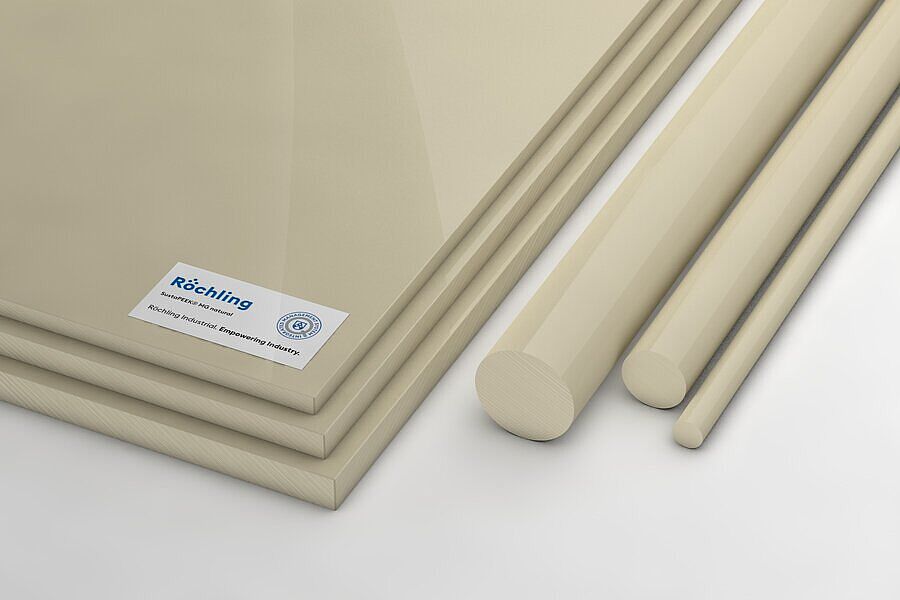

sheetrod

Characteristics

High purity
Good sterilisation resistance
ISO 10993-5 tested on semi-finished product
High Strength
High rigidity
High-temperature stable up to 250°C in continuous operation
Chemical resistant

Industries

Healthcare

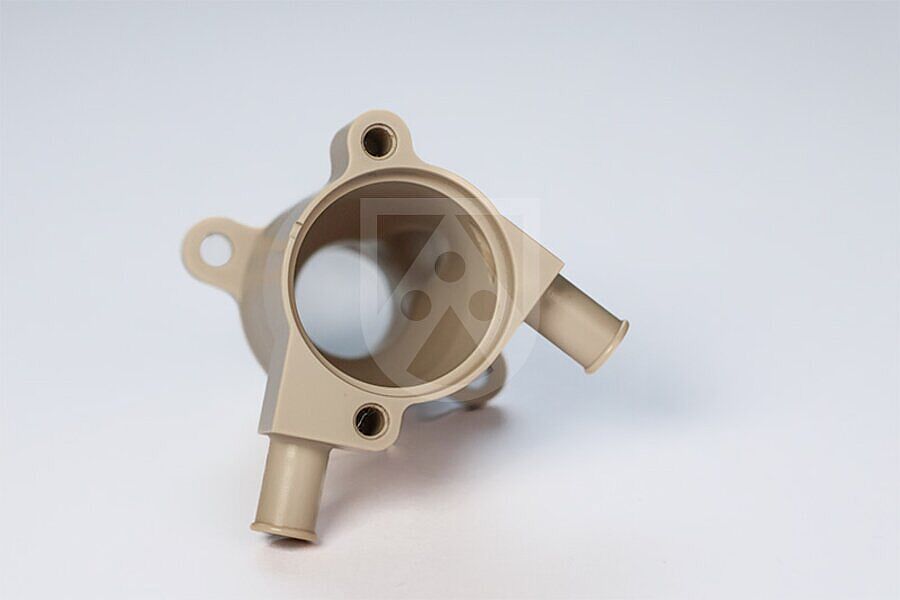

Application Examples

乳房活检装置

乳腺活检装置根据客户的图纸进行精密加工，以满足严格的公差要求。根据 DIN EN ISO 10993-5 标准，它具有出色的清洁和灭菌程序以及生物相容性，并以 SustaPEEK MG 材料制成的装配组形式供应。

手术刀手柄

挑战：能经受消毒考验，需要具备高品质手感和高品质表面，加工公差要求严格 SustaPEEK^® MG 能够被客户选用，是因为具备以下卓越特性：良好的制造稳定性（组件复杂，公差要求严格）良好的耐热性能良好的热学性能良好的耐化学性

Handle of an ultrasonic probe

Handle of an ultrasonic probe machined from SustaPEEK MG.

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Armin Reuner - Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	600688	SustaPEEK MG natural extruded	sheet	sheet	natural	10 x 620 x 1000 mm	1,000 mm	620 mm	10 mm
No stock item (MOQ)	601306	SustaPEEK MG natural extruded	rod	rod	natural	Ø 100 x 1000 mm	1,000 mm		100 mm
No stock item (MOQ)	601944	SustaPEEK MG natural extruded	sheet	sheet	natural	20 x 620 x 1000 mm	1,000 mm	620 mm	20 mm
No stock item (MOQ)	605977	SustaPEEK MG natural extruded	rod	rod	natural	Ø 55 x 1000 mm	1,000 mm		55 mm
No stock item (MOQ)	615247	SustaPEEK MG natural extruded	sheet	sheet	natural	5 x 620 x 1000 mm	1,000 mm	620 mm	5 mm
No stock item (MOQ)	629918	SustaPEEK MG natural extruded	rod	rod	natural	Ø 200 x 1000 mm	1,000 mm		200 mm
No stock item (MOQ)	650387	SustaPEEK MG natural extruded	rod	rod	natural	Ø 36 x 2000 mm	2,000 mm		36 mm
No stock item (MOQ)	660888	SustaPEEK MG natural extruded	rod	rod	natural	Ø 60 x 1000 mm	1,000 mm		60 mm
Stock item (no MOQ)	673721	SustaPEEK MG natural extruded	sheet	sheet	natural	8 x 620 x 3000 mm	3,000 mm	620 mm	8 mm
No stock item (MOQ)	673723	SustaPEEK MG natural extruded	sheet	sheet	natural	8 x 620 x 1000 mm	1,000 mm	620 mm	8 mm
No stock item (MOQ)	673788	SustaPEEK MG natural extruded	sheet	sheet	natural	12 x 620 x 3000 mm	3,000 mm	620 mm	12 mm
No stock item (MOQ)	673789	SustaPEEK MG natural extruded	sheet	sheet	natural	12 x 620 x 1000 mm	1,000 mm	620 mm	12 mm
No stock item (MOQ)	760138	SustaPEEK MG natural extruded	rod	rod	natural	Ø 110 x 1000 mm	1,000 mm		110 mm
No stock item (MOQ)	760139	SustaPEEK MG natural extruded	rod	rod	natural	Ø 110 x 3000 mm	3,000 mm		110 mm
No stock item (MOQ)	765343	SustaPEEK MG natural extruded	sheet	sheet	natural	16 x 620 x 2000 mm	2,000 mm	620 mm	16 mm
Stock item (no MOQ)	806297	SustaPEEK MG natural extruded	rod	rod	natural	Ø 32 x 3000 mm	3,000 mm		32 mm
No stock item (MOQ)	806416	SustaPEEK MG natural extruded	sheet	sheet	natural	20 x 620 x 3000 mm	3,000 mm	620 mm	20 mm
No stock item (MOQ)	806417	SustaPEEK MG natural extruded	sheet	sheet	natural	16 x 620 x 3000 mm	3,000 mm	620 mm	16 mm
No stock item (MOQ)	806419	SustaPEEK MG natural extruded	sheet	sheet	natural	16 x 620 x 1000 mm	1,000 mm	620 mm	16 mm
No stock item (MOQ)	806502	SustaPEEK MG natural extruded	rod	rod	natural	Ø 10 x 3000 mm	3,000 mm		10 mm
No stock item (MOQ)	806503	SustaPEEK MG natural extruded	rod	rod	natural	Ø 10 x 1000 mm	1,000 mm		10 mm
No stock item (no MOQ)	806506	SustaPEEK MG natural extruded	rod	rod	natural	Ø 40 x 3000 mm	3,000 mm		40 mm
No stock item (MOQ)	806507	SustaPEEK MG natural extruded	rod	rod	natural	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (no MOQ)	806596	SustaPEEK MG natural extruded	rod	rod	natural	Ø 16 x 3000 mm	3,000 mm		16 mm
No stock item (MOQ)	806599	SustaPEEK MG natural extruded	sheet	sheet	natural	10 x 620 x 3000 mm	3,000 mm	620 mm	10 mm
No stock item (no MOQ)	806606	SustaPEEK MG natural extruded	rod	rod	natural	Ø 20 x 3000 mm	3,000 mm		20 mm
No stock item (MOQ)	806607	SustaPEEK MG natural extruded	rod	rod	natural	Ø 20 x 1000 mm	1,000 mm		20 mm
No stock item (MOQ)	806608	SustaPEEK MG natural extruded	rod	rod	natural	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (no MOQ)	806609	SustaPEEK MG natural extruded	rod	rod	natural	Ø 25 x 3000 mm	3,000 mm		25 mm
Stock item (no MOQ)	806610	SustaPEEK MG natural extruded	rod	rod	natural	Ø 30 x 3000 mm	3,000 mm		30 mm
No stock item (MOQ)	806611	SustaPEEK MG natural extruded	rod	rod	natural	Ø 30 x 1000 mm	1,000 mm		30 mm
No stock item (no MOQ)	806635	SustaPEEK MG natural extruded	sheet	sheet	natural	6 x 620 x 3000 mm	3,000 mm	620 mm	6 mm
Stock item (no MOQ)	806637	SustaPEEK MG natural extruded	sheet	sheet	natural	30 x 620 x 3000 mm	3,000 mm	620 mm	30 mm
No stock item (no MOQ)	806642	SustaPEEK MG natural extruded	rod	rod	natural	Ø 50 x 3000 mm	3,000 mm		50 mm
No stock item (no MOQ)	806643	SustaPEEK MG natural extruded	rod	rod	natural	Ø 60 x 3000 mm	3,000 mm		60 mm
No stock item (MOQ)	806688	SustaPEEK MG natural extruded	rod	rod	natural	Ø 8 x 3000 mm	3,000 mm		8 mm
No stock item (MOQ)	806689	SustaPEEK MG natural extruded	rod	rod	natural	Ø 12 x 3000 mm	3,000 mm		12 mm
No stock item (MOQ)	806697	SustaPEEK MG natural extruded	sheet	sheet	natural	25 x 620 x 1000 mm	1,000 mm	620 mm	25 mm
No stock item (MOQ)	806698	SustaPEEK MG natural extruded	sheet	sheet	natural	30 x 620 x 1000 mm	1,000 mm	620 mm	30 mm
No stock item (MOQ)	806699	SustaPEEK MG natural extruded	sheet	sheet	natural	6 x 620 x 1000 mm	1,000 mm	620 mm	6 mm
No stock item (MOQ)	806924	SustaPEEK MG natural extruded	rod	rod	natural	Ø 6 x 3000 mm	3,000 mm		6 mm
No stock item (MOQ)	806925	SustaPEEK MG natural extruded	rod	rod	natural	Ø 45 x 3000 mm	3,000 mm		45 mm
No stock item (MOQ)	806926	SustaPEEK MG natural extruded	rod	rod	natural	Ø 70 x 3000 mm	3,000 mm		70 mm
No stock item (no MOQ)	806927	SustaPEEK MG natural extruded	rod	rod	natural	Ø 80 x 3000 mm	3,000 mm		80 mm
No stock item (MOQ)	807276	SustaPEEK MG natural extruded	rod	rod	natural	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	807608	SustaPEEK MG natural extruded	rod	rod	natural	Ø 45 x 1000 mm	1,000 mm		45 mm
No stock item (MOQ)	808145	SustaPEEK MG natural extruded	rod	rod	natural	Ø 12 x 1000 mm	1,000 mm		12 mm
No stock item (MOQ)	808190	SustaPEEK MG natural extruded	rod	rod	natural	Ø 36 x 3000 mm	3,000 mm		36 mm
No stock item (MOQ)	808513	SustaPEEK MG natural extruded	rod	rod	natural	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (MOQ)	808686	SustaPEEK MG natural extruded	rod	rod	natural	Ø 6 x 1000 mm	1,000 mm		6 mm
No stock item (MOQ)	809019	SustaPEEK MG natural extruded	rod	rod	natural	Ø 16 x 1000 mm	1,000 mm		16 mm
No stock item (MOQ)	809020	SustaPEEK MG natural extruded	rod	rod	natural	Ø 32 x 1000 mm	1,000 mm		32 mm
No stock item (MOQ)	809170	SustaPEEK MG natural extruded	sheet	sheet	natural	5 x 620 x 3000 mm	3,000 mm	620 mm	5 mm
No stock item (MOQ)	810172	SustaPEEK MG natural extruded	rod	rod	natural	Ø 120 x 1000 mm	1,000 mm		120 mm
No stock item (MOQ)	810173	SustaPEEK MG natural extruded	rod	rod	natural	Ø 120 x 3000 mm	3,000 mm		120 mm
No stock item (MOQ)	921774	SustaPEEK MG natural extruded	rod	rod	natural	Ø 80 x 1000 mm	1,000 mm		80 mm
No stock item (MOQ)	924805	SustaPEEK MG natural extruded	rod	rod	natural	Ø 8 x 1000 mm	1,000 mm		8 mm
Stock item (no MOQ)	926450	SustaPEEK MG natural extruded	rod	rod	natural	Ø 100 x 3000 mm	3,000 mm		100 mm
No stock item (MOQ)	931215	SustaPEEK MG natural extruded	rod	rod	natural	Ø 36 x 1000 mm	1,000 mm		36 mm
No stock item (no MOQ)	931249	SustaPEEK MG natural extruded	sheet	sheet	natural	40 x 620 x 3000 mm	3,000 mm	620 mm	40 mm
No stock item (MOQ)	931373	SustaPEEK MG natural extruded	sheet	sheet	natural	40 x 620 x 1000 mm	1,000 mm	620 mm	40 mm

Technical Specifications SustaPEEK MG natural

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,31
Water absorption	DIN EN ISO 62	%	0,2
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	110
Elongation at break	DIN EN ISO 527	%	20
Tensile modulus of elasticity	DIN EN ISO 527	MPa	4000
Shore hardness	DIN EN ISO 868	scale D	88

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	343
Thermal conductivity	DIN 52612-1	W / (m * K)	0,25
Thermal capacity	DIN 52612	kJ / (kg * K)	1,34
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	50
Service temperature, long term	Average	°C	-60 … 250
Service temperature, short term (max.)	Average	°C	310
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	152

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,2
Dielectric dissipation factor (50 Hz)	IEC 60250		0,001
Volume resistivity	DIN EN 62631-3-1	Ω * cm	4,9 * 10¹⁶
Surface resistivity	DIN EN 62631-3-2	Ω	10¹⁸
Dielectric strength	IEC 60243	kV / mm	20
