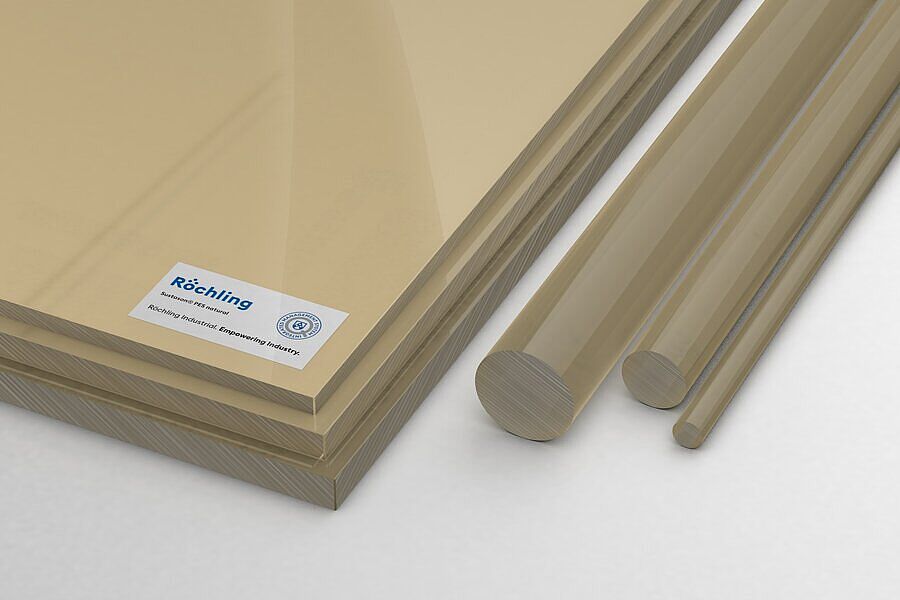

Sustason® PES natural
PES
Amorphous High Performance Material
Due to its transparency, Polyethersulphone, abbreviated as PESU instead of PES according to the latest standards, is suitable for applications such as sight glasses and media-carrying components in laboratories. Compared to Polysulphone (PSU), the plastic has a glass transition temperature that is 35°C higher at 225°C and thus significantly higher strength in the temperature range between 160 and 190°C. Its stress crack sensitivity is lower than that of PC. Its amber transparency is higher than that of PEI, but lower than that of PSU.
natural
rodsheet
Characteristics
- Flame retardant
- Self-extinguishing
- Microwaveable
- Low smoke development
- Good resistance against high energy radiation
- Low radiation absorption in the microwave range
- High tensile strength
- High cold impact strength
- Good machinability
- good adhesive properties
- Good weldability
- High continuous service temperature
- Electrically insulating
- Good dielectric properties
- Good thermoformability
- Good dimensional stability
Industries
烘焙店和糖果店- 肉类、鱼类和禽类加工
- 饮料行业
- 食品行业
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 136005 | Sustason® PES natural extruded | rod | rod | natural | Ø 60 x 3000 mm | 3,000 mm | 60 mm | |||
| No stock item (MOQ) | 136008 | Sustason® PES natural extruded | rod | rod | natural | Ø 10 x 3000 mm | 3,000 mm | 10 mm | |||
| No stock item (MOQ) | 709191 | Sustason® PES natural extruded | sheet | sheet | natural | 25 x 620 x 1000 mm | 1,000 mm | 620 mm | 25 mm | ||
| No stock item (MOQ) | 737129 | Sustason® PES natural extruded | rod | rod | natural | Ø 30 x 3000 mm | 3,000 mm | 30 mm | |||
| No stock item (MOQ) | 737131 | Sustason® PES natural extruded | rod | rod | natural | Ø 30 x 1000 mm | 1,000 mm | 30 mm | |||
| No stock item (MOQ) | 803582 | Sustason® PES natural extruded | rod | rod | natural | Ø 60 x 1000 mm | 1,000 mm | 60 mm | |||
| No stock item (MOQ) | 804148 | Sustason® PES natural extruded | sheet | sheet | natural | 30 x 620 x 1000 mm | 1,000 mm | 620 mm | 30 mm | ||
| No stock item (MOQ) | 806076 | Sustason® PES natural extruded | rod | rod | natural | Ø 10 x 1000 mm | 1,000 mm | 10 mm | |||
| No stock item (MOQ) | 809706 | Sustason® PES natural extruded | rod | rod | natural | Ø 70 x 3000 mm | 3,000 mm | 70 mm | |||
| No stock item (MOQ) | 809707 | Sustason® PES natural extruded | rod | rod | natural | Ø 70 x 1000 mm | 1,000 mm | 70 mm | |||
| No stock item (MOQ) | 859348 | Sustason® PES natural extruded | sheet | sheet | natural | 10 x 620 x 2000 mm | 2,000 mm | 620 mm | 10 mm | ||
| No stock item (MOQ) | 921549 | Sustason® PES natural extruded | sheet | sheet | natural | 10 x 620 x 3000 mm | 3,000 mm | 620 mm | 10 mm | ||
| No stock item (MOQ) | 925311 | Sustason® PES natural extruded | sheet | sheet | natural | 10 x 620 x 1000 mm | 1,000 mm | 620 mm | 10 mm |
Technical Specifications Sustason® PES natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,37 |
| Water absorption | DIN EN ISO 62 | % | 0,7 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 90 |
| Elongation at break | DIN EN ISO 527 | % | 15 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2700 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 7 |
| Shore hardness | DIN EN ISO 868 | scale D | 85 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | - |
| Glass transition temperature | ISO 11357-3 | °C | 225 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,18 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,10 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 55 |
| Service temperature, long term | Average | °C | -50 … 180 |
| Service temperature, short term (max.) | Average | °C | 220 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 200 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,9 | |
| Dielectric dissipation factor (50 Hz) | IEC 60250 | 0,002 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | 1018 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | 1014 |
| Comparative tracking index | IEC 60112 | 150 | |
| Dielectric strength | IEC 60243 | kV / mm | 25 |
