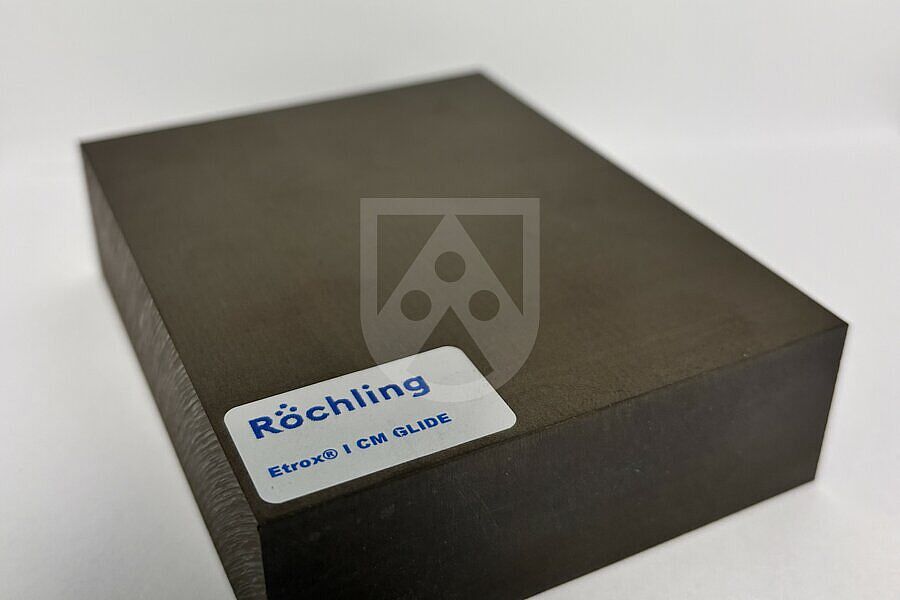

EtroX® I CM GLIDE
PI
The premium product for highly demanding applications with sliding properties
Our premium material EtroX® I CM GLIDE was specially developed to meet the high requirements of leading industrial sectors. As a modified polyimide, it can withstand particularly high temperatures and has especially good wear resistance and sliding properties.
EtroX® I CM GLIDE can be used to construct components that have clear advantages over other thermoplastics or even metals, even at high temperatures of more than 250 °C.
natural

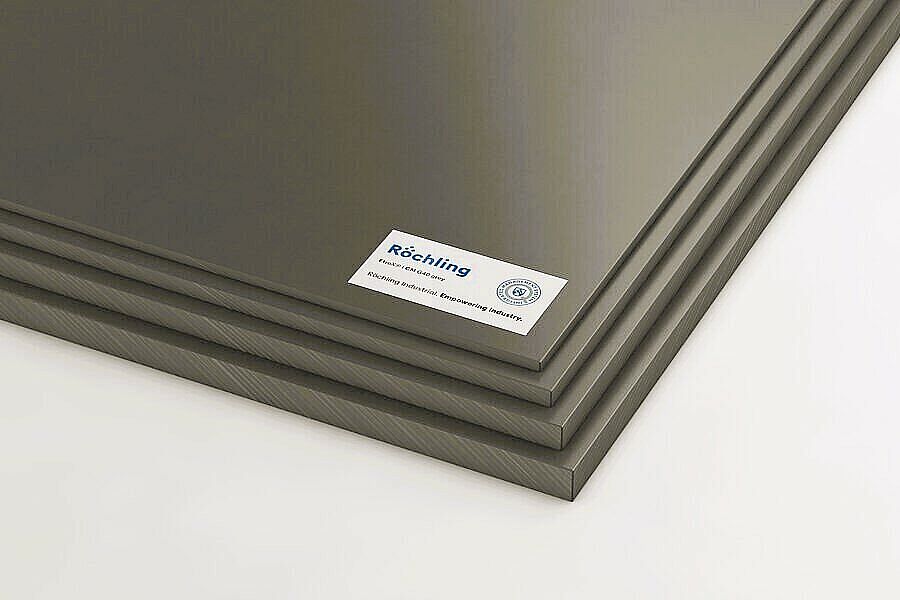

sheet
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 881967 | EtroX® I CM GLIDE natural pressed | sheet | sheet | natural | 25 x 395 x 395 mm | 395 mm | 395 mm | 25 mm |
Technical Specifications EtroX® I CM GLIDE
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,50 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | 3,0 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3200 |
| Tensile strength | DIN EN ISO 527 | MPa | 50,0 |
| Notched impact strength | ISO 179-1/1eA | kJ / m2 | 2 |
| Shore hardness | DIN EN ISO 868 | scale D | 85 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 190 |
| Elastic modulus of compression | DIN EN ISO 604 | MPa | 3500 |
