EtroX® I CM natural

PI

The premium product for highly demanding applications

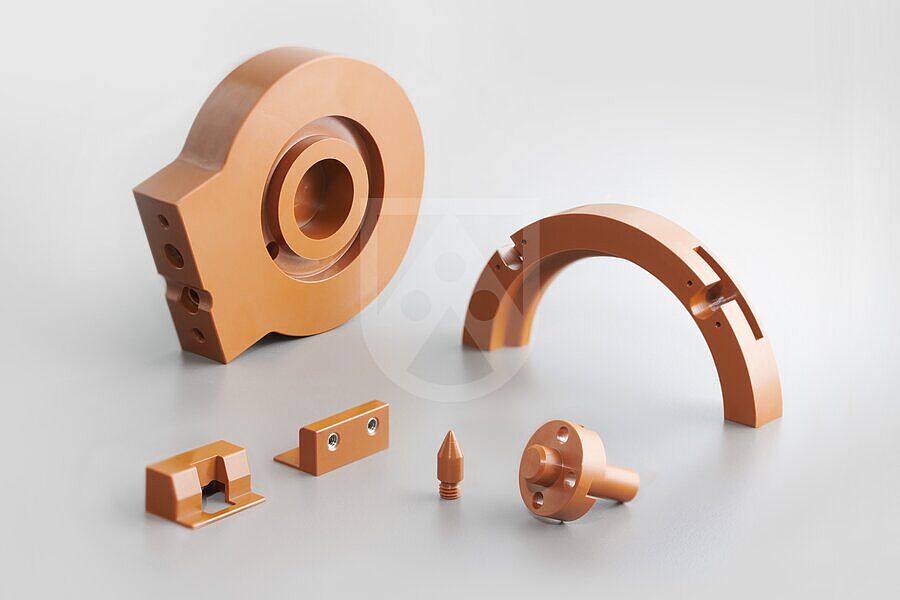

Our premium material EtroX^® I CM was specially developed to meet the high demands of the electronics, aerospace and automotive industries. As a pure polyimide, it withstands particularly high temperatures. EtroX^® I CM can be used to design components that offer significant advantages over other thermoplastics.

natural

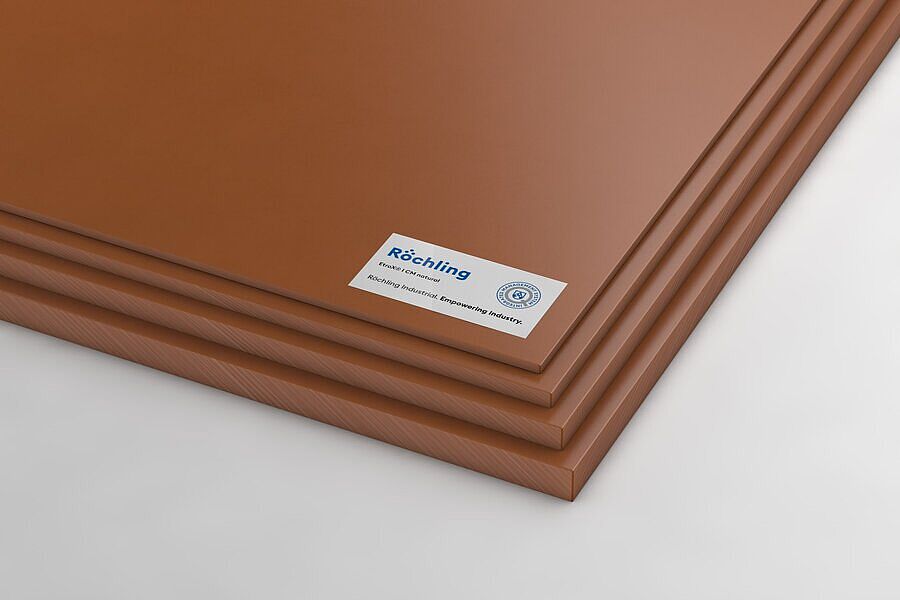

sheet

Characteristics

Heat resistant
High mechanical strength
Low creep tendency
High impact resistance
High stiffness
Good dimensional stability

Industries

电子
Semiconductor Industry
航空航天
车辆构造
Semiconductor Front-End applications
Semiconductor Wafer Handling
Semiconductor Back-End applications
Semiconductor High and low temperature
Semiconductor Dicing

Application Examples

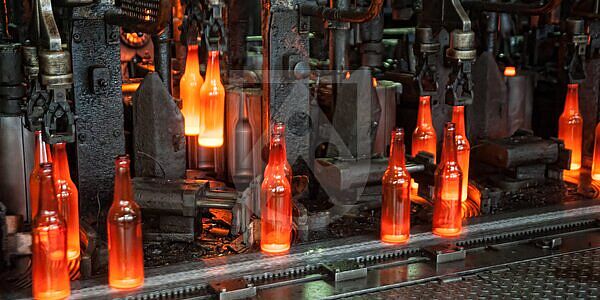

Gripper for glass bottles

In the production of glass bottles, grippers are used to guide the bottles through the process. Compared to conventionally used materials (graphite or brass), grippers made of EtroX^® I CM increase the service life of the component. Due to the high resistance to high temperatures and the good stability of polyimides, maintenance time can be reduces, resulting in less production downtime and more efficiency.

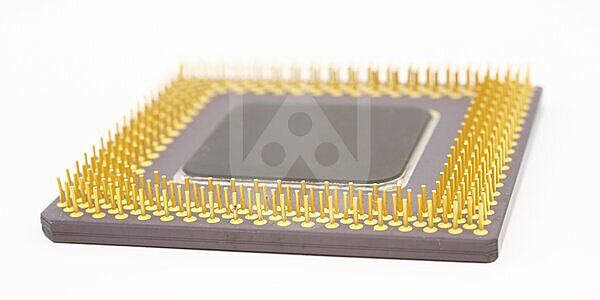

Test socket for final chip testing

Electronic components (e.g. chips) undergo a test after manufacture. For this purpose, they are inserted into test sockets made of polyimide, which must have high dimensional stability and durability. Our EtroX^® I CM material meets these requirements and offers the additional advantage of a long service life and usability as well as high stability and wear resistance. This rules out contamination of the components through abrasion of the test socket.

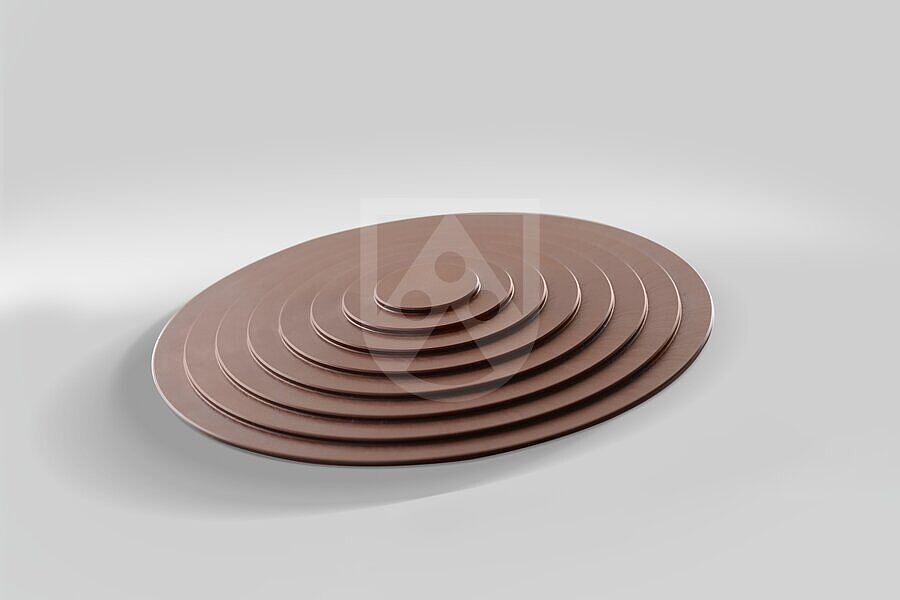

Thrust washer for electric cars

Thrust washers made of EtroX^® I CM increase the efficiency of motors in electric cars due to their high mechanical strength. Compared with conventionally used steel, our material has a lower density and therefore lower rotational capability. It also withstands high temperatures and does not react with powertrain fluids. Due to its high strength, low wear and outstanding properties, electric motors can be operated efficiently.

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	685684	EtroX® I CM natural pressed	sheet	sheet	natural	16 x 395 x 395 mm	395 mm	395 mm	16 mm
No stock item (MOQ)	708159	EtroX® I CM natural pressed	sheet	sheet	natural	8 x 395 x 395 mm	395 mm	395 mm	8 mm
No stock item (MOQ)	708181	EtroX® I CM natural pressed	sheet	sheet	natural	10 x 395 x 395 mm	395 mm	395 mm	10 mm
No stock item (MOQ)	728345	EtroX® I CM natural pressed	sheet	sheet	natural	12 x 395 x 395 mm	395 mm	395 mm	12 mm
No stock item (MOQ)	742252	EtroX® I CM natural pressed	sheet	sheet	natural	20 x 395 x 395 mm	395 mm	395 mm	20 mm
No stock item (MOQ)	743535	EtroX® I CM natural pressed	sheet	sheet	natural	45 x 395 x 395 mm	395 mm	395 mm	45 mm
No stock item (MOQ)	745872	EtroX® I CM natural pressed	sheet	sheet	natural	35 x 395 x 395 mm	395 mm	395 mm	35 mm
No stock item (MOQ)	746940	EtroX® I CM natural pressed	sheet	sheet	natural	44 x 395 x 395 mm	395 mm	395 mm	44 mm
No stock item (MOQ)	749009	EtroX® I CM natural pressed	sheet	sheet	natural	6 x 395 x 395 mm	395 mm	395 mm	6 mm
No stock item (MOQ)	749010	EtroX® I CM natural pressed	sheet	sheet	natural	13 x 395 x 395 mm	395 mm	395 mm	13 mm
No stock item (MOQ)	754005	EtroX® I CM natural pressed	sheet	sheet	natural	15 x 395 x 395 mm	395 mm	395 mm	15 mm
No stock item (MOQ)	755811	EtroX® I CM natural pressed	sheet	sheet	natural	9 x 395 x 395 mm	395 mm	395 mm	9 mm
No stock item (MOQ)	856705	EtroX® I CM natural pressed	sheet	sheet	natural	25 x 395 x 395 mm	395 mm	395 mm	25 mm
No stock item (MOQ)	868344	EtroX® I CM natural pressed	sheet	sheet	natural	40 x 395 x 395 mm	395 mm	395 mm	40 mm
No stock item (MOQ)	883159	EtroX® I CM natural pressed	sheet	sheet	natural	60 x 395 x 395 mm	395 mm	395 mm	60 mm

Technical Specifications EtroX® I CM natural

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,37
Water absorption	DIN EN ISO 62 (23°C / 24h)	%	0,6
Water absorption	DIN EN ISO 62 (23°C / 48h)	%	0,8
Water absorption	DIN EN ISO 62 (23°C / 3 Weeks)	%	2,4

	Test Method	Unit	Guideline Value
Elongation at break	DIN EN ISO 527	%	8
Tensile modulus of elasticity	DIN EN ISO 527	MPa	3600
Tensile strength	DIN EN ISO 527	MPa	145
Notched impact strength	DIN EN ISO 179	kJ / m²	10
Shore hardness	DIN EN ISO 868	scale D	89
Ball indentation hardness	DIN EN ISO 2039-1	MPa	240
Elastic modulus of compression	DIN EN ISO 604	MPa	4200
Tensile creep modulus, 1h	ISO 899-1	MPa	3390
Tensile creep modulus, 1000h	ISO 899-1	MPa	2730

	Test Method	Unit	Guideline Value
Glass transition temperature	ISO 11357-3	°C	323
Service temperature, short term (max.)	Average	°C	380
Mean coefficient of linear thermal expansion	ISO 11359-2	K^-1	41
Heat deflection temperature	DIN EN ISO 75	°C	319
Temp. of deflection under load, 1.80 MPa	ISO 75-1/-2	°C	319
Temp. of deflection under load, 0.45 MPa	ISO 75-1/-2	°C	343

	Test Method	Unit	Guideline Value
Volume resistivity	DIN EN 62631-3-1	Ω * cm	> 10¹⁵
Dielectric constant @ 100Hz	IEC 60250		4,2
Dielectric constant @ 1kHz	IEC 60250		4,2
Dielectric constant @ 10kHz	IEC 60250		4,1
Dielectric constant @ 100 kHz	IEC 60250		4,1
Dielectric constant @ 10GHz	IEC 61189-2-721		3,4
Dielectric constant @ 40GHz	IEC 61189-2-721		3,3
Dielectric constant @ 100GHz	IEC 61189-2-721		3,2
Specific Volume resistivity	IEC 60093	Ωm	8*10¹³
Specific Surface resistivity	IEC 60093	Ω	5*10¹⁵
Relative permittivity, 100Hz	IEC 62631-2-1	-	3,5
Relative permittivity, 1MHz	IEC 62631-2-1	-	3,4
Dissipation factor, 1 MHz	IEC 62631-2-1	E-4	80
Electric strength	IEC 60243-1	kV / mm	34

Downloads

Technical Data Sheet EtroX® I CM natural

Flyer EtroX® I CM natural

Product Handling Information Sheet EtroX® I CM natural

Flyer - Industrial EtroXICM - DE

Flyer - Industrial EtroXICM - EN
