Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 601957 | Sustatron® PPS GF 40 black extruded | rod | rod | black | Ø 30 x 3000 mm | 3,000 mm | 30 mm | |||
| No stock item (MOQ) | 639549 | Sustatron® PPS GF 40 black extruded | rod | rod | black | Ø 30 x 1000 mm | 1,000 mm | 30 mm | |||
| No stock item (MOQ) | 682392 | Sustatron® PPS GF 40 black extruded | sheet | sheet | black | 35 x 620 x 3000 mm | 3,000 mm | 620 mm | 35 mm | ||
| No stock item (MOQ) | 714044 | Sustatron® PPS GF 40 black extruded | rod | rod | black | Ø 20 x 3000 mm | 3,000 mm | 20 mm | |||
| No stock item (MOQ) | 718364 | Sustatron® PPS GF 40 black extruded | rod | rod | black | Ø 40 x 1000 mm | 1,000 mm | 40 mm | |||
| No stock item (MOQ) | 718367 | Sustatron® PPS GF 40 black extruded | rod | rod | black | Ø 35 x 1000 mm | 1,000 mm | 35 mm | |||
| No stock item (MOQ) | 722685 | Sustatron® PPS GF 40 black extruded | rod | rod | black | Ø 20 x 1000 mm | 1,000 mm | 20 mm | |||
| No stock item (MOQ) | 803568 | Sustatron® PPS GF 40 black extruded | rod | rod | black | Ø 40 x 3000 mm | 3,000 mm | 40 mm |

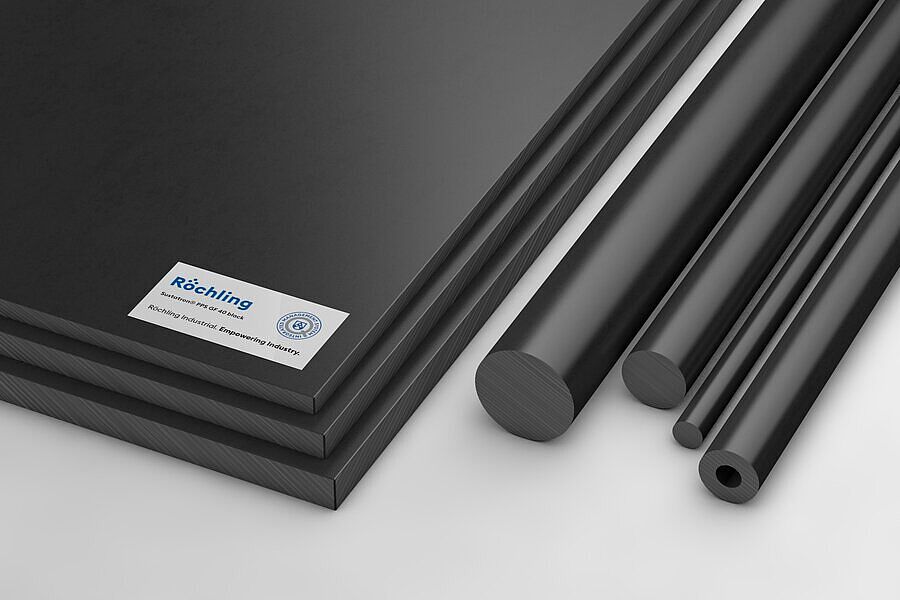

Technical Specifications Sustatron® PPS GF 40 black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,65 |
| Water absorption | DIN EN ISO 62 | % | 0,0 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | V0 / V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 90 |
| Elongation at break | DIN EN ISO 527 | % | 2 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 6500 |
| Shore hardness | DIN EN ISO 868 | scale D | 92 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 285 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 30 |
| Service temperature, long term | Average | °C | 0 … 220 |
| Service temperature, short term (max.) | Average | °C | 250 |
| Heat deflection temperature | DIN EN ISO 75, Verf. A, HDT | °C | 260 |
