Sustason® PPSU MG black

PPSU

Our premium material especially for medical devices

Sustason® PPSU MG was specially developed for demanding applications in the healthcare industry. It is the ideal material for plastic components in the medical environment like trial implants due to its high heat and sterilisation resistance to common processes. Biocompatibility in accordance with ISO 10993-5 and/or USP Class VI directly on the semi-finished product guarantees maximum safety and compatibility with biological systems. It also impresses with its good chemical resistance and high impact strength.

BK937 black, similar RAL 9004

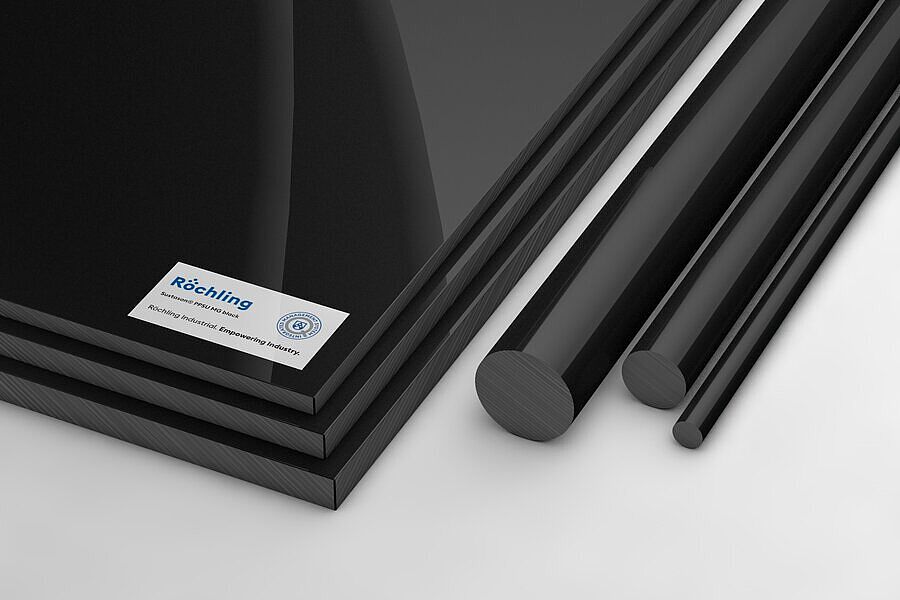

sheetrod

Characteristics

Good sterilisation resistance
High heat deflection temperature
ISO 10993-5 tested on semi-finished product
High impact resistance
Chemical resistant
High resistance to gamma and x-rays

Industries

Healthcare

Application Examples

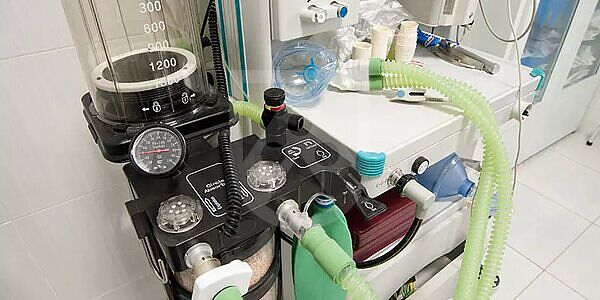

呼吸机的结构材料

Our wide range of thermoplastics supports compliance with the highest medical requirements in terms of functionality, reliability and process stability. Materials such as Sustason® PPSU MG and Polystone® P HG are specifically selected to fulfil these standards. We offer support during the design process to ensure that your products meet the requirements.

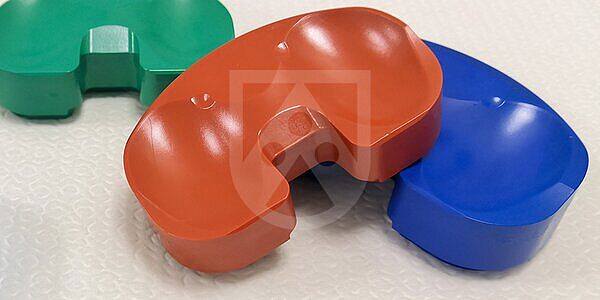

施胶试验

例如，用于膝关节植入物、髋臼植入物和套筒。它具有极高的精度和表面质量，可根据客户图纸进行高公差加工。所用材料为Sustason^®PPSU MG。

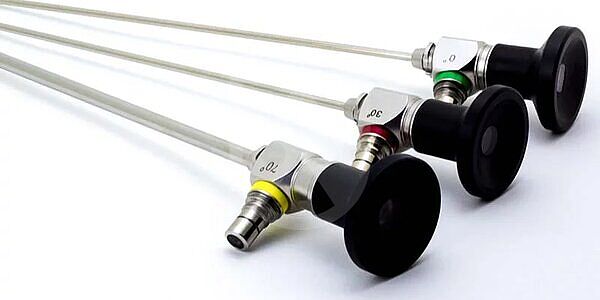

用于内窥镜的塑料组件

挑战：相比以前使用的金属材料，塑料的重量更轻，因此外科医生可以操作更长时间，操作精细程度更高 Sustason^® PPSU MG 能够被客户选用，是因为塑料可以减轻重量负担可经受 1,000+ 次消毒处理 + 根据客户要求做表面加工金属触感偏冰凉，塑料触感更温暖采用严格的公差范围加工不同的颜色可选

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	616254	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	15 x 620 x 1000 mm	1,000 mm	620 mm	15 mm
No stock item (MOQ)	626831	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	30 x 620 x 2000 mm	2,000 mm	620 mm	30 mm
No stock item (MOQ)	632423	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	45 x 620 x 2000 mm	2,000 mm	620 mm	45 mm
No stock item (MOQ)	632425	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	60 x 620 x 2000 mm	2,000 mm	620 mm	60 mm
No stock item (MOQ)	636495	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	60 x 500 x 3000 mm	3,000 mm	500 mm	60 mm
No stock item (MOQ)	641145	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 65 x 3000 mm	3,000 mm		65 mm
No stock item (MOQ)	641146	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 65 x 1000 mm	1,000 mm		65 mm
No stock item (MOQ)	641147	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 75 x 3000 mm	3,000 mm		75 mm
No stock item (MOQ)	641148	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 75 x 1000 mm	1,000 mm		75 mm
No stock item (MOQ)	642274	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	45 x 620 x 1000 mm	1,000 mm	620 mm	45 mm
No stock item (MOQ)	704279	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 30 x 3000 mm	3,000 mm		30 mm
No stock item (MOQ)	704280	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 30 x 1000 mm	1,000 mm		30 mm
No stock item (MOQ)	717817	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 85 x 3000 mm	3,000 mm		85 mm
No stock item (MOQ)	717818	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 85 x 1000 mm	1,000 mm		85 mm
No stock item (MOQ)	729693	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	40 x 620 x 2000 mm	2,000 mm	620 mm	40 mm
No stock item (MOQ)	730653	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	60 x 500 x 1000 mm	1,000 mm	500 mm	60 mm
No stock item (MOQ)	752937	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 60 x 2000 mm	2,000 mm		60 mm
No stock item (MOQ)	758759	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	16 x 500 x 2000 mm	2,000 mm	500 mm	16 mm
No stock item (MOQ)	761571	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	16 x 500 x 1000 mm	1,000 mm	500 mm	16 mm
Stock item (no MOQ)	808046	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 32 x 3000 mm	3,000 mm		32 mm
Stock item (no MOQ)	808047	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 20 x 3000 mm	3,000 mm		20 mm
Stock item (no MOQ)	808048	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 25 x 3000 mm	3,000 mm		25 mm
Stock item (no MOQ)	808049	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 40 x 3000 mm	3,000 mm		40 mm
Stock item (no MOQ)	808050	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 45 x 3000 mm	3,000 mm		45 mm
No stock item (no MOQ)	808051	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 50 x 3000 mm	3,000 mm		50 mm
No stock item (no MOQ)	808052	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 60 x 3000 mm	3,000 mm		60 mm
No stock item (MOQ)	808351	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	50 x 620 x 3000 mm	3,000 mm	620 mm	50 mm
No stock item (no MOQ)	808562	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	12 x 620 x 3000 mm	3,000 mm	620 mm	12 mm
No stock item (MOQ)	808563	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	12 x 620 x 1000 mm	1,000 mm	620 mm	12 mm
Stock item (no MOQ)	808564	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	20 x 620 x 3000 mm	3,000 mm	620 mm	20 mm
No stock item (MOQ)	808565	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	20 x 620 x 1000 mm	1,000 mm	620 mm	20 mm
Stock item (no MOQ)	808566	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	25 x 620 x 3000 mm	3,000 mm	620 mm	25 mm
No stock item (MOQ)	808567	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	25 x 620 x 1000 mm	1,000 mm	620 mm	25 mm
Stock item (no MOQ)	808568	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	30 x 620 x 3000 mm	3,000 mm	620 mm	30 mm
No stock item (MOQ)	808569	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	30 x 620 x 1000 mm	1,000 mm	620 mm	30 mm
No stock item (MOQ)	808570	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	40 x 620 x 3000 mm	3,000 mm	620 mm	40 mm
No stock item (MOQ)	808571	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	40 x 620 x 1000 mm	1,000 mm	620 mm	40 mm
No stock item (MOQ)	808572	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	60 x 620 x 3000 mm	3,000 mm	620 mm	60 mm
No stock item (MOQ)	808573	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	60 x 620 x 1000 mm	1,000 mm	620 mm	60 mm
No stock item (MOQ)	808985	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 32 x 1000 mm	1,000 mm		32 mm
No stock item (MOQ)	808986	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	808987	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	808988	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (MOQ)	808989	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 20 x 1000 mm	1,000 mm		20 mm
No stock item (MOQ)	808990	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 45 x 1000 mm	1,000 mm		45 mm
No stock item (MOQ)	808991	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 60 x 1000 mm	1,000 mm		60 mm
No stock item (MOQ)	809004	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 90 x 3000 mm	3,000 mm		90 mm
No stock item (MOQ)	809005	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 90 x 1000 mm	1,000 mm		90 mm
Stock item (no MOQ)	809233	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 70 x 3000 mm	3,000 mm		70 mm
No stock item (MOQ)	809234	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (MOQ)	922196	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 55 x 3000 mm	3,000 mm		55 mm
No stock item (MOQ)	922197	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 55 x 1000 mm	1,000 mm		55 mm
No stock item (MOQ)	922401	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	80 x 620 x 2000 mm	2,000 mm	620 mm	80 mm
No stock item (MOQ)	922729	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	80 x 620 x 1000 mm	1,000 mm	620 mm	80 mm
No stock item (MOQ)	923857	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	50 x 620 x 1000 mm	1,000 mm	620 mm	50 mm
No stock item (MOQ)	931357	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	20 x 620 x 2000 mm	2,000 mm	620 mm	20 mm
No stock item (MOQ)	931628	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	12 x 620 x 2000 mm	2,000 mm	620 mm	12 mm
Stock item (no MOQ)	932510	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	15 x 620 x 3000 mm	3,000 mm	620 mm	15 mm
No stock item (MOQ)	933884	Sustason® PPSU MG black extruded	sheet	sheet	BK937 black, similar RAL 9004	15 x 620 x 2000 mm	2,000 mm	620 mm	15 mm
No stock item (MOQ)	934702	Sustason® PPSU MG black extruded	rod	rod	BK937 black, similar RAL 9004	Ø 35 x 3000 mm	3,000 mm		35 mm

Technical Specifications Sustason® PPSU MG black

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,29
Water absorption	DIN EN ISO 62	%	0,6
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	77
Elongation at break	DIN EN ISO 527	%	30
Tensile modulus of elasticity	DIN EN ISO 527	MPa	2500
Notched impact strength	DIN EN ISO 179	kJ / m²	10

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	-
Glass transition temperature	ISO 11357-3	°C	220
Thermal conductivity	DIN 52612-1	W / (m * K)	0,35
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	55
Service temperature, long term	Average	°C	-50 … 180
Service temperature, short term (max.)	Average	°C	210
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	205

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,44
Volume resistivity	DIN EN 62631-3-1	Ω * cm	10¹⁵
Dielectric strength	IEC 60243	kV / mm	15

Downloads

Technical Data Sheet Sustason® PPSU MG black

Flyer Sustason® PPSU MG black

Product Handling Information Sheet Sustason® PPSU MG black

FDA Compliance Sustason® PPSU MG black

RI_Healthcare_Brochure.pdf

Medical Device Regulation (EU) 2017/745

Sustason PPSU MG semi-finished products
