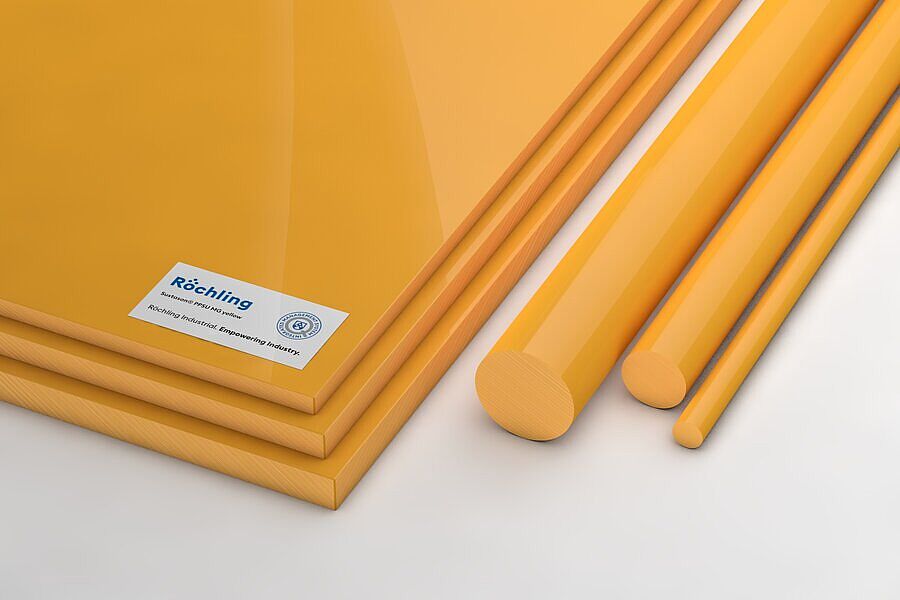

Sustason® PPSU MG yellow

PPSU

Our premium material especially for medical devices

Sustason® PPSU MG was specially developed for demanding applications in the healthcare industry. It is the ideal material for plastic components in the medical environment like trial implants due to its high heat and sterilisation resistance to common processes. Biocompatibility in accordance with ISO 10993-5 and/or USP Class VI directly on the semi-finished product guarantees maximum safety and compatibility with biological systems. It also impresses with its good chemical resistance and high impact strength.

YL1337 yellow, similar RAL 1006

rodsheet

Characteristics

Good sterilisation resistance
High heat deflection temperature
ISO 10993-5 tested on semi-finished product
High impact resistance
Chemical resistant
High resistance to gamma and x-rays

Industries

Healthcare

Application Examples

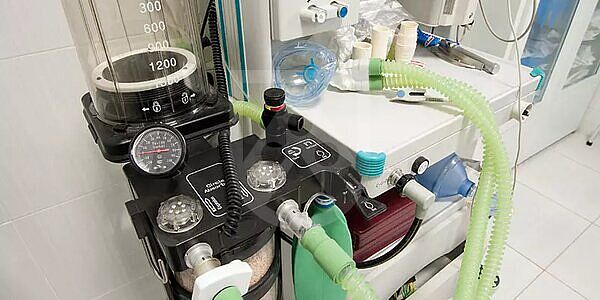

呼吸机的结构材料

Our wide range of thermoplastics supports compliance with the highest medical requirements in terms of functionality, reliability and process stability. Materials such as Sustason® PPSU MG and Polystone® P HG are specifically selected to fulfil these standards. We offer support during the design process to ensure that your products meet the requirements.

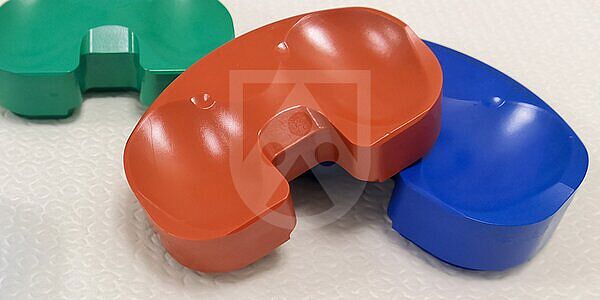

施胶试验

例如，用于膝关节植入物、髋臼植入物和套筒。它具有极高的精度和表面质量，可根据客户图纸进行高公差加工。所用材料为Sustason^®PPSU MG。

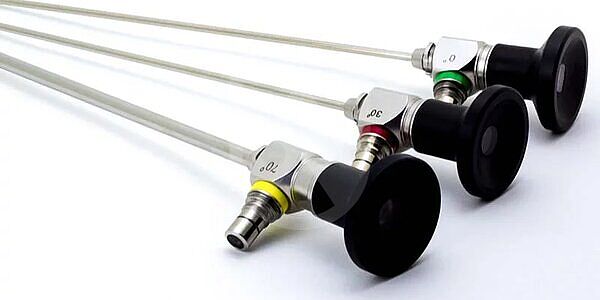

用于内窥镜的塑料组件

挑战：相比以前使用的金属材料，塑料的重量更轻，因此外科医生可以操作更长时间，操作精细程度更高 Sustason^® PPSU MG 能够被客户选用，是因为塑料可以减轻重量负担可经受 1,000+ 次消毒处理 + 根据客户要求做表面加工金属触感偏冰凉，塑料触感更温暖采用严格的公差范围加工不同的颜色可选

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	600837	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 20 x 3000 mm	3,000 mm		20 mm
No stock item (MOQ)	600838	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 35 x 1000 mm	1,000 mm		35 mm
No stock item (MOQ)	600839	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 35 x 3000 mm	3,000 mm		35 mm
No stock item (MOQ)	600841	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 45 x 1000 mm	1,000 mm		45 mm
No stock item (MOQ)	600842	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 60 x 3000 mm	3,000 mm		60 mm
No stock item (MOQ)	601945	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 55 x 1000 mm	1,000 mm		55 mm
No stock item (MOQ)	620784	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 65 x 1000 mm	1,000 mm		65 mm
No stock item (MOQ)	620785	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 65 x 3000 mm	3,000 mm		65 mm
No stock item (MOQ)	632413	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	45 x 620 x 2000 mm	2,000 mm	620 mm	45 mm
No stock item (MOQ)	632414	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	35 x 620 x 2000 mm	2,000 mm	620 mm	35 mm
No stock item (MOQ)	632415	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	30 x 620 x 2000 mm	2,000 mm	620 mm	30 mm
No stock item (MOQ)	632418	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	25 x 620 x 2000 mm	2,000 mm	620 mm	25 mm
No stock item (MOQ)	643816	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	20 x 620 x 2000 mm	2,000 mm	620 mm	20 mm
No stock item (MOQ)	651426	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	25 x 620 x 1000 mm	1,000 mm	620 mm	25 mm
No stock item (MOQ)	661650	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 55 x 3000 mm	3,000 mm		55 mm
No stock item (MOQ)	665960	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 20 x 1000 mm	1,000 mm		20 mm
No stock item (MOQ)	687090	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 45 x 3000 mm	3,000 mm		45 mm
No stock item (MOQ)	702486	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	35 x 620 x 1000 mm	1,000 mm	620 mm	35 mm
No stock item (MOQ)	808067	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 25 x 3000 mm	3,000 mm		25 mm
No stock item (MOQ)	808068	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 40 x 3000 mm	3,000 mm		40 mm
No stock item (MOQ)	808069	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 50 x 3000 mm	3,000 mm		50 mm
No stock item (MOQ)	808607	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	808608	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	808609	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (MOQ)	926688	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 80 x 1000 mm	1,000 mm		80 mm
No stock item (MOQ)	926689	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 80 x 3000 mm	3,000 mm		80 mm
No stock item (MOQ)	926837	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 75 x 1000 mm	1,000 mm		75 mm
No stock item (MOQ)	926838	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 75 x 3000 mm	3,000 mm		75 mm
No stock item (MOQ)	926839	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 90 x 1000 mm	1,000 mm		90 mm
No stock item (MOQ)	926840	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 90 x 3000 mm	3,000 mm		90 mm
No stock item (MOQ)	931227	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 32 x 1000 mm	1,000 mm		32 mm
No stock item (no MOQ)	931228	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 32 x 3000 mm	3,000 mm		32 mm
No stock item (MOQ)	932774	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 70 x 3000 mm	3,000 mm		70 mm
No stock item (MOQ)	932866	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	45 x 620 x 1000 mm	1,000 mm	620 mm	45 mm
No stock item (MOQ)	932867	Sustason® PPSU MG yellow extruded	sheet	sheet	YL1337 yellow, similar RAL 1006	45 x 620 x 3000 mm	3,000 mm	620 mm	45 mm
No stock item (MOQ)	933348	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (MOQ)	934463	Sustason® PPSU MG yellow extruded	rod	rod	YL1337 yellow, similar RAL 1006	Ø 60 x 1000 mm	1,000 mm		60 mm

Technical Specifications Sustason® PPSU MG yellow

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,29
Water absorption	DIN EN ISO 62	%	0,6
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	77
Elongation at break	DIN EN ISO 527	%	30
Tensile modulus of elasticity	DIN EN ISO 527	MPa	2500
Notched impact strength	DIN EN ISO 179	kJ / m²	10

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	-
Glass transition temperature	ISO 11357-3	°C	220
Thermal conductivity	DIN 52612-1	W / (m * K)	0,35
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	55
Service temperature, long term	Average	°C	-50 … 180
Service temperature, short term (max.)	Average	°C	210
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	205

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,44
Volume resistivity	DIN EN 62631-3-1	Ω * cm	10¹⁵
Dielectric strength	IEC 60243	kV / mm	15

Downloads

Technical Data Sheet Sustason® PPSU MG yellow

Flyer Sustason® PPSU MG yellow

Product Handling Information Sheet Sustason® PPSU MG yellow

RI_Healthcare_Brochure.pdf

Medical Device Regulation (EU) 2017/745

Sustason PPSU MG semi-finished products
