Polystone® G CubX® black

PE — PE-HD (PE 100)

Polystone® G CubX®: Covering sheets made of Polystone® G (PE100 RC) with very good stress cracking resistance and UV resistance for outdoor use.

  • 纵向和横向刚度高
  • 耐化学腐蚀性强
  • 重量轻,容易处理
  • 隔热性能好
  • 很容易通过加热组件对接焊、热气焊、挤压焊等方法完成焊接
black, similar RAL 9005

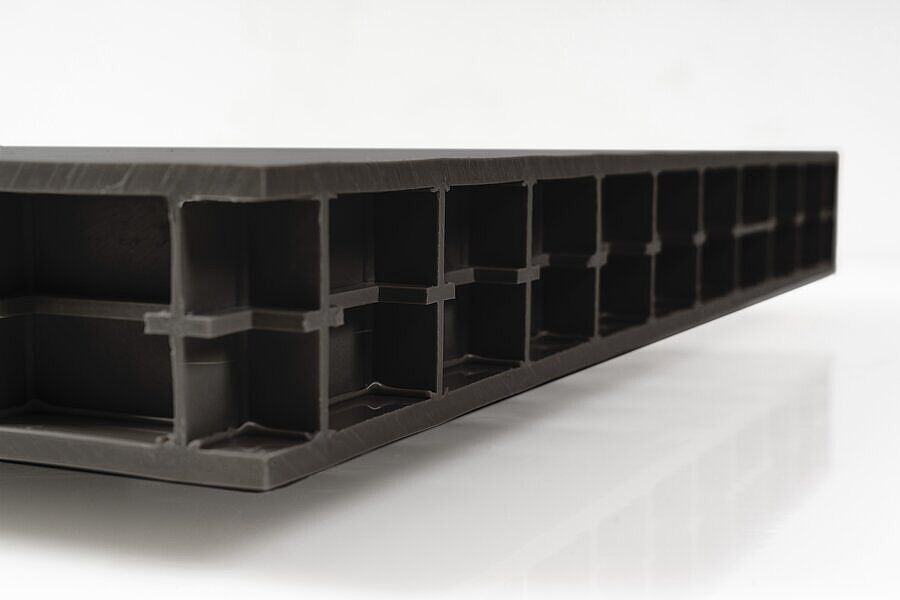

cross-ribbed twin-wall sheet
QR-Code

Characteristics

  • High longitudinal and transversal stiffness
  • Good handling
  • Low weight
  • Good thermal insulation
  • Good machinability
  • Good weldability
  • Chemical resistant
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
Stock item (no MOQ)
445231Polystone® G CubX® black cross-ribbed twin-wall sheet cross-ribbed twin-wall sheet black, similar RAL 90052.000 x 1.500 x 57 mm 2,000 mm 1,500 mm 57 mm

Technical Specifications Polystone® G CubX® black

Test MethodUnitGuideline Value
Thermal conductivityISO 8302 | Tested with: GHP 500-1, Single-sheet processW / (m * K)Lambda 0,16
DensityDIN EN ISO 1183g / cm30,3
Area weightkg/m218,6
Weld strength lattice / covering sheetsMPa 16
FlatnessDIN EN ISO 15860mm/m4
Test MethodUnitGuideline Value
Density, RTDIN EN ISO 1183g / cm30,96
Yield stressDIN EN ISO 527MPa24
Elongation at breakDIN EN ISO 527%> 50
Tensile modulus of elasticityDIN EN ISO 527MPa1000
Notched impact strengthDIN EN ISO 179kJ / m220
Dielectric constantIEC 602502,5
Surface resistivityDIN EN 62631-3-2>1014
