Polystone® G CubX® UV-stabilized white
PE — PE-HD (PE 100)
- UV-resistant for outdoor use
- 纵向和横向刚度高
- 耐化学腐蚀性强
- 重量轻，容易处理
- 隔热性能好
- 很容易通过加热组件对接焊、热气焊、挤压焊等方法完成焊接
white, similar RAL 9010

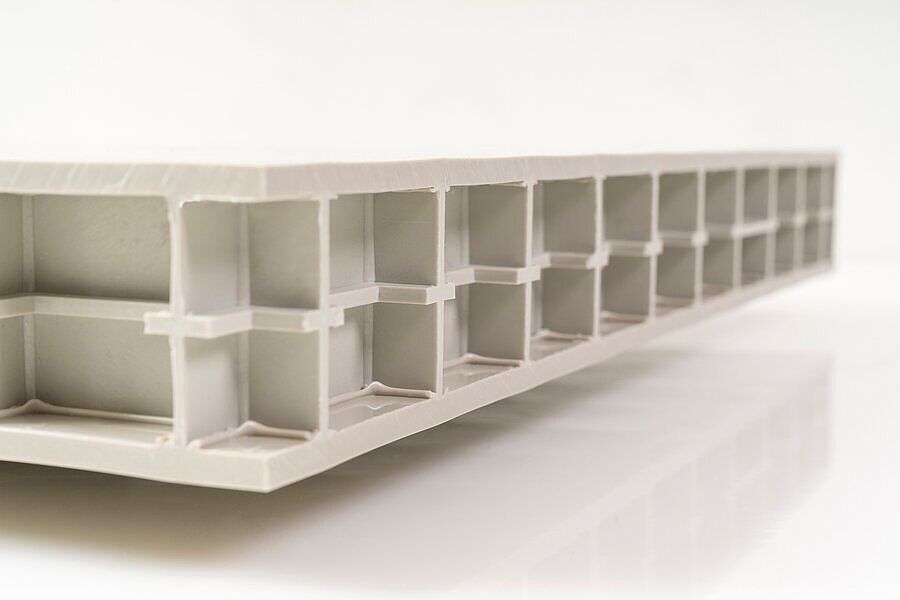

cross-ribbed twin-wall sheet
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 455019 | Polystone® G CubX® UV-stabilized white | cross-ribbed twin-wall sheet | cross-ribbed twin-wall sheet | white, similar RAL 9010 | 2.000 x 1.500 x 57 mm | 2,000 mm | 1,500 mm | 57 mm |
Technical Specifications Polystone® G CubX® UV-stabilized white
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | ISO 8302 | Tested with: GHP 500-1, Single-sheet process | W / (m * K) | Lambda 0,16 |
| Density | DIN EN ISO 1183 | g / cm3 | 0,3 |
| Area weight | kg/m2 | 18,6 | |
| Weld strength lattice / covering sheets | MPa | ≥ 16 | |
| Flatness | DIN EN ISO 15860 | mm/m | 4 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density, RT | DIN EN ISO 1183 | g / cm3 | 0,96 |
| Yield stress | DIN EN ISO 527 | MPa | 24 |
| Elongation at break | DIN EN ISO 527 | % | > 50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 1000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 20 |
| Dielectric constant | IEC 60250 | 2,5 | |
| Surface resistivity | DIN EN 62631-3-2 | >1014 |
