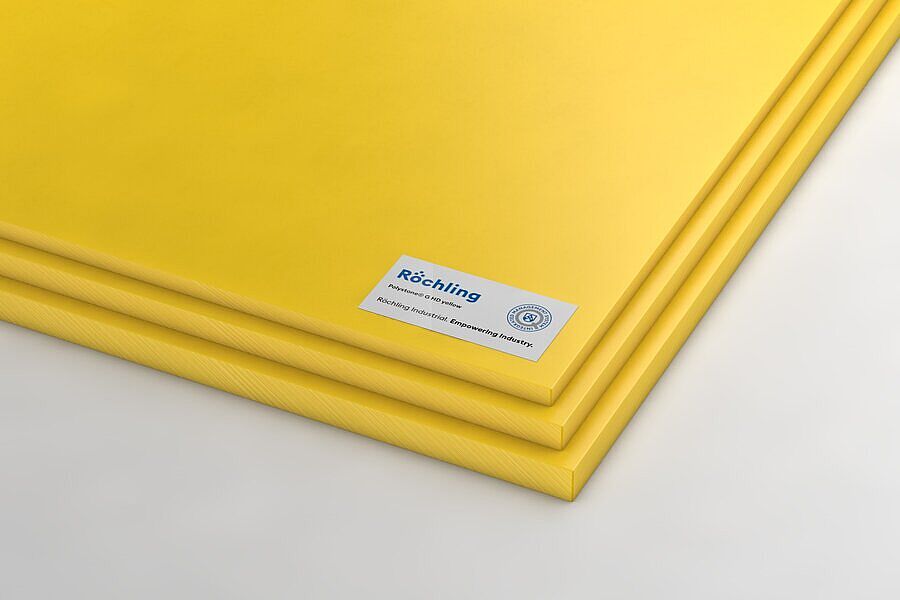

Polystone® G HD yellow
PE — PE-HD - PE 300
Polystone® G is a high density polyethylene (PE-HD/PE 300). It is an easily processed material for numerous applications, particularly in chemical equipment and container construction.
sulfur yellow, similar RAL 1016traffic yellow, similar RAL 1023colza yellow, similar RAL 1021signal yellow, similar RAL 1003
sheetwelding rod
Characteristics
- Good weldability
- Easy processing
- Chemical resistant
- UV-resistant
Industries
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 210593 | Polystone® G HD + UV-stabilized yellow extruded | sheet | sheet | sulfur yellow, similar RAL 1016 | 3.000 x 1.500 x 10 mm | 3,000 mm | 1,500 mm | 10 mm | ||
| Stock item (no MOQ) | 210621 | Polystone® G HD + UV-stabilized yellow extruded | sheet | sheet | sulfur yellow, similar RAL 1016 | 3.000 x 1.500 x 6 mm | 3,000 mm | 1,500 mm | 6 mm | ||
| No stock item (MOQ) | 274106 | Polystone® G HD + UV-stabilized yellow extruded | welding rod | welding rod | sulfur yellow, similar RAL 1016 | Ø 3 (+/-0,2) mm | 3 mm | ||||
| No stock item (MOQ) | 275107 | Polystone® G HD + UV-stabilized yellow extruded | welding rod | welding rod | sulfur yellow, similar RAL 1016 | Ø 4 (-0,3/+0,2) mm | 4 mm | ||||
| No stock item (MOQ) | 285332 | Polystone® G HD + UV-stabilized yellow extruded | sheet | sheet | sulfur yellow, similar RAL 1016 | 3.000 x 1.500 x 15 mm | 3,000 mm | 1,500 mm | 15 mm | ||
| No stock item (MOQ) | 355753 | Polystone® G HD + UV-stabilized yellow extruded | welding rod | welding rod | sulfur yellow, similar RAL 1016 | B=5,7 (-0,5/+0,1) x 3,8 (-0,4/+0) mm | 5.7 mm | 3.8 mm | |||
| No stock item (MOQ) | 379314 | Polystone® G HD + UV-stabilized yellow extruded | welding rod | welding rod | traffic yellow, similar RAL 1023 | Ø 4 (-0,3/+0,2) mm | 4 mm | ||||
| No stock item (MOQ) | 442595 | Polystone® G HD + UV-stabilized yellow extruded | welding rod | welding rod | colza yellow, similar RAL 1021 | Ø 4 (-0,3/+0,2) mm | 4 mm | ||||
| No stock item (MOQ) | 475279 | Polystone® G HD + UV-stabilized yellow extruded | sheet | sheet | colza yellow, similar RAL 1021 | 3.000 x 1.500 x 8 mm | 3,000 mm | 1,500 mm | 8 mm | ||
| No stock item (MOQ) | 478191 | Polystone® G HD + UV-stabilized yellow extruded | sheet | sheet | sulfur yellow, similar RAL 1016 | 3.000 x 1.500 x 15 mm | 3,000 mm | 1,500 mm | 15 mm | ||
| No stock item (MOQ) | 478442 | Polystone® G HD + UV-stabilized yellow extruded | sheet | sheet | colza yellow, similar RAL 1021 | 3.000 x 1.500 x 15 mm | 3,000 mm | 1,500 mm | 15 mm | ||
| No stock item (MOQ) | 478443 | Polystone® G HD + UV-stabilized yellow extruded | sheet | sheet | colza yellow, similar RAL 1021 | 3.000 x 1.500 x 12 mm | 3,000 mm | 1,500 mm | 12 mm | ||
| No stock item (MOQ) | 386126 | Polystone® G HD yellow extruded | sheet | sheet | signal yellow, similar RAL 1003 | 3.000 x 1.250 x 15 mm | 3,000 mm | 1,250 mm | 15 mm | ||
| No stock item (MOQ) | 471142 | Polystone® G HD yellow extruded | sheet | sheet | signal yellow, similar RAL 1003 | 3.000 x 1.500 x 6 mm | 3,000 mm | 1,500 mm | 6 mm | ||
| No stock item (MOQ) | 401283 | Polystone® G HD yellow pressed | sheet | sheet | traffic yellow, similar RAL 1023 | 6000 x 2000 x 15 mm | 6,000 mm | 2,000 mm | 15 mm |
Technical Specifications Polystone® G HD yellow extruded + UV-stabilized
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,95 |
| Water absorption | DIN EN ISO 62 | % | 0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Flammability (Thickness 3 - 10 mm) | DIN 4102 | B2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >22 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1100 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | >10 |
| Shore hardness | DIN EN ISO 868 | scale D | >60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -50 … 80 |
| Service temperature, short term (max.) | Average | °C | 100 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 67 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 2,4 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,0004 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1014 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | >40 |
