LubX® C blue

PE — PE-UHMW - PE 1000

With LubX^® C we offer a high performance material especially aligned to POM and steel, which has outstanding dry-running properties at its disposal. They have been especially developed for applications in materials-handling and automation technologies.

Compared with conventional sliding materials, conveying systems equipped with LubX^® C need considerably less energy.
The considerably lower coefficient of friction of LubX^® C eliminates the possibility of the slip-stick effect (backsliding) almost completely and thus increases process stability.

brilliant blue, similar RAL 5007pantone blue 072 Cultramarine blue, similar RAL 5002

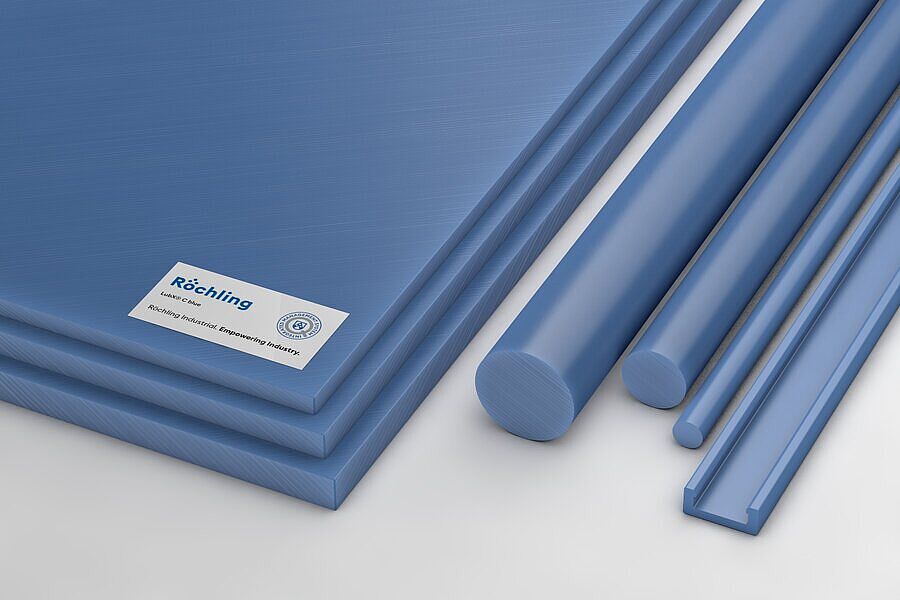

profilerodsheet

Characteristics

Energy-saving
Especially aligned to POM and Steel
FDA/21CFR177.1520 compliant
Noise-reducing
Coefficient of friction with POM as sliding partner up to 75% less than of PE-UHMW
Coefficient of friction with steel as sliding partner up to 60% less than of PE-UHMW
Food compliant according to 10/2011/EU, 1935/2004/EC, FDA

Industries

Application Examples

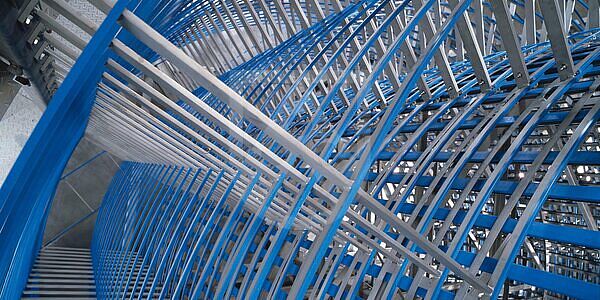

螺旋速冻机的滑轨

我们 LubX^® 材料制作的型材用在制作速冻披萨的螺旋速冻机的结构中。由于具有出色的滑动性能，此材料可以降低所需的传动力以及所用的能源。LubX^® 满足法规 10/2011/EU 和 FDA 的要求，适合直接接触食品。根据具体应用，我们推荐 LubX^® CV、 LubX^® C、 LubX^® S 或 LubX^® Ast black

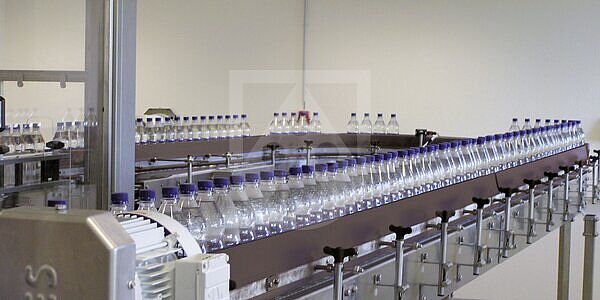

饮料装瓶设备的滑动组件

我们的 LubX^® 产品系列提供专为输送机技术开发的重载荷滑动材料。由于具有出色的滑动特性，配备了 LubX^® 的输送机系统（例如，饮料装瓶设备中的输送机系统）只需较少的能耗、避免了滑动粘附效应以及改进了输送机工艺流程的稳定性。根据具体应用，我们推荐 LubX^® CV、 LubX^® C、 LubX^® S 或 LubX^® Ast black。

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	308330	LubX® C blue extruded	U-profile	U-profile (R023)	brilliant blue, similar RAL 5007	50.000 x 13 x 12 mm	50,000 mm	13 mm	12 mm
No stock item (MOQ)	318016	LubX® C blue extruded	Clamp profile	Clamp profile (R543)	brilliant blue, similar RAL 5007	25.000 x 15,81 x 5,8 mm	25,000 mm	15.81 mm	5.8 mm
No stock item (MOQ)	339118	LubX® C blue extruded	Clip profile	Clip profile (R584)	brilliant blue, similar RAL 5007	3.000 x 39,1 x 23,7 mm	3,000 mm	39.1 mm	23.7 mm
No stock item (MOQ)	352221	LubX® C blue extruded	U-profile	U-profile (R023)	brilliant blue, similar RAL 5007	60.000 x 13 x 12 mm	60,000 mm	13 mm	12 mm
No stock item (MOQ)	365879	LubX® C blue extruded	Special profile	Special profile (R335)	brilliant blue, similar RAL 5007	3.800 x 40 x 27 mm	3,800 mm	40 mm	27 mm
No stock item (MOQ)	365880	LubX® C blue extruded	Special profile	Special profile (R335)	brilliant blue, similar RAL 5007	4.800 x 40 x 27 mm	4,800 mm	40 mm	27 mm
No stock item (MOQ)	365881	LubX® C blue extruded	Special profile	Special profile (R335)	brilliant blue, similar RAL 5007	5.600 x 40 x 27 mm	5,600 mm	40 mm	27 mm
No stock item (MOQ)	369326	LubX® C blue extruded	Special profile	Special profile (R336)	brilliant blue, similar RAL 5007	5.750 x 40 x 27 mm	5,750 mm	40 mm	27 mm
No stock item (MOQ)	402416	LubX® C blue extruded	rod	rod	brilliant blue, similar RAL 5007	Ø 25 x 1.000 mm	1,000 mm		25 mm
No stock item (MOQ)	407066	LubX® C blue extruded	Special profile	Special profile (R336)	brilliant blue, similar RAL 5007	2.780 x 40 x 27 mm	2,780 mm	40 mm	27 mm
No stock item (MOQ)	439002	LubX® C blue extruded	U-profile	U-profile (R219)	brilliant blue, similar RAL 5007	60.000 x 13 x 13 mm	60,000 mm	13 mm	13 mm
No stock item (MOQ)	471840	LubX® C blue extruded	rod	rod	brilliant blue, similar RAL 5007	Ø 30 x 3.050 mm	3,050 mm		30 mm
No stock item (MOQ)	471841	LubX® C blue extruded	rod	rod	brilliant blue, similar RAL 5007	Ø 40 x 3.050 mm	3,050 mm		40 mm
No stock item (MOQ)	471842	LubX® C blue extruded	rod	rod	brilliant blue, similar RAL 5007	Ø 60 x 3.050 mm	3,050 mm		60 mm
No stock item (MOQ)	306524	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	308500	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	309305	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	309306	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	3.000 (-0/+100) x 1.250 (+/-30) x 25 mm	3,000 mm	1,250 mm	25 mm
No stock item (MOQ)	309307	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	3.000 (-0/+100) x 1.250 (+/-30) x 30 mm	3,000 mm	1,250 mm	30 mm
No stock item (MOQ)	309661	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	309664	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 25 mm	6,000 mm	2,500 mm	25 mm
No stock item (MOQ)	309666	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 30 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	310826	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2.000 x 1.000 x 15 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	310835	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 15 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	315971	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2000 x 1000 x 25 mm	2,000 mm	1,000 mm	25 mm
No stock item (MOQ)	317418	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 35 mm	6,000 mm	2,500 mm	35 mm
No stock item (MOQ)	327532	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	330069	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	330345	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	3.000 (-0/+100) x 1.250 (+/-30) x 10 mm	3,000 mm	1,250 mm	10 mm
No stock item (MOQ)	330346	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	3.000 (-0/+100) x 1.250 (+/-30) x 12 mm	3,000 mm	1,250 mm	12 mm
No stock item (MOQ)	330423	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 10 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	330425	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	330427	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 25 mm	6,000 mm	2,000 mm	25 mm
No stock item (MOQ)	330533	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 10 mm	6,000 mm	2,500 mm	10 mm
No stock item (MOQ)	330538	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 12 mm	6,000 mm	2,500 mm	12 mm
No stock item (MOQ)	337644	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2.000 x 1.000 x 40 mm	2,000 mm	1,000 mm	40 mm
No stock item (MOQ)	338984	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 40 mm	6,000 mm	2,000 mm	40 mm
No stock item (MOQ)	341700	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2000 x 1000 x 35 mm	2,000 mm	1,000 mm	35 mm
No stock item (MOQ)	355715	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	3.000 (-0/+100) x 1.250 (+/-30) x 15 mm	3,000 mm	1,250 mm	15 mm
No stock item (MOQ)	356994	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 15 mm	6,000 mm	2,500 mm	15 mm
No stock item (MOQ)	400145	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 22,5 mm	6,000 mm	2,000 mm	22.5 mm
No stock item (MOQ)	400147	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 35,5 mm	6,000 mm	2,000 mm	35.5 mm
No stock item (MOQ)	430565	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2.000 x 1.000 x 10 (-0/+0,4) mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	444268	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2.000 x 1.000 x 8 mm	2,000 mm	1,000 mm	8 mm
No stock item (MOQ)	444600	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.000 x 8 mm	6,000 mm	2,000 mm	8 mm
No stock item (MOQ)	448804	LubX® C blue pressed	sheet	sheet	pantone blue 072 C	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	463882	LubX® C blue pressed	sheet	sheet	ultramarine blue, similar RAL 5002	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	464200	LubX® C blue pressed	sheet	sheet	ultramarine blue, similar RAL 5002	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	466874	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 25,4 mm	6,000 mm	2,500 mm	25.4 mm
No stock item (MOQ)	466876	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 38,1 mm	6,000 mm	2,500 mm	38.1 mm
No stock item (MOQ)	470522	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	3.000 (-0/+100) x 1.250 (+/-30) x 35 mm	3,000 mm	1,250 mm	35 mm
No stock item (MOQ)	471730	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	3.000 (-0/+100) x 1.250 (+/-30) x 8 mm	3,000 mm	1,250 mm	8 mm
No stock item (MOQ)	471757	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	6.000 x 2.500 x 8 mm	6,000 mm	2,500 mm	8 mm
No stock item (MOQ)	501863	LubX® C blue pressed	sheet	sheet	brilliant blue, similar RAL 5007	2.000 x 1.000 x 50 mm	2,000 mm	1,000 mm	50 mm

Technical Specifications LubX® C blue extruded

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	0,93
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Non-toxicity			+
Moulding Compound PE	DIN ISO 1872-1		UHMW-PE-QCD 35-3-4

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	19
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	650
Notched impact strength	DIN EN ISO 179	kJ / m²	no break
Shore hardness	DIN EN ISO 868	scale D	60
Sliding partner POM MOD A (0,25 m/s - 0,25 MPa)	REP - Tribology - Test		0,08
Sliding partner POM MOD B (0,25 m/s - 0,25 MPa)	REP - Tribology - Test		0,11

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	133 – 135
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 - 230 (*)
Service temperature, long term	Average	°C	-150 … 80 (*)
Service temperature, short term (max.)	Average	°C	130 (*)

	Test Method	Unit	Guideline Value
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁵
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴

Technical Specifications LubX® C blue pressed

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	0,93
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Non-toxicity			+
Moulding Compound PE	DIN ISO 1872-1		UHMW-PE-QCD 35-3-4

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	20
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	500
Notched impact strength	DIN EN ISO 179	kJ / m²	no break
Shore hardness	DIN EN ISO 868	scale A	60
Shore hardness	DIN EN ISO 868	scale D	60
Sliding partner POM MOD A (0,25 m/s - 0,25 MPa)	REP - Tribology - Test		0,08
Sliding partner POM MOD B (0,25 m/s - 0,25 MPa)	REP - Tribology - Test		0,11

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	133 ... 135
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 - 230 (*)
Service temperature, long term	Average	°C	-150 ... 80 (*)
Service temperature, short term (max.)	Average	°C	130 (*)

	Test Method	Unit	Guideline Value
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁵
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁵
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴

Downloads

Technical Data Sheet LubX® C blue extruded

Technical Data Sheet LubX® C blue pressed

Product Handling Information Sheet LubX® C blue pressed

FDA Compliance LubX® C blue extruded

EC Compliance LubX® C blue pressed

FDA Compliance LubX® C blue pressed
