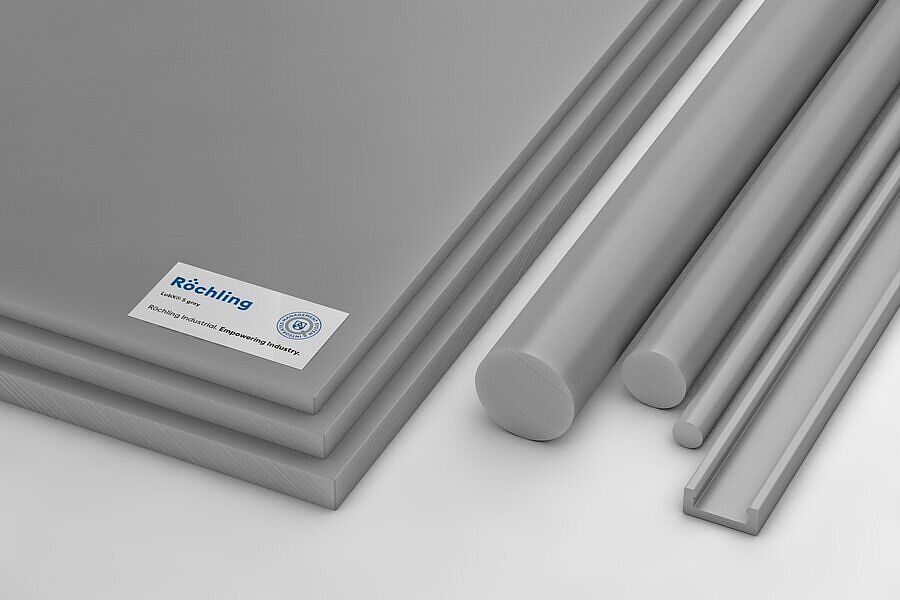

LubX® S grey

PE — PE-UHMW - PE 1000

With LubX® S, Röchling offers a highperformance material especially aligned to the sliding partner PET, which has outstanding dry-running properties at its disposal. It has been especially developed for applications in materials-handling and automation technologies.

  • Compared with conventional sliding materials, conveying systems equipped with LubX® S need considerably less energy.
  • The considerably lower coefficient of friction of LubX® S eliminates the possibility of the slip-stick effect (backsliding) almost completely and thus increases process stability.
dust grey, similar RAL 7037grey, similar RAL 7032
profilerodsheetsample
QR-Code

Characteristics

  • Energy-saving
  • Especially aligned to the sliding partner PET
  • 10/2011/EU compliant
  • Good wear resistance

Industries

Application Examples

+

用于输送机系统的滑动组件

我们的 LubX® 产品系列提供专为输送机技术开发的高性能滑动材料。配备有 LubX® 的输送机系统因其滑动性能出色，所需能量减少，避免了粘滑效应，提高了工艺稳定性。根据具体应用，我们推荐 LubX® CV、 LubX® C、 LubX® S 或 LubX® Ast black

+

螺旋速冻机的滑轨

我们 LubX® 材料制作的型材用在制作速冻披萨的螺旋速冻机的结构中。由于具有出色的滑动性能，此材料可以降低所需的传动力以及所用的能源。LubX® 满足法规 10/2011/EU 和 FDA 的要求，适合直接接触食品。根据具体应用，我们推荐 LubX® CV、 LubX® C、 LubX® S 或 LubX® Ast black

+

饮料装瓶设备的滑动组件

我们的 LubX® 产品系列提供专为输送机技术开发的重载荷滑动材料。由于具有出色的滑动特性，配备了 LubX® 的输送机系统（例如，饮料装瓶设备中的输送机系统）只需较少的能耗、避免了滑动粘附效应以及改进了输送机工艺流程的稳定性。根据具体应用，我们推荐 LubX® CV、 LubX® C、 LubX® S 或 LubX® Ast black。

Variants

SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		269120LubX® S grey extruded Clamp profile Clamp profile (R351) dust grey, similar RAL 703730.000 x 12,5 x 6,5 mm 30,000 mm 12.5 mm 6.5 mm
No stock item (MOQ)		269121LubX® S grey extruded Clamp profile Clamp profile (R352) dust grey, similar RAL 703730.000 x 12,5 x 6,5 mm 30,000 mm 12.5 mm 6.5 mm
No stock item (MOQ)		283430LubX® S grey extruded Clamp profile Clamp profile (R351) dust grey, similar RAL 703760.000 x 12,5 x 6,5 mm 60,000 mm 12.5 mm 6.5 mm
No stock item (MOQ)		296193LubX® S grey extruded Round-Bar-Cover profile Round-Bar-Cover profile (R425) dust grey, similar RAL 703750.000 x 13 x 8 mm 50,000 mm 13 mm 8 mm
No stock item (MOQ)		303750LubX® S grey extruded Clamp profile Clamp profile (R399) dust grey, similar RAL 703750.000 x 15 x 7 mm 50,000 mm 15 mm 7 mm
No stock item (MOQ)		307074LubX® S grey extruded Side-Guide profile Side-Guide profile (R013) dust grey, similar RAL 70372.000 x 20 x 16 mm 2,000 mm 20 mm 16 mm
No stock item (MOQ)		318418LubX® S grey extruded Clamp profile Clamp profile (R546) dust grey, similar RAL 703730.000 x 12,5 x 7 mm 30,000 mm 12.5 mm 7 mm
No stock item (MOQ)		321700LubX® S grey extruded Special profile Special profile (R513) dust grey, similar RAL 70373.100 x 39 x 15,5 mm 3,100 mm 39 mm 15.5 mm
No stock item (MOQ)		326999LubX® S grey extruded Special profile Special profile (R557) dust grey, similar RAL 7037100.000 x 7,8 x 6,1 mm 100,000 mm 7.8 mm 6.1 mm
No stock item (MOQ)		327234LubX® S grey extruded Clamp profile Clamp profile (R352) dust grey, similar RAL 703760.000 x 12,5 x 6,5 mm 60,000 mm 12.5 mm 6.5 mm
No stock item (MOQ)		331842LubX® S grey extruded Clamp profile Clamp profile (R519) dust grey, similar RAL 703760.000 x 16 x 7 mm 60,000 mm 16 mm 7 mm
No stock item (MOQ)		336981LubX® S grey extruded Special profile Special profile (R360) dust grey, similar RAL 703730.000 x 36,1 x 7 mm 30,000 mm 36.1 mm 7 mm
No stock item (MOQ)		365548LubX® S grey extruded rod rod dust grey, similar RAL 7037Ø 160 x 2.000 mm 2,000 mm 160 mm
No stock item (MOQ)		374217LubX® S grey extruded Special profile Special profile (R313) dust grey, similar RAL 70376.000 x 136 x 21 mm 6,000 mm 136 mm 21 mm
No stock item (MOQ)		404450LubX® S grey extruded Special profile Special profile (R561) dust grey, similar RAL 70376.000 x 38,5 x 9 mm 6,000 mm 38.5 mm 9 mm
No stock item (MOQ)		410521LubX® S grey extruded U-profile U-profile (R236) dust grey, similar RAL 703760.000 x 19 x 16 mm 60,000 mm 19 mm 16 mm
No stock item (MOQ)		419406LubX® S grey extruded Clamp profile Clamp profile (R704) dust grey, similar RAL 703750.000 x 14,2 mm 50,000 mm 14.2 mm
No stock item (MOQ)		433892LubX® S grey extruded Round-Bar-Cover profile Round-Bar-Cover profile (R095) dust grey, similar RAL 70373.000 x 14,3 x 9,5 3,000 mm 14.3 mm 9.5 mm
No stock item (MOQ)		433895LubX® S grey extruded C-profile C-profile (R545) dust grey, similar RAL 70373000 x 32,7 x 16 mm 3,000 mm 32.7 mm 16 mm
No stock item (MOQ)		442364LubX® S grey extruded Clamp profile Clamp profile (R751) dust grey, similar RAL 703750.000 x 14,5 x 12,2 mm 50,000 mm 14.5 mm 12.2 mm
No stock item (MOQ)		463797LubX® S grey extruded rod rod dust grey, similar RAL 7037Ø 120 x 2.000 mm 2,000 mm 120 mm
No stock item (MOQ)		472423LubX® S grey extruded U-profile U-profile (R269) grey, similar RAL 70326.000 x 41 x 9 mm 6,000 mm 41 mm 9 mm
No stock item (MOQ)		472698LubX® S grey extruded U-profile U-profile (R246) dust grey, similar RAL 703760.000 x 40,1 x 10 mm 60,000 mm 40.1 mm 10 mm
Stock item (no MOQ)		472774LubX® S grey extruded Clamp profile Clamp profile (R010) dust grey, similar RAL 703760.000 x 21 x 12 mm 60,000 mm 21 mm 12 mm
No stock item (MOQ)		473639LubX® S grey extruded U-profile U-profile (R246) dust grey, similar RAL 70376.000 x 40,1 x 10 mm 6,000 mm 40.1 mm 10 mm
No stock item (MOQ)		271520LubX® S grey pressed sheet sheet dust grey, similar RAL 70372.000 x 1.000 x 30 (-0/+0,4) mm 2,000 mm 1,000 mm 30 mm
Stock item (no MOQ)		309114LubX® S grey pressed sample sample dust grey, similar RAL 7037210 x 148 x 10 mm 210 mm 148 mm 10 mm
No stock item (MOQ)		349672LubX® S grey pressed sheet sheet dust grey, similar RAL 70376.000 x 1.000 x 35 (-0/+0,4) mm 6,000 mm 1,000 mm 35 mm
No stock item (MOQ)		349709LubX® S grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.000 x 35 mm 6,000 mm 2,000 mm 35 mm
No stock item (MOQ)		386534LubX® S grey pressed sheet sheet dust grey, similar RAL 70373000 x 2000 x 30 mm 3,000 mm 2,000 mm 30 mm
No stock item (MOQ)		400900LubX® S grey pressed sheet sheet dust grey, similar RAL 70373000 x 2000 x 8 mm 3,000 mm 2,000 mm 8 mm
No stock item (MOQ)		409582LubX® S grey pressed sheet sheet dust grey, similar RAL 70373.000 x 1.000 x 25 (-0/+0,4) mm 3,000 mm 1,000 mm 25 mm
No stock item (MOQ)		409583LubX® S grey pressed sheet sheet dust grey, similar RAL 70373.000 x 1.000 x 35 (-0/+0,4) mm 3,000 mm 1,000 mm 35 mm
No stock item (MOQ)		426464LubX® S grey pressed sheet sheet dust grey, similar RAL 70372.000 x 1.000 x 19 mm 2,000 mm 1,000 mm 19 mm
No stock item (MOQ)		426523LubX® S grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.000 x 19 mm 6,000 mm 2,000 mm 19 mm
No stock item (MOQ)		442541LubX® S grey pressed sheet sheet dust grey, similar RAL 70373.000 x 1.000 x 15 mm 3,000 mm 1,000 mm 15 mm
No stock item (MOQ)		442543LubX® S grey pressed sheet sheet dust grey, similar RAL 70373.000 x 1.000 x 10 mm 3,000 mm 1,000 mm 10 mm
No stock item (MOQ)		444221LubX® S grey pressed sheet sheet dust grey, similar RAL 70376.000 x 1.000 x 18 (-0/+0,4) mm 6,000 mm 1,000 mm 18 mm
No stock item (MOQ)		444242LubX® S grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.000 x 18 mm 6,000 mm 2,000 mm 18 mm
No stock item (MOQ)		457985LubX® S grey pressed sheet sheet dust grey, similar RAL 70373.000 x 1.000 x 8 mm 3,000 mm 1,000 mm 8 mm
No stock item (MOQ)		466202LubX® S grey pressed sheet sheet dust grey, similar RAL 70372.000 x 1.000 x 45 mm 2,000 mm 1,000 mm 45 mm
No stock item (MOQ)		466216LubX® S grey pressed sheet sheet dust grey, similar RAL 70376.000 x 2.000 x 45 mm 6,000 mm 2,000 mm 45 mm

Technical Specifications LubX® S grey extruded

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm30,93
Water absorptionDIN EN ISO 62%0,01
Flammability (Thickness 3 mm / 6 mm)UL 94HB
Non-toxicity+
Moulding Compound PEDIN ISO 1872-1UHMW-PE-QCD 35-3-4
Test MethodUnitGuideline Value
Yield stressDIN EN ISO 527MPa19
Elongation at yield stressDIN EN ISO 527%>50
Elongation at breakDIN EN ISO 527%>50
Tensile modulus of elasticityDIN EN ISO 527MPa500
Notched impact strengthDIN EN ISO 179kJ / m2no break
Shore hardnessDIN EN ISO 868scale A60
Shore hardnessDIN EN ISO 868scale D60
Test MethodUnitGuideline Value
Melting temperatureISO 11357-3°C133 ... 135
Coefficient of linear thermal expansionDIN 5375210-6 / K150 ... 230 (*)
Service temperature, long termAverage°C-150 ... 80 (*)
Service temperature, short term (max.)Average°C130 (*)
Test MethodUnitGuideline Value
Volume resistivityDIN EN 62631-3-1Ω * cm≥1015
Volume resistivityDIN EN 62631-3-1Ω * cm>1015
Surface resistivityDIN EN 62631-3-2Ω≥1014
