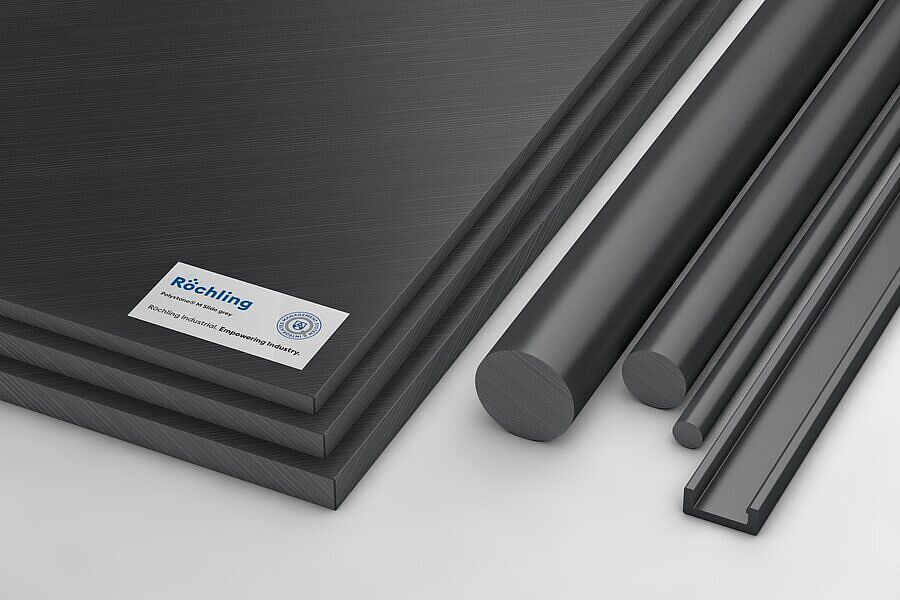

Polystone® M Slide grey

PE — PE-UHMW - PE 1000

Polystone^® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

black grey, similar RAL 7021slate grey, similar RAL 7015

profilerodsheet

Characteristics

Low coefficient of friction
Noise-reducing
Self-lubricating
UV-resistant
Good wear properties

Industries

Application Examples

闸门的滑动组件

在锁定过程中，重达数吨的钢门必须能够快速可靠地移动。使用我们的 Polystone^® M slide（PE-UHMW）材料制造的专用滑轨因具有良好的滑动性能，使得钢门无需耗用太多能量就能可靠移动。采用劳士领材料制造的滑轨可用于世界各地的闸门锁定系统，无论在巴拿马运河还是威尼斯。

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness	Height
No stock item (MOQ)	220052	Polystone® M Slide grey extruded	C-profile	C-profile (R265)	black grey, similar RAL 7021	6.000 x 90 x 14,5 mm	6,000 mm	90 mm	3.5 mm	14.5 mm
No stock item (MOQ)	242163	Polystone® M Slide grey extruded	U-profile	U-profile (R220)	slate grey, similar RAL 7015	3.000 x 17 x 20 mm	3,000 mm	17 mm	20 mm
No stock item (MOQ)	264023	Polystone® M Slide grey extruded	C-profile	C-profile (R227)	black grey, similar RAL 7021	6.000 x 50 x 14 mm	6,000 mm	50 mm	14 mm
No stock item (MOQ)	376392	Polystone® M Slide grey extruded	rod	rod	black grey, similar RAL 7021	Ø 80 x 2.000 mm	2,000 mm		80 mm
No stock item (MOQ)	402431	Polystone® M Slide grey extruded	rod	rod	black grey, similar RAL 7021	Ø 100 x 1000 mm	1,000 mm		100 mm
No stock item (MOQ)	413806	Polystone® M Slide grey extruded	U-profile	U-profile (R220)	slate grey, similar RAL 7015	2100 (-0/+50) x 17 x 20 mm	2,100 mm	17 mm	20 mm
No stock item (MOQ)	413807	Polystone® M Slide grey extruded	U-profile	U-profile (R220)	slate grey, similar RAL 7015	2450 (-0/+50) x 17 x 20 mm	2,450 mm	17 mm	20 mm
No stock item (MOQ)	210649	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	25 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	25 mm
No stock item (MOQ)	212214	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10,5 x 1000 x 2000 mm	2,000 mm	1,000 mm	10.5 mm
Stock item (no MOQ)	212571	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10 x 1000 x 2000 mm	2,000 mm	1,000 mm	10 mm
Stock item (no MOQ)	212572	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	15 x 1000 x 2000 mm	2,000 mm	1,000 mm	15 mm
Stock item (no MOQ)	212573	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
Stock item (no MOQ)	212574	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	30 x 1000 x 2000 mm	2,000 mm	1,000 mm	30 mm
Stock item (no MOQ)	212576	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	15 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	15 mm
Stock item (no MOQ)	212577	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	20 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	217713	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	14 (-0/+0,5) x 1000 x 2000 mm	2,000 mm	1,000 mm	14 mm
No stock item (MOQ)	217854	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	7 x 1000 x 2000 mm	2,000 mm	1,000 mm	7 mm
No stock item (MOQ)	218405	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	8 x 1000 x 2000 mm	2,000 mm	1,000 mm	8 mm
No stock item (MOQ)	218406	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	14 x 1000 x 2000 mm	2,000 mm	1,000 mm	14 mm
No stock item (MOQ)	218407	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	25 x 1000 x 2000 mm	2,000 mm	1,000 mm	25 mm
Stock item (no MOQ)	218408	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	40 x 1000 x 2000 mm	2,000 mm	1,000 mm	40 mm
Stock item (no MOQ)	218409	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	50 x 1000 x 2000 mm	2,000 mm	1,000 mm	50 mm
Stock item (no MOQ)	218411	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	10 mm
No stock item (MOQ)	222584	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	6 x 1000 x 2000 mm	2,000 mm	1,000 mm	6 mm
No stock item (no MOQ)	226638	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	30 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	30 mm
Stock item (no MOQ)	229140	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	60 x 1000 x 2000 mm	2,000 mm	1,000 mm	60 mm
No stock item (MOQ)	229141	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	80 x 1000 x 2000 mm	2,000 mm	1,000 mm	80 mm
Stock item (no MOQ)	229142	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	12 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	12 mm
No stock item (MOQ)	236621	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	12 x 1000 x 2000 mm	2,000 mm	1,000 mm	12 mm
No stock item (MOQ)	243367	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10 x 2000 x 6000 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	246114	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	13 (-0/+0,2) x 1000 x 2000 mm	2,000 mm	1,000 mm	13 mm
No stock item (MOQ)	250688	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	14 x 2000 x 6000 mm	6,000 mm	2,000 mm	14 mm
No stock item (MOQ)	263321	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	40 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	40 mm
No stock item (MOQ)	267915	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	276785	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	15 x 2000 x 6000 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	277012	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10 x 2500 x 6000 mm	6,000 mm	2,500 mm	10 mm
No stock item (MOQ)	277013	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	15 x 2500 x 6000 mm	6,000 mm	2,500 mm	15 mm
No stock item (MOQ)	277014	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	20 x 2500 x 6000 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	277015	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	25 x 2500 x 6000 mm	6,000 mm	2,500 mm	25 mm
No stock item (MOQ)	277018	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	7 x 2000 x 6000 mm	6,000 mm	2,000 mm	7 mm
No stock item (MOQ)	277019	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	8 x 2000 x 6000 mm	6,000 mm	2,000 mm	8 mm
No stock item (MOQ)	277139	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	25 x 2000 x 6000 mm	6,000 mm	2,000 mm	25 mm
No stock item (MOQ)	277158	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	30 x 2000 x 6000 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	277159	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	40 x 2000 x 6000 mm	6,000 mm	2,000 mm	40 mm
No stock item (MOQ)	277314	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	12 x 2000 x 6000 mm	6,000 mm	2,000 mm	12 mm
No stock item (MOQ)	277317	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	80 x 1000 x 6000 mm	6,000 mm	1,000 mm	80 mm
No stock item (MOQ)	277662	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	13 x 2000 x 6000 mm	6,000 mm	2,000 mm	13 mm
No stock item (MOQ)	277709	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	32 x 2000 x 6000 mm	6,000 mm	2,000 mm	32 mm
No stock item (MOQ)	278051	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	12 x 2500 x 6000 mm	6,000 mm	2,500 mm	12 mm
No stock item (MOQ)	278103	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	40 x 2500 x 6000 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	278227	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	30 x 2500 x 6000 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	281601	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10 x 2000 x 4000 mm	4,000 mm	2,000 mm	10 mm
No stock item (MOQ)	293926	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	70 x 1000 x 2000 mm	2,000 mm	1,000 mm	70 mm
No stock item (MOQ)	310548	Polystone® M Slide grey pressed	sheet	sheet	slate grey, similar RAL 7015	15 x 1000 x 6000 mm	6,000 mm	1,000 mm	15 mm
No stock item (MOQ)	310599	Polystone® M Slide grey pressed	sheet	sheet	slate grey, similar RAL 7015	15 x 2000 x 6000 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	315017	Polystone® M Slide grey pressed	sheet	sheet	slate grey, similar RAL 7015	15 x 1000 x 2000 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	326677	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	25 (-0/+0,4) x 1000 x 6000 mm	6,000 mm	1,000 mm	25 mm
No stock item (MOQ)	328420	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	40 x 1000 x 6000 mm	6,000 mm	1,000 mm	40 mm
No stock item (MOQ)	346981	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10,5 x 2000 x 6000 mm	6,000 mm	2,000 mm	10.5 mm
No stock item (MOQ)	377383	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	60 x 2000 x 4000 mm	4,000 mm	2,000 mm	60 mm
No stock item (MOQ)	378607	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	130 x 1000 x 2000 mm	2,000 mm	1,000 mm	130 mm
No stock item (MOQ)	378608	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	120 x 1000 x 2000 mm	2,000 mm	1,000 mm	120 mm
No stock item (MOQ)	404495	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	60 x 2000 x 6000 mm	6,000 mm	2,000 mm	60 mm
No stock item (MOQ)	409980	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	90 x 1000 x 2000 mm	2,000 mm	1,000 mm	90 mm
Stock item (no MOQ)	410774	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10,5 x 1000 x 3000 mm	3,000 mm	1,000 mm	10.5 mm
Stock item (no MOQ)	410776	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	14 (-0/+0,5) x 1000 x 3000 mm	3,000 mm	1,000 mm	14 mm
No stock item (MOQ)	413880	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	14 (-0/+0,5) x 2000 x 6000 mm	6,000 mm	2,000 mm	14 mm
No stock item (MOQ)	419205	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	10 x 1000 x 3000 mm	3,000 mm	1,000 mm	10 mm
No stock item (MOQ)	419207	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	12 x 1000 x 3000 mm	3,000 mm	1,000 mm	12 mm
No stock item (MOQ)	420631	Polystone® M Slide grey pressed	sheet	sheet	slate grey, similar RAL 7015	10 x 2000 x 2000 mm	2,000 mm	2,000 mm	10 mm
No stock item (MOQ)	420664	Polystone® M Slide grey pressed	sheet	sheet	slate grey, similar RAL 7015	10 x 2000 x 6000 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	429733	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	50 x 2000 x 6000 mm	6,000 mm	2,000 mm	50 mm
No stock item (MOQ)	461303	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	100 x 1000 x 2000 mm	2,000 mm	1,000 mm	100 mm
No stock item (MOQ)	474307	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	80 x 2000 x 6000 mm	6,000 mm	2,000 mm	80 mm
No stock item (MOQ)	475289	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	32 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	32 mm
No stock item (MOQ)	479230	Polystone® M Slide grey pressed	sheet	sheet	black grey, similar RAL 7021	12 x 1000 x 6000 mm	6,000 mm	1,000 mm	12 mm

Technical Specifications Polystone® M Slide grey extruded

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,95
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>20
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>600
Notched impact strength	DIN EN ISO 11542	kJ / m²	>110
Shore hardness	DIN EN ISO 868	scale D	>60

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40

Technical Specifications Polystone® M Slide grey pressed

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,95
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>20
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>600
Notched impact strength	DIN EN ISO 11542	kJ / m²	>110
Shore hardness	DIN EN ISO 868	scale D	>60

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40

Downloads

Technical Data Sheet Polystone® M Slide grey extruded

Technical Data Sheet Polystone® M Slide grey pressed

Product Handling Information Sheet Polystone® M Slide grey extruded

Product Handling Information Sheet Polystone® M Slide grey pressed

Brochure - Roechling Industrial Extruded Profile - EN DE

Flyer - Polystone M Profiles - JP
