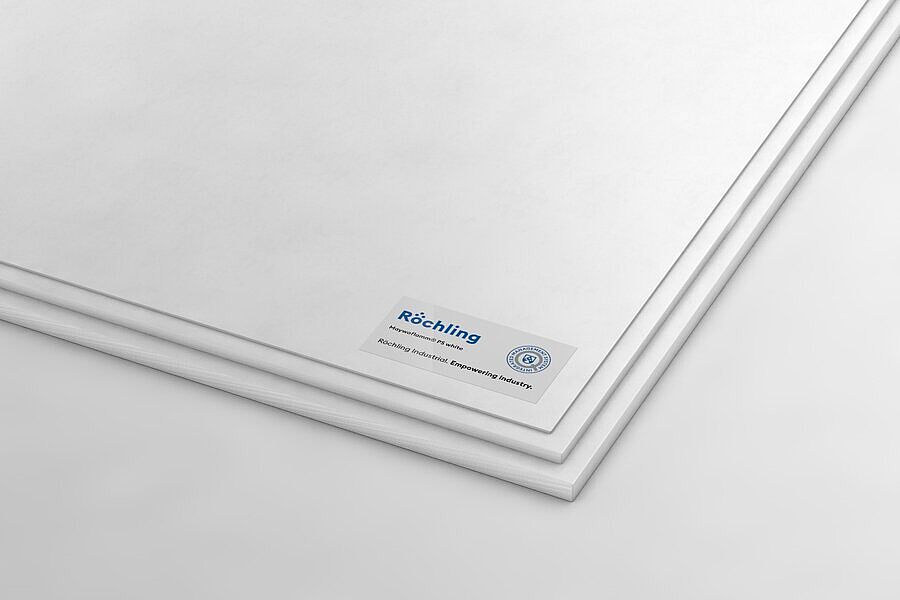

MAYWOflamm® PS
PS
Maywoflamm® flame retardent plastics are mainly used in the fields of transportation, housing construction, the electrical sector, and the construction industry. Depending on the requirements, there are various fire tests that can be performed in-house at Röchling or at external testing laboratories.
The most widely recognized standard for defining the flammability of plastic materials is the UL 94 rating, a standard issued by Underwriter Laboratories, an independent product safety certification company.
Technical Specifications MAYWOflamm® PS
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,16 |
| Flammability | UL 94 | V0 (2mm) |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 19 |
| Elongation at break | DIN EN ISO 527 | % | 44 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2033 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 8 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | > 150 °C |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,17 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 90 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 87 |
| Glow wire test | DIN EN 60695-2 | °C | 825 (0,5mm/ 0,8mm) |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Surface resisitivity | DIN EN 61340 | Ω | > 1012 |
| Volume resistivity | DIN EN 61340 | Ω | > 1012 |
