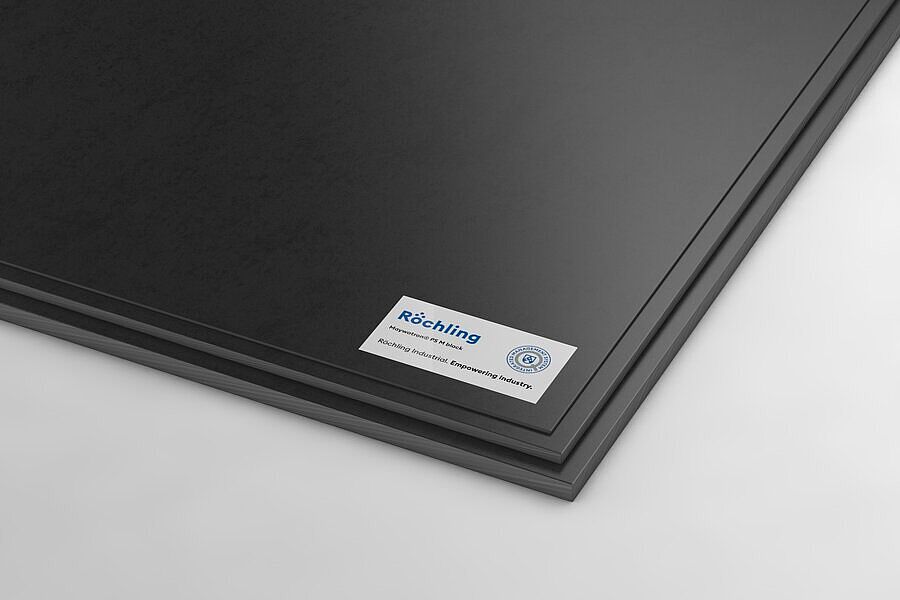

Maywotron® PS M
PS
Maywotron® products are electrically conductive or dissipative plastics with a surface resistivity and volume resistivity which actually prevent electrostatic charge in the first place by guaranteeing a high charge dissipation capability.
Maywotron® products are mainly used in the transport, packaging, electronics and automotive sectors (e.g. transport trays, crates, storage boxes, blister strips and blister packs) and in electrostatic protected areas (EPA).
Technical Specifications Maywotron® PS M
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,1 |
| Water absorption | DIN EN ISO 62 | % | 0,1 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 19 |
| Elongation at break | DIN EN ISO 527 | % | 29 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 1614 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 8 |
| Shore hardness | DIN EN ISO 868 | scale D | 74 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | >170°C |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,17 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 90 |
| Service temperature, long term | Average | °C | 80 |
| Service temperature, short term (max.) | Average | °C | 95 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 97 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Surface resisitivity | DIN EN 61340 | Ω | 104 - 106 |
| Volume resistivity | DIN EN 61340 | Ω | 104 - 106 |
