Trovidur® EC-FR

PVC-U

Your partner for PVC-U sheets ‘Made in Germany’

Trovidur® EC-FR White is tested in accordance with the specifications of FM 4910: “FM Approvals specification tested”. The PVC-U material meets the highest fire specifications in accordance with FM 4910 - perfect for safe and sustainable use in semiconductor and cleanroom technology applications. The material properties support employee safety, reduce contamination and help to reduce plant downtime.

T-FR1130 whiteT-1013 ivory

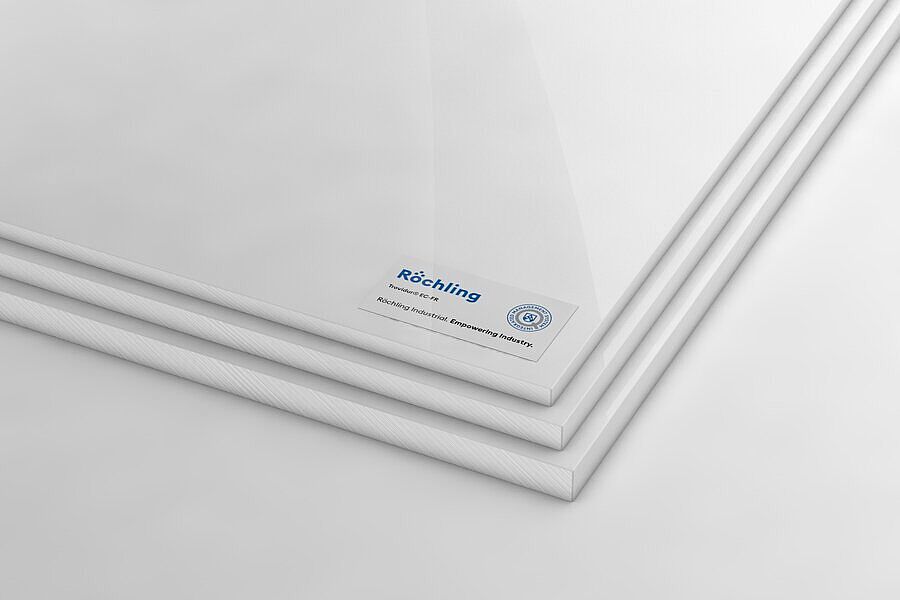

sheet

Characteristics

Clean Room Material

Industries

洁净室技术
Semiconductor Industry

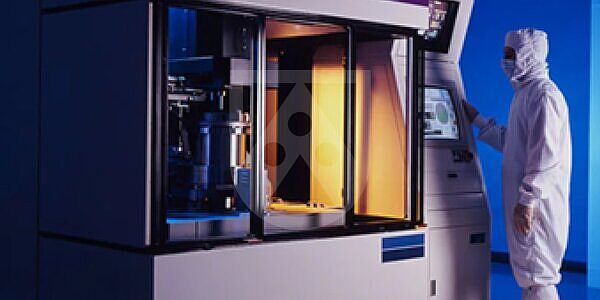

Semiconductor factory equipment
Semiconductor Front-End applications
Semiconductor Front-End Wet Bench

Application Examples

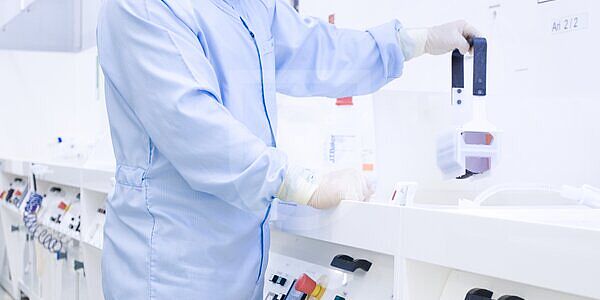

Wet bench with Trovidur® EC-FR

Trovidur^® EC-FR sheets are approved to FM4910, which is often a pre-requisite for construction materials for components in the semi-conductor industry. The FM4910 approval attests to the particularly flame-retardant properties of Trovidur^® EC-FR. At the same time, the material offers very high levels of chemical resistance, which is a pre-requisite for the construction of “Wet Benches”.

We are proud to offer Trovidur® EC-FR, a PVC-U sheet, an FM4910 listed product from Germany for the promising semiconductor industry worldwide.
Christoph Zell - Product Manager Trovidur - E-Mail: czell@roechling.com

Did you know that...

our Trovidur® EC-FR material is perfect for: Semiconductor industry, Machine enclosure, Wall panelling, Cleanroom panelling or Ventilation construction.

Perfect for Cleanroom technology

With its fire behavior and low smoke development, Trovidur® EC-FR White FR1130 is suitable for use in clean rooms.

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
Stock item (no MOQ)	458134	Trovidur® EC-FR SD beige extruded	welding rod	welding rod	T-1013 ivory	Ø 4 mm			4 mm
No stock item (MOQ)	469745	Trovidur® EC-FR SD white extruded	welding rod	welding rod	T-FR1130 white	6,1 x 3,1 mm		6.1 mm	3.1 mm
No stock item (MOQ)	469747	Trovidur® EC-FR SD white extruded	welding rod	welding rod	T-FR1130 white	Ø 3 mm			3 mm
No stock item (MOQ)	475716	Trovidur® EC-FR SD white extruded	welding rod	welding rod	T-FR1130 white	5 x 3,5 mm		5 mm	3.5 mm
No stock item (MOQ)	477789	Trovidur® EC-FR SD white extruded	welding rod	welding rod	T-FR1130 white	Ø 3 x 1000 mm	1,000 mm		3 mm
No stock item (MOQ)	477841	Trovidur® EC-FR SD white extruded	welding rod	welding rod	T-FR1130 white	1000 x 6,1 x 3,1 mm	1,000 mm	6.1 mm	3.1 mm
Stock item (no MOQ)	489482	Trovidur® EC-FR SD white extruded	welding rod	welding rod	T-FR1130 white	Ø 4 mm			4 mm
Stock item (no MOQ)	474140	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	3.000 x 1.500 x 6 mm	3,000 mm	1,500 mm	6 mm
Stock item (no MOQ)	499473	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	3.000 x 1.500 x 15 mm	3,000 mm	1,500 mm	15 mm
Stock item (no MOQ)	499475	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	3.000 x 1.500 x 20 mm	3,000 mm	1,500 mm	20 mm
Stock item (no MOQ)	499844	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	3.000 x 1.500 x 10 mm	3,000 mm	1,500 mm	10 mm
Stock item (no MOQ)	509047	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	3.000 x 1.500 x 8 mm	3,000 mm	1,500 mm	8 mm
Stock item (no MOQ)	509050	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	3.000 x 1.500 x 12 mm	3,000 mm	1,500 mm	12 mm
Stock item (no MOQ)	509052	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	2.000 x 1.000 x 25 mm	2,000 mm	1,000 mm	25 mm
Stock item (no MOQ)	509070	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
Stock item (no MOQ)	509071	Trovidur® EC-FR white extruded	sheet	sheet	T-FR1130 white	2.000 x 1.000 x 40 mm	2,000 mm	1,000 mm	40 mm
No stock item (MOQ)	458913	Trovidur® EC-FR beige extruded	sheet	sheet	T-1013 ivory	3.000 x 1.500 x 10 mm	3,000 mm	1,500 mm	10 mm
No stock item (MOQ)	458914	Trovidur® EC-FR beige extruded	sheet	sheet	T-1013 ivory	3.000 x 1.500 x 12 mm	3,000 mm	1,500 mm	12 mm
No stock item (MOQ)	458915	Trovidur® EC-FR beige extruded	sheet	sheet	T-1013 ivory	3.000 x 1.500 x 15 mm	3,000 mm	1,500 mm	15 mm
No stock item (MOQ)	458916	Trovidur® EC-FR beige extruded	sheet	sheet	T-1013 ivory	3.000 x 1.500 x 20 mm	3,000 mm	1,500 mm	20 mm
No stock item (MOQ)	460736	Trovidur® EC-FR beige extruded	sheet	sheet	T-1013 ivory	3.000 x 1.500 x 8 mm	3,000 mm	1,500 mm	8 mm
No stock item (MOQ)	469589	Trovidur® EC-FR beige extruded	sheet	sheet	T-1013 ivory	3.000 x 1.500 x 6 mm	3,000 mm	1,500 mm	6 mm

Technical Specifications Trovidur® EC-FR

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	∼1,46
Water absorption	DIN EN ISO 62	%	0,2
Cleanroom Materials Flammability Test Protocol (Thickness 6...40 mm)	FM 4910		listed

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	50
Elongation at break	DIN EN ISO 527	%	20
Tensile modulus of elasticity	DIN EN ISO 527	MPa	3000
Notched impact strength	DIN EN ISO 179	kJ / m²	4
Shore hardness	DIN EN ISO 868	scale D	82
Ball indentation hardness	DIN EN ISO 2039-1	MPa	115
Compressive strength	DIN EN ISO 604	MPa	75
Bending strength	DIN EN ISO 178	MPa	80

	Test Method	Unit	Guideline Value
Thermal conductivity	DIN EN ISO 8302	W / (m * K)	0,16
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	75
Service Temperature		°C	-15 ... +60
Heat deflection temperature	DIN EN ISO 75	°C	70
Coefficient of linear thermal expansion	DIN EN ISO 11359-2	mm/m K	∼0,075
Glow wire ignition tempearture	DIN EN 60695-2-13	°C	990
Glow wire flammability index	DIN EN 60695-2-12	°C	960

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		∼3,2
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		∼0,02
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁵
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹³
Dielectric strength	IEC 60243	kV / mm	12
Comparative tracking index	IEC 60112	CTI	600

Downloads

Technical Data Sheet Trovidur® EC-FR

Product Handling Information Sheet Trovidur® EC-FR
