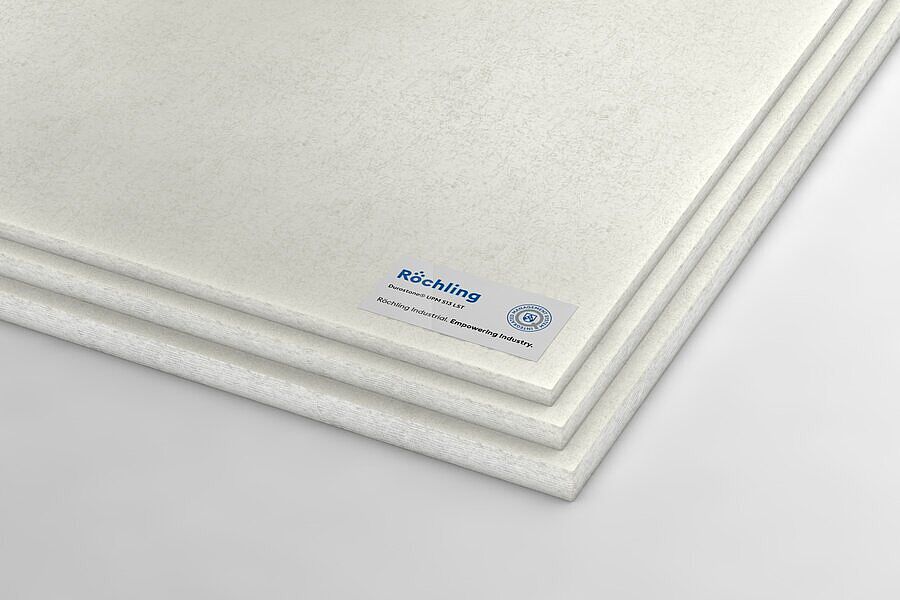

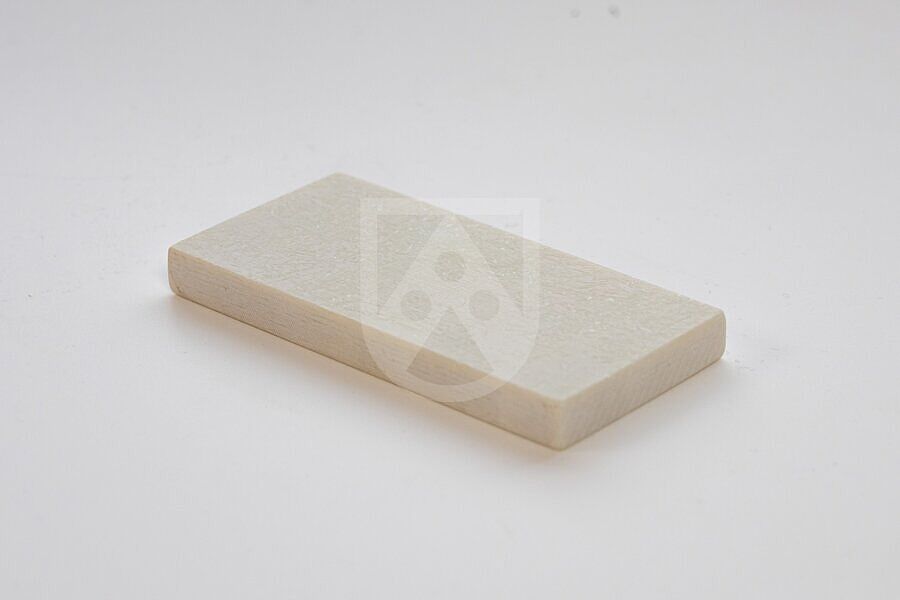

Durostone® UPM S13 LST
GFK-UP
Durostone® UPM S13 LST 是一种纤维增强塑料，具有卓越的燃烧性能。塑料的阻燃性达到特定值FVO /> 1mm。低毒低烟性能让其成为Durostone的特色产品。
sheet
Characteristics
- SMC high-pressure laminate
- Special polyester (UP) resin matrix reinforced with an e-glass roving mat
- High mechanical strength
- High dielectric strength
- Flame retardant
Industries
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 101511 | Durostone® UPM S13/LST pressed | sheet | sheet | 6 (+/-0,6) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 6 mm | |||
| Stock item (no MOQ) | 101512 | Durostone® UPM S13/LST pressed | sheet | sheet | 10 (+/-0,8) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 10 mm | |||
| No stock item (MOQ) | 101513 | Durostone® UPM S13/LST pressed | sheet | sheet | 12 (+/-0,9) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 12 mm | |||
| Stock item (no MOQ) | 101514 | Durostone® UPM S13/LST pressed | sheet | sheet | 14 (+/-1) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 14 mm | |||
| Stock item (no MOQ) | 101516 | Durostone® UPM S13/LST pressed | sheet | sheet | 17 (+/-1,2) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 17 mm | |||
| Stock item (no MOQ) | 210126 | Durostone® UPM S13/LST pressed | sheet | sheet | 5 (+/-0,55) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 5 mm | |||
| No stock item (MOQ) | 210127 | Durostone® UPM S13/LST pressed | sheet | sheet | 7 (+/-0,65) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 7 mm | |||
| No stock item (MOQ) | 210128 | Durostone® UPM S13/LST pressed | sheet | sheet | 8 (+/-0,7) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 8 mm | |||
| No stock item (MOQ) | 210131 | Durostone® UPM S13/LST pressed | sheet | sheet | 25 (+/-1,4) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 25 mm | |||
| Stock item (no MOQ) | 246905 | Durostone® UPM S13/LST pressed | sheet | sheet | 16 (+/-1) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 16 mm | |||
| No stock item (MOQ) | 312164 | Durostone® UPM S13/LST pressed | sheet | sheet | 15 (+/-1,05) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 15 mm | |||
| No stock item (MOQ) | 322905 | Durostone® UPM S13/LST pressed | sheet | sheet | 20 (+/-1,3) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 20 mm | |||
| No stock item (MOQ) | 425751 | Durostone® UPM S13/LST pressed | sheet | sheet | 38 (+/-1,55) x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 38 mm |
Technical Specifications Durostone® UPM S13 LST
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | ISO 1183 | g / cm3 | 2,1 |
| Flexural strength ┴ | ISO 178 | MPa | 160 |
| Modulus of elasticity in flexion ┴ | ISO 178 | MPa | 12000 |
| Compressive strength ┴ | ISO 604 | MPa | 280 |
| Compressive strength II | ISO 604 | MPa | 180 |
| Tensile strength II | ISO 527 | MPa | 80 |
| Impact strength II (Charpy) | ISO 179 | kJ / m2 | 100 |
| Shear strength ┴ | BS 2782/340B | MPa | 85 |
| Shear strength II | BS 2782/340B | MPa | 80 |
| Delamination force II | DIN 53463 | N | 2000 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Flammability | UL 94 | / | V0 / 1mm |
| Glow-wire flammability test | EN 60695-2-11 | °C | 960 |
| Coefficient of linear expansion II | TMA (Mettler) | 10-6 x K-1 | ≈ 20 |
| Flammability req. R1 | DIN EN 45545-2 | HL3 | |
| Flammability req. R7 | DIN EN 45545-2 | HL3 | |
| Flammability req. R17 | DIN EN 45545-2 | HL3 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Water absorption (method 1) | ISO 62 | % | 0,1 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Electric strength 90°C under oil ┴ | IEC 60243 | kV / mm | 13 |
| Electric strength 90°C under oil II | IEC 60243 | kV/25mm | 75 |
| Specific surface resistance | IEC 60093 | Ω | 1014 |
| Specific volume resistance | IEC 60093 | Ω x cm | 1013 |
| Comparative tracking index (test solution B) | IEC 60112 | CTI | 600 M |
