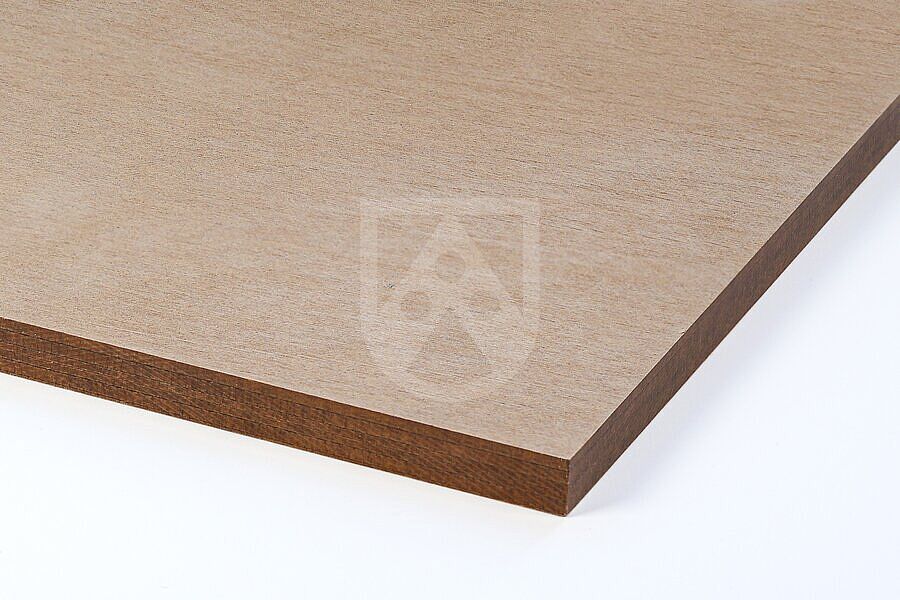

Trafoboard® HD-PH

Pressboard

适用于油浸式电力变压器的高性能绝缘产品

一个世纪的经验近一个世纪以来，劳士领一直在生产用于高压变压器的绝缘材料 Lignostone® Transformerwood®。这种材料表现出色，在国际变压器行业享有盛誉。借助于 Trafoboard® HD-PH®，劳士领现在可以为油浸式高压变压器绝缘部件生产的绝缘材料系列已拓展到高品质层压纸板。Trafoboard® HD-PH 代表着高品质、优异的电气和机械性能、高化学纯度和精密公差。Trafoboard® HD-PH 密度为1.15 - 1.35 g/cm³，由符合 IEC 60641 标准的纯纤维素制成的高密度压制板层组成，并通过符合 IEC 60763 标准 LB 3.1A.2 型要求的酚醛胶永久粘接。

机加工部件专业人员

我们的优势是根据客户的图纸生产具有精密公差的 CNC 机加工部件。我们利用多功能现代化 CNC 专用机床和自动机床完成任务。

sheetthreaded rodscrew nut
QR-Code

Characteristics

  • Phenolic-resin glued pressboard according to IEC 60763-3-1 type LB 3.1A.2
  • Made from hot pressed transformer pressboard, 100% unbleached sulphate cellulose, according to IEC 60641-3-1 type 3.1
  • Electrically insulating
  • Good mechanical properties

Industries

Application Examples

+

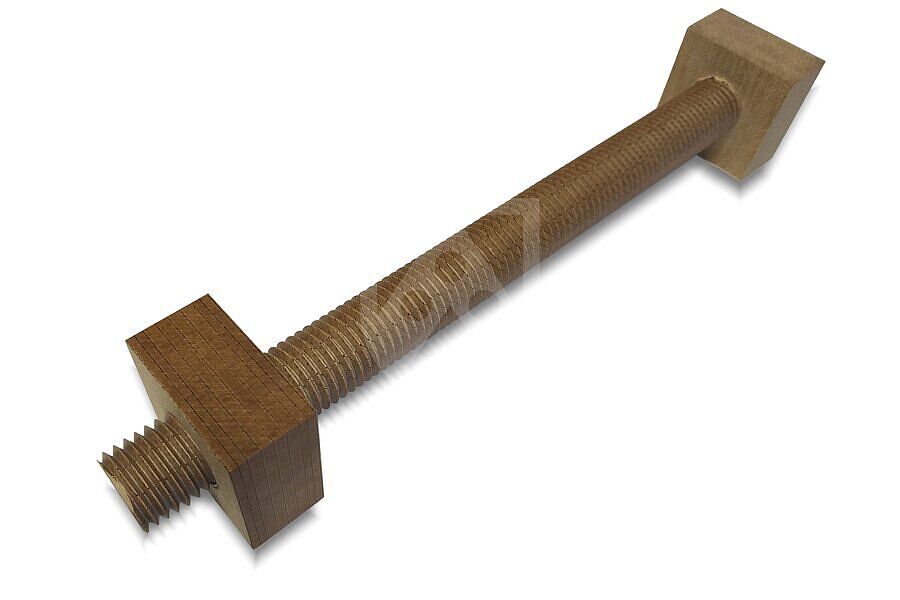

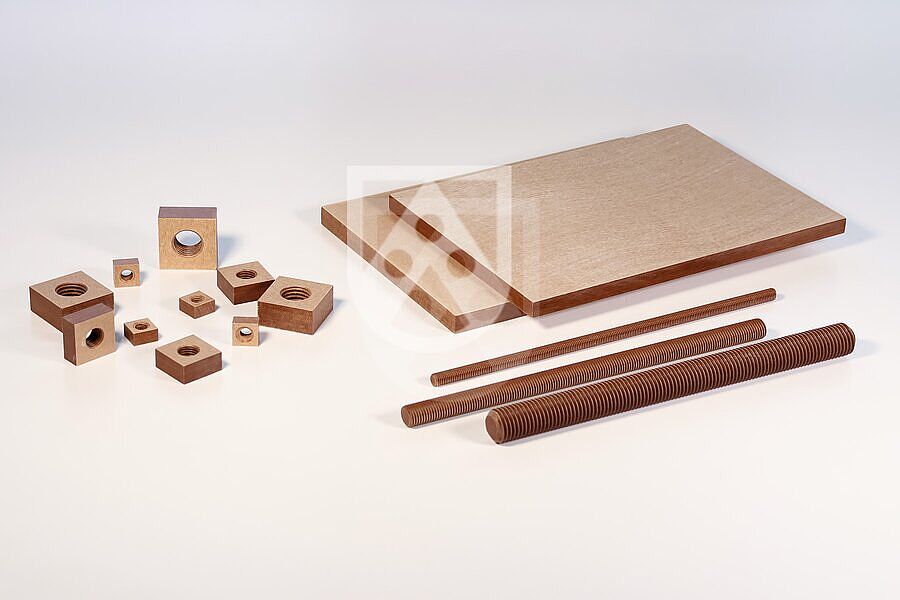

Trafoboard® HD-PH 紧固件

在构建油浸式变压器时，我们为您提供使用层压纸板通过酚醛树脂粘合工艺制成的 Trafoboard® HD-PH 紧固件。Trafoboard® HD-PH独特的酚醛树脂粘合工艺可实现最高的电气性能，并有助于提高油浸式变压器的运行可靠性。

+

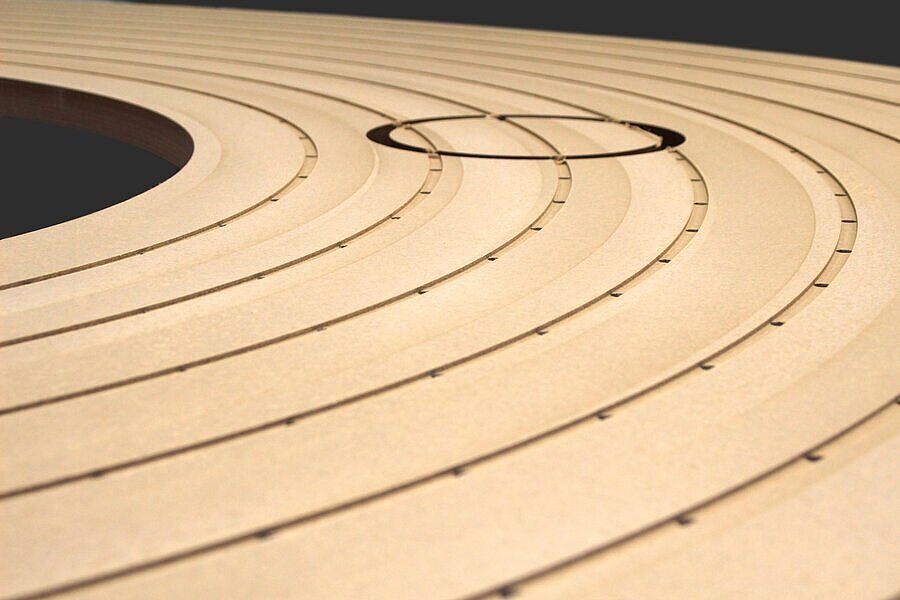

结构组件 - Trafoboard®

我们使用 Trafoboard® HD-PH 为油浸式高压变压器中的绝缘部件提供层压纸板。Trafoboard® HD-PH 化学纯度高，具有出色的电气和机械性能。劳士领公司与奥斯纳布吕克大学在开发上密切合作。知名制造商非常信赖采用高品质层压纸板制造的绝缘部件。

Variants

Show product in Webshop
SKUNameTypeTypeColorMeasurementsLengthWidthThicknessHeight
No stock item (MOQ)		290911Trafoboard® HD-PH pressed sheet sheet 50 (+/-2) x 2150 x 4150 mm 4,150 mm 2,150 mm 50 mm
No stock item (MOQ)		296297Trafoboard® HD-PH pressed sheet sheet 40 (+/-1,6) x 2150 x 4150 mm 4,150 mm 2,150 mm 40 mm
No stock item (MOQ)		296729Trafoboard® HD-PH pressed sheet sheet 20 (+/-2) x 2150 x 4150 mm 4,150 mm 2,150 mm 20 mm
No stock item (MOQ)		296733Trafoboard® HD-PH pressed sheet sheet 28 (+/-2) x 2150 x 4150 mm 4,150 mm 2,150 mm 28 mm
No stock item (MOQ)		299527Trafoboard® HD-PH pressed sheet sheet 30 (+/-1,2) x 2150 x 4150 mm 4,150 mm 2,150 mm 30 mm
No stock item (MOQ)		299549Trafoboard® HD-PH pressed sheet sheet 60 (+/-2,4) x 2150 x 4150 mm 4,150 mm 2,150 mm 60 mm
No stock item (MOQ)		302547Trafoboard® HD-PH pressed sheet sheet 10 (+/-0,5) x 2150 x 4150 mm 4,150 mm 2,150 mm 10 mm
No stock item (MOQ)		302549Trafoboard® HD-PH pressed sheet sheet 12 (+/-0,6) x 2150 x 4150 mm 4,150 mm 2,150 mm 12 mm
No stock item (MOQ)		302550Trafoboard® HD-PH pressed sheet sheet 14 (+/-0,56) x 2150 x 4150 mm 4,150 mm 2,150 mm 14 mm
No stock item (MOQ)		302555Trafoboard® HD-PH pressed sheet sheet 25 (+/-1) x 2150 x 4150 mm 4,150 mm 2,150 mm 25 mm
No stock item (MOQ)		302558Trafoboard® HD-PH pressed sheet sheet 40 (+/-2) x 2150 x 4150 mm 4,150 mm 2,150 mm 40 mm
No stock item (MOQ)		302559Trafoboard® HD-PH pressed sheet sheet 50 (+/-2,5) x 2150 x 4150 mm 4,150 mm 2,150 mm 50 mm
No stock item (MOQ)		314489Trafoboard® HD-PH pressed sheet sheet 25 (-0/+2,5) x 2150 x 4150 mm 4,150 mm 2,150 mm 25 mm
No stock item (MOQ)		319826Trafoboard® HD-PH pressed sheet sheet 87 (+/-1,5) x 2150 x 4150 mm 4,150 mm 2,150 mm 87 mm
No stock item (MOQ)		321930Trafoboard® HD-PH pressed sheet sheet 15 (+/-0,6) x 2150 x 4150 mm 4,150 mm 2,150 mm 15 mm
No stock item (MOQ)		322040Trafoboard® HD-PH pressed sheet sheet 45 (+/-1,8) x 2150 x 4150 mm 4,150 mm 2,150 mm 45 mm
No stock item (MOQ)		322157Trafoboard® HD-PH pressed sheet sheet 16 (+/-0,8) x 2150 x 4150 mm 4,150 mm 2,150 mm 16 mm
No stock item (MOQ)		325776Trafoboard® HD-PH pressed sheet sheet 57 (+/-2,5) x 2150 x 4150 mm 4,150 mm 2,150 mm 57 mm
No stock item (MOQ)		330986Trafoboard® HD-PH pressed sheet sheet 25 (+/-1) x 2150 x 4150 mm 4,150 mm 2,150 mm 25 mm
No stock item (MOQ)		330987Trafoboard® HD-PH pressed sheet sheet 35 (+/-1,4) x 2150 x 4150 mm 4,150 mm 2,150 mm 35 mm
No stock item (MOQ)		330991Trafoboard® HD-PH pressed sheet sheet 60 (+/-2,4) x 2150 x 4150 mm 4,150 mm 2,150 mm 60 mm
Stock item (no MOQ)		334019Trafoboard® HD-PH pressed threaded rod threaded rod M 16 x 950 mm 950 mm 16 mm
No stock item (MOQ)		335487Trafoboard® HD-PH pressed sheet sheet 80 (+/-3,2) x 2150 x 4150 mm 4,150 mm 2,150 mm 80 mm
No stock item (MOQ)		356787Trafoboard® HD-PH pressed sheet sheet 40 (-0/+3,2) x 2150 x 4150 mm 4,150 mm 2,150 mm 40 mm
Stock item (no MOQ)		365973Trafoboard® HD-PH pressed threaded rod threaded rod M 12 x 950 mm 950 mm 12 mm
Stock item (no MOQ)		365974Trafoboard® HD-PH pressed threaded rod threaded rod M 20 x 950 mm 950 mm 20 mm
Stock item (no MOQ)		365976Trafoboard® HD-PH pressed threaded rod threaded rod M 24 x 950 mm 950 mm 24 mm
Stock item (no MOQ)		365977Trafoboard® HD-PH pressed Square Square M 24 SW=44 H=20 44 mm 44 mm 20 mm 24 mm
Stock item (no MOQ)		365978Trafoboard® HD-PH pressed Square Square M 16 SW=34 H=15 34 mm 34 mm 16 mm 15 mm
Stock item (no MOQ)		365979Trafoboard® HD-PH pressed Square Square M 20 SW=40 H=20 40 mm 40 mm 20 mm 20 mm
Stock item (no MOQ)		365980Trafoboard® HD-PH pressed Square Square M 12 SW=28 H=15 28 mm 28 mm 15 mm 12 mm
No stock item (MOQ)		400149Trafoboard® HD-PH pressed sheet sheet 30 (-0/+2) x 2150 x 4150 mm 4,150 mm 2,150 mm 30 mm
No stock item (MOQ)		405162Trafoboard® HD-PH pressed sheet sheet 20 (-0/+2) x 2150 x 4150 mm 4,150 mm 2,150 mm 20 mm
No stock item (MOQ)		405163Trafoboard® HD-PH pressed sheet sheet 10 (-0/+2) x 2150 x 4150 mm 4,150 mm 2,150 mm 10 mm
No stock item (MOQ)		416387Trafoboard® HD-PH pressed sheet sheet 15 (-0/+2) x 2150 x 4150 mm 4,150 mm 2,150 mm 15 mm
No stock item (MOQ)		416388Trafoboard® HD-PH pressed sheet sheet 105 (-0/+4) x 2150 x 4150 mm 4,150 mm 2,150 mm 105 mm
No stock item (MOQ)		416389Trafoboard® HD-PH pressed sheet sheet 45 (-0/+3,2) x 2150 x 4150 mm 4,150 mm 2,150 mm 45 mm
No stock item (MOQ)		416391Trafoboard® HD-PH pressed sheet sheet 35 (-0,0/+2,0) x 2150 x 4150 mm 4,150 mm 2,150 mm 35 mm
No stock item (MOQ)		416393Trafoboard® HD-PH pressed sheet sheet 50 (-0/+3,2) x 2150 x 4150 mm 4,150 mm 2,150 mm 50 mm
Stock item (no MOQ)		419070Trafoboard® HD-PH pressed threaded rod threaded rod M 8 x 950 mm 950 mm 8 mm
Stock item (no MOQ)		419073Trafoboard® HD-PH pressed threaded rod threaded rod M 10 x 950 mm 950 mm 10 mm
Stock item (no MOQ)		419074Trafoboard® HD-PH pressed Square Square M 10 SW=19 H=D 19 mm 19 mm 10 mm 10 mm
Stock item (no MOQ)		419075Trafoboard® HD-PH pressed Square Square M 8 SW=14 H=10 14 mm 14 mm 10 mm 8 mm
No stock item (MOQ)		440662Trafoboard® HD-PH pressed sheet sheet 10 (+/-0,5) x 2050 x 3100 mm 3,100 mm 2,050 mm 10 mm
No stock item (MOQ)		441808Trafoboard® HD-PH pressed sheet sheet 97 (+/-4,9) x 2150 x 4150 mm 4,150 mm 2,150 mm 97 mm
No stock item (MOQ)		445419Trafoboard® HD-PH pressed sheet sheet 126 (+/-5,04) x 1550 x 3100 mm 3,100 mm 1,550 mm 126 mm
No stock item (MOQ)		446467Trafoboard® HD-PH pressed sheet sheet 12,7 (+/-0,64) x 2050 x 3100 mm 3,100 mm 2,050 mm 12.7 mm
No stock item (MOQ)		446468Trafoboard® HD-PH pressed sheet sheet 9,5 (+/-0,48) x 2050 x 3100 mm 3,100 mm 2,050 mm 9.5 mm
No stock item (MOQ)		446973Trafoboard® HD-PH pressed sheet sheet 50 (-0/+4) x 2050 x 3100 mm 3,100 mm 2,050 mm 50 mm
No stock item (MOQ)		447822Trafoboard® HD-PH pressed sheet sheet 25,4 (+/-1,02) x 2050 x 3100 mm 3,100 mm 2,050 mm 25.4 mm
No stock item (MOQ)		448492Trafoboard® HD-PH pressed sheet sheet 110 (+/-4,4) x 2150 x 4150 mm 4,150 mm 2,150 mm 110 mm
No stock item (MOQ)		448643Trafoboard® HD-PH pressed sheet sheet 19,05 (+/-0,76) x 2050 x 3100 mm 3,100 mm 2,050 mm 19.05 mm
No stock item (MOQ)		448644Trafoboard® HD-PH pressed sheet sheet 38,1 (+/-1,52) x 2100 x 3200 mm 3,200 mm 2,100 mm 38.1 mm
No stock item (MOQ)		448645Trafoboard® HD-PH pressed sheet sheet 50,8 (+/-2,03) x 2100 x 3200 mm 3,200 mm 2,100 mm 50.8 mm
No stock item (MOQ)		449043Trafoboard® HD-PH pressed sheet sheet 40 (-0/+4) x 2050 x 3100 mm 3,100 mm 2,050 mm 40 mm
No stock item (MOQ)		451551Trafoboard® HD-PH pressed sheet sheet 30 (+/-1,2) x 2050 x 3100 mm 3,100 mm 2,050 mm 30 mm
No stock item (MOQ)		451552Trafoboard® HD-PH pressed sheet sheet 50 (+/-2) x 2050 x 3100 mm 3,100 mm 2,050 mm 50 mm
No stock item (MOQ)		451878Trafoboard® HD-PH pressed sheet sheet 12 (+/-0,6) x 2050 x 3100 mm 3,100 mm 2,050 mm 12 mm
No stock item (MOQ)		454248Trafoboard® HD-PH pressed sheet sheet 24 (+/-0,96) x 2150 x 4150 mm 4,150 mm 2,150 mm 24 mm
No stock item (MOQ)		459756Trafoboard® HD-PH pressed sheet sheet 20 (+/-0,8) x 2050 x 3100 mm 3,100 mm 2,050 mm 20 mm
No stock item (MOQ)		460240Trafoboard® HD-PH pressed sheet sheet 15 (+/-0,6) x 2050 x 3100 mm 3,100 mm 2,050 mm 15 mm
No stock item (MOQ)		461175Trafoboard® HD-PH pressed sheet sheet 27 (+/-1,08) x 2050 x 3100 mm 3,100 mm 2,050 mm 27 mm
No stock item (MOQ)		467516Trafoboard® HD-PH pressed sheet sheet 60 (-0/+4,8) x 2150 x 4150 mm 4,150 mm 2,150 mm 60 mm
No stock item (MOQ)		470129Trafoboard® HD-PH pressed sheet sheet 52 (+/-2,08) x 2150 x 4150 mm 4,150 mm 2,150 mm 52 mm
No stock item (MOQ)		471279Trafoboard® HD-PH pressed sheet sheet 15 x 2050 x 3100 mm 3,100 mm 2,050 mm 15 mm
No stock item (MOQ)		471281Trafoboard® HD-PH pressed sheet sheet 30 x 2050 x 3100 mm 3,100 mm 2,050 mm 30 mm
No stock item (MOQ)		471283Trafoboard® HD-PH pressed sheet sheet 15 x 2050 x 3100 mm 3,100 mm 2,050 mm 15 mm
No stock item (MOQ)		471284Trafoboard® HD-PH pressed sheet sheet 30 x 2050 x 3100 mm 3,100 mm 2,050 mm 30 mm

Technical Specifications Trafoboard® HD-PH

Test MethodUnitGuideline Value
DensityDIN EN ISO 1183-1g / cm31.15 - 1.35

Test MethodUnitGuideline Value
Flexural strength ┴ (MD)IEC 60763-2MPa120
Flexural strength ┴ (CMD)IEC 60763-2MPa110
Flexural modulus ┴ (MD)IEC 60763-2MPa13000
Flexural modulus ┴ (CMD)IEC 60763-2MPa10500
Compressibility (C)IEC 60763-2%2.6
Compressibility (Crev)IEC 60763-2%93

Test MethodUnitGuideline Value
Insulation classIEC 60085/A

Test MethodUnitGuideline Value
Shrinkage (MD)IEC 60763-2%0.20
Shrinkage (CMD)IEC 60763-2%0.30
Shrinkage (Thickness)IEC 60763-2%1.50
Moisture contentIEC 60763-2% 5
Oil absorptionIEC 60763-2%10
pH of aqueous extractIEC 60763-2pH7.1

Test MethodUnitGuideline Value
Field strength at the onset of PD IIHS-OS ^1)kV / mm10
Conductivity of aqueous extractIEC 60763-2mS/m7.1
Electric strength in oil at 90° C IIIEC 60243-1kV / mm> 9

Downloads

Technical Data Sheet Trafoboard® HD-PH
