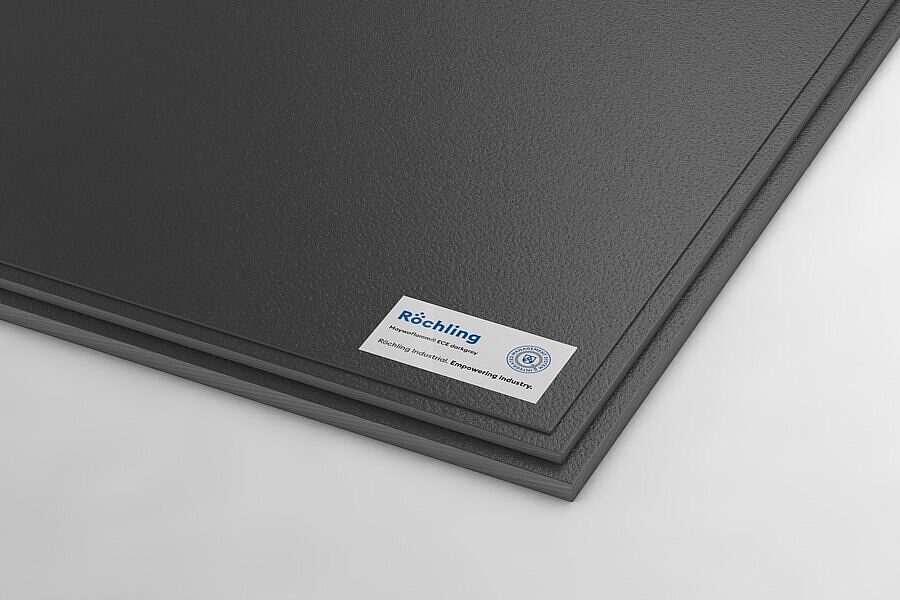

Maywoflamm® ECE

ABS

Maywoflamm^® flame retardent plastics are mainly used in the fields of transportation, housing construction, the electrical sector, and the construction industry. Depending on the requirements, there are various fire tests that can be performed in-house at Röchling or at external testing laboratories.

Maywoflamm^®ECE is a flame retardant ABS for use in bus interior applications and complies with Annex 6, 7 and 8 of ECE R118.

Characteristics

Flame retardant
Base Material: ABS

Industries

Application Examples

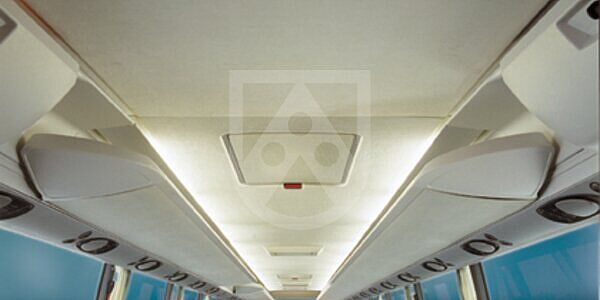

采用 Maywoflamm® ECE 制成公共汽车用内部镶板

Maywoflamm^®ECE 是一种专为车辆构造而设计的防火 ABS。此材料符合 ECE R-118 标准附录 VI、VII 和 VIII 的要求，因而特别适合于制造公共汽车部件，如内部镶板（如图）。

车内镶板

Maywoflamm^® ECE 是一种专为车辆构造而设计的防火 ABS。此材料符合 ECE R-118 标准附录 VI、VII 和 VIII 的要求，因而特别适合于制造公共汽车部件，如内部镶板

Technical Specifications Maywoflamm® ECE

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,16
Flammability	ECE R118		Annex 6, 7, 8 (1,5-7,0mm)

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	26
Elongation at break	DIN EN ISO 527	%	32
Tensile modulus of elasticity	DIN EN ISO 527	MPa	1889
Notched impact strength	DIN EN ISO 179	kJ / m²	6

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	>180
Thermal conductivity	DIN 52612-1	W / (m * K)	0,2
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	90
Service temperature, long term	Average	°C	80
Service temperature, short term (max.)	Average	°C	90
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	96
