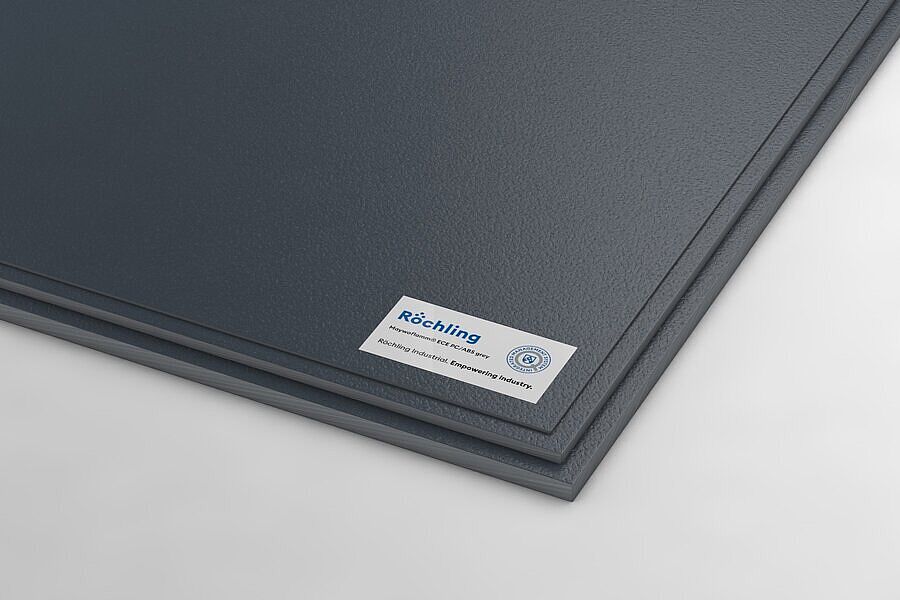

Maywoflamm® ECE PC/ABS
ABS
Maywoflamm® flame retardent plastics are mainly used in the fields of transportation, housing construction, the electrical sector, and the construction industry. Depending on the requirements, there are various fire tests that can be performed in-house at Röchling or at external testing laboratories.
Maywoflamm® ECE PC/ABS is a flame retardant PC/ABS-blend for use in bus interior applications and complies with Annex 6, 7 and 8 of ECE R118.
Technical Specifications Maywoflamm® ECE PC-ABS
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,19 |
| Flammability | ECE R118 | Annex 6, 7, 8 (1,5-6,0mm) |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 59 |
| Elongation at yield stress | DIN EN ISO 527 | % | 4,7 |
| Elongation at break | DIN EN ISO 527 | % | 15,6 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2448 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 15 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | >220 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,2 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 70 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Surface resisitivity | DIN EN 61340 | Ω | > 1012 |
| Volume resistivity | DIN EN 61340 | Ω | > 1012 |
