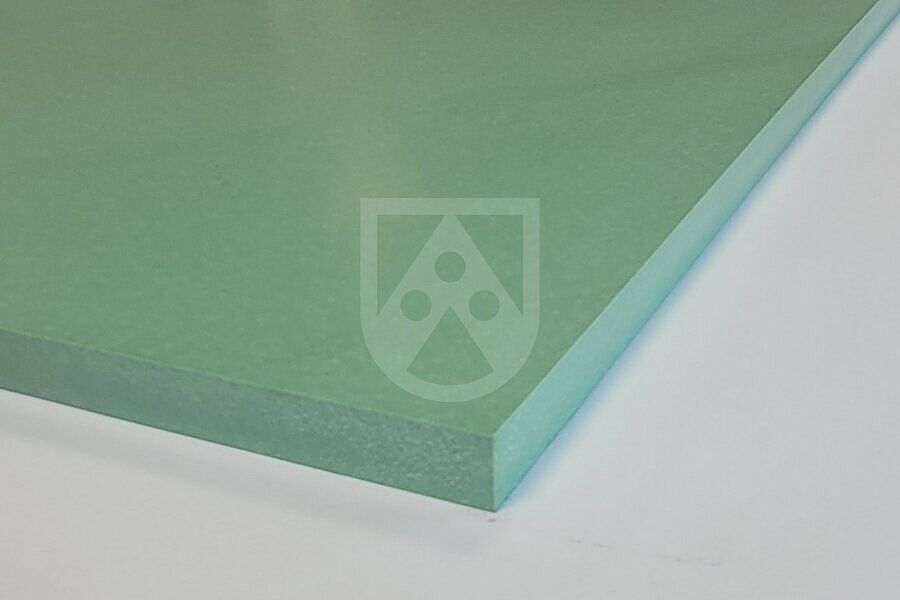

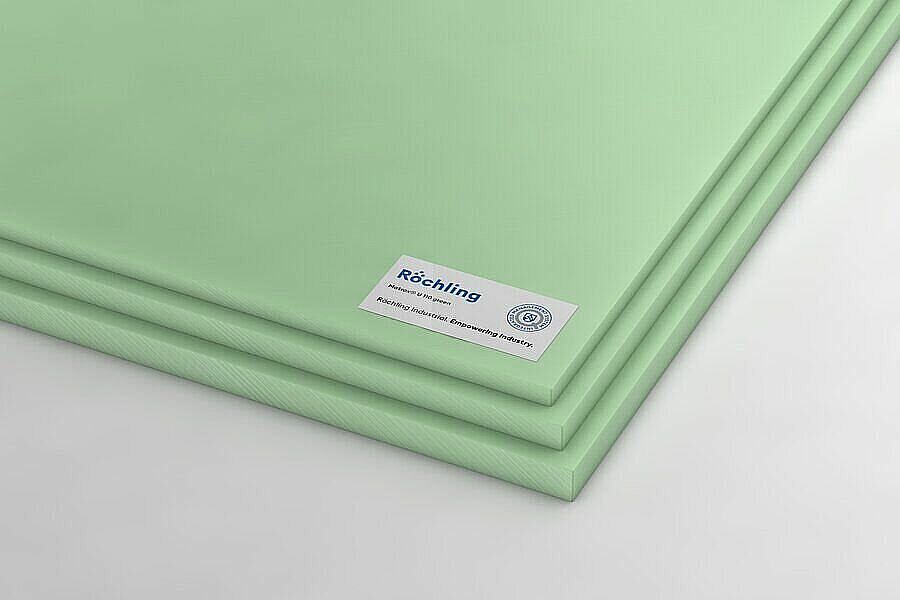

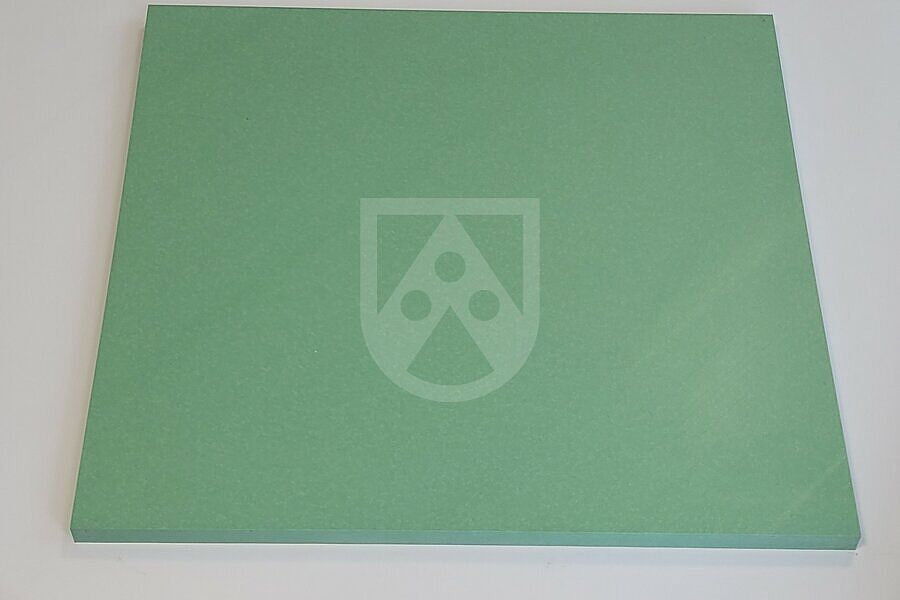

SustaPEEK CM CT200 green
PEEK
The material for cryogenic temperatures
A semi-finished product specially developed for use in cryogenic temperatures down to -200°C. This product also offers increased sliding properties due to its modification. CM stands for our pressed products, which are characterized by low residual stresses and have a minimum order quantity of just one piece.
green
sheet
Characteristics
- High cold impact strength
- High heat deflection temperature
- Good sliding properties
- Chemical resistant
- NORSOK M710 compliant
Industries
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 881964 | SustaPEEK CM CT200 green pressed | sheet | sheet | green | 25 x 395 x 395 mm | 395 mm | 395 mm | 25 mm |
Technical Specifications SustaPEEK CM CT200 green
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,43 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | 4 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3200 |
| Tensile strength | DIN EN ISO 527 | MPa | 70 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 3,5 |
| Shore hardness | DIN EN ISO 868 | scale D | 86 |
| Compressive strength | DIN EN ISO 604 | MPa | 3250 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 330 |
| Service temperature, long term | Average | °C | -200...250 |
| Service temperature, short term (max.) | Average | °C | 300 |
