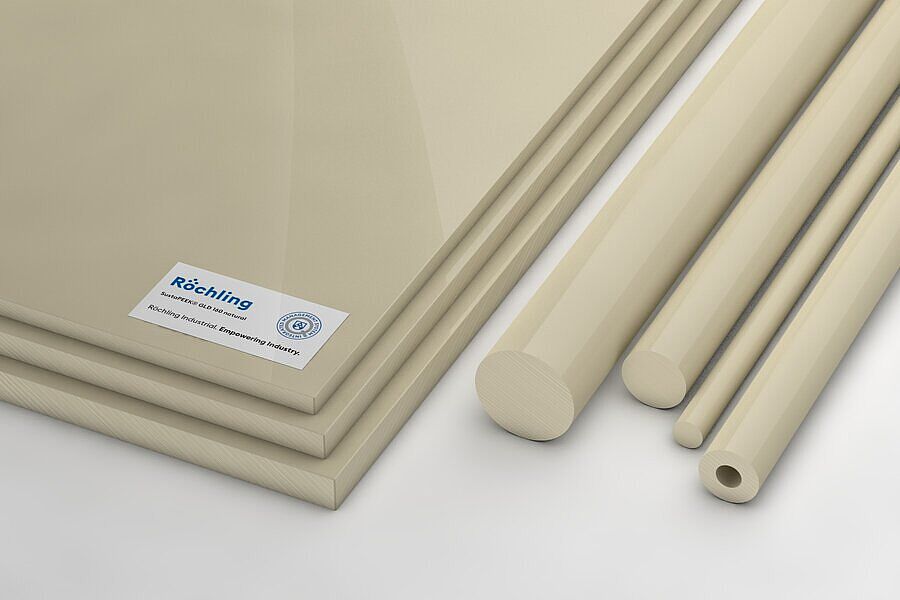

SustaPEEK GLD 160 natural
PEEK
The Premium Sliding Material
The addition of a solid lubricant (PTFE) gives the material excellent tribological properties (low wear and low coefficient of friction) in many sliding applications. The material is particularly well suited to high temperatures, where the use of standard plastics such as PE or POM is not feasible.
Characteristics
- FDA compliant
- Good sliding properties
- Good dimensional stability
Industries
食品行业- 饮料行业
Technical Specifications SustaPEEK GLD 160 natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,41 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | 7 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Tensile strength | DIN EN ISO 527 | MPa | 76 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 3 |
| Shore hardness | DIN EN ISO 868 | scale D | 81 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 343 |
