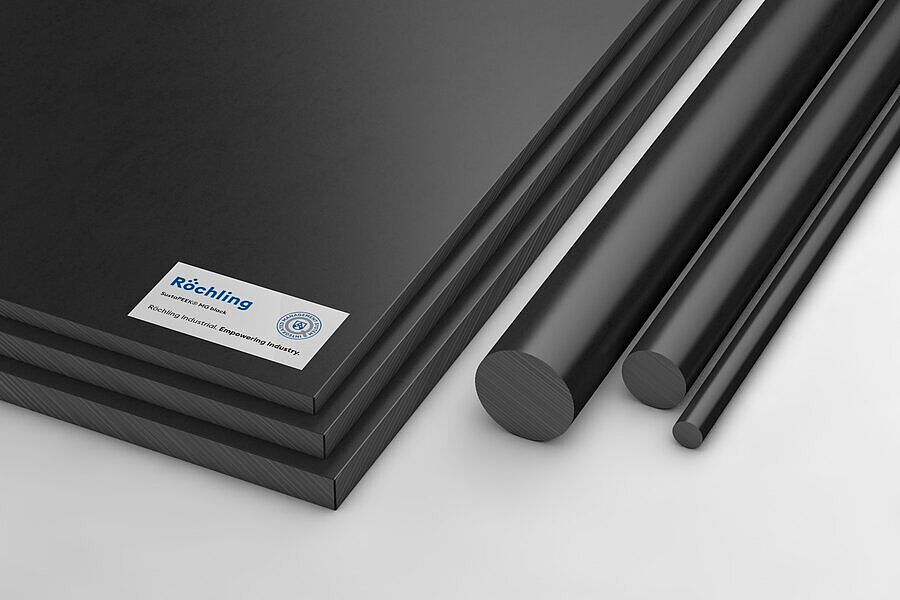

SustaPEEK MG black

PEEK

Our premium material especially for medical devices

SustaPEEK MG was developed for the demanding requirements of the healthcare industry in particular medical devices. As a material of highest purity with exceptional resistance to sterilisation, it is e.g. ideal for surgical instruments. Thanks to its very high strength and rigidity, SustaPEEK MG ensures reliable performance in all applications. It retains its shape and property profile even under extreme conditions. With its excellent temperature stability of up to 250 °C in continuous use, it offers reliable performance.

black

rodsheet

Characteristics

High purity
Good sterilisation resistance
High Strength
High rigidity
High-temperature stable up to 250°C in continuous operation
ISO 10993-5 tested on semi-finished product
Chemical resistant

Industries

Healthcare

Application Examples

乳房活检装置

乳腺活检装置根据客户的图纸进行精密加工，以满足严格的公差要求。根据 DIN EN ISO 10993-5 标准，它具有出色的清洁和灭菌程序以及生物相容性，并以 SustaPEEK MG 材料制成的装配组形式供应。

手术刀手柄

挑战：能经受消毒考验，需要具备高品质手感和高品质表面，加工公差要求严格 SustaPEEK^® MG 能够被客户选用，是因为具备以下卓越特性：良好的制造稳定性（组件复杂，公差要求严格）良好的耐热性能良好的热学性能良好的耐化学性

Handle of an ultrasonic probe

Handle of an ultrasonic probe machined from SustaPEEK MG.

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Armin Reuner - Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	135215	SustaPEEK MG black extruded	rod	rod	black	Ø 35 x 1000 mm	1,000 mm		35 mm
No stock item (MOQ)	135216	SustaPEEK MG black extruded	rod	rod	black	Ø 35 x 3000 mm	3,000 mm		35 mm
No stock item (MOQ)	135217	SustaPEEK MG black extruded	rod	rod	black	Ø 45 x 1000 mm	1,000 mm		45 mm
No stock item (no MOQ)	135218	SustaPEEK MG black extruded	rod	rod	black	Ø 45 x 3000 mm	3,000 mm		45 mm
No stock item (MOQ)	135219	SustaPEEK MG black extruded	rod	rod	black	Ø 8 x 3000 mm	3,000 mm		8 mm
No stock item (MOQ)	135221	SustaPEEK MG black extruded	rod	rod	black	Ø 12 x 1000 mm	1,000 mm		12 mm
No stock item (MOQ)	135222	SustaPEEK MG black extruded	rod	rod	black	Ø 16 x 1000 mm	1,000 mm		16 mm
No stock item (MOQ)	135223	SustaPEEK MG black extruded	rod	rod	black	Ø 20 x 1000 mm	1,000 mm		20 mm
No stock item (MOQ)	135224	SustaPEEK MG black extruded	rod	rod	black	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (MOQ)	135225	SustaPEEK MG black extruded	rod	rod	black	Ø 30 x 1000 mm	1,000 mm		30 mm
No stock item (MOQ)	135226	SustaPEEK MG black extruded	rod	rod	black	Ø 32 x 1000 mm	1,000 mm		32 mm
No stock item (MOQ)	135227	SustaPEEK MG black extruded	rod	rod	black	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	135228	SustaPEEK MG black extruded	rod	rod	black	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	135229	SustaPEEK MG black extruded	rod	rod	black	Ø 60 x 1000 mm	1,000 mm		60 mm
No stock item (no MOQ)	135230	SustaPEEK MG black extruded	rod	rod	black	Ø 12 x 3000 mm	3,000 mm		12 mm
Stock item (no MOQ)	135231	SustaPEEK MG black extruded	rod	rod	black	Ø 16 x 3000 mm	3,000 mm		16 mm
Stock item (no MOQ)	135232	SustaPEEK MG black extruded	rod	rod	black	Ø 20 x 3000 mm	3,000 mm		20 mm
Stock item (no MOQ)	135233	SustaPEEK MG black extruded	rod	rod	black	Ø 25 x 3000 mm	3,000 mm		25 mm
No stock item (no MOQ)	135234	SustaPEEK MG black extruded	rod	rod	black	Ø 30 x 3000 mm	3,000 mm		30 mm
Stock item (no MOQ)	135235	SustaPEEK MG black extruded	rod	rod	black	Ø 32 x 3000 mm	3,000 mm		32 mm
Stock item (no MOQ)	135236	SustaPEEK MG black extruded	rod	rod	black	Ø 40 x 3000 mm	3,000 mm		40 mm
Stock item (no MOQ)	135237	SustaPEEK MG black extruded	rod	rod	black	Ø 50 x 3000 mm	3,000 mm		50 mm
Stock item (no MOQ)	135238	SustaPEEK MG black extruded	rod	rod	black	Ø 60 x 3000 mm	3,000 mm		60 mm
No stock item (MOQ)	135247	SustaPEEK MG black extruded	rod	rod	black	Ø 22 x 3000 mm	3,000 mm		22 mm
No stock item (no MOQ)	600689	SustaPEEK MG black extruded	sheet	sheet	black	20 x 500 x 2000 mm	2,000 mm	500 mm	20 mm
No stock item (MOQ)	600820	SustaPEEK MG black extruded	rod	rod	black	Ø 6 x 3000 mm	3,000 mm		6 mm
No stock item (MOQ)	617824	SustaPEEK MG black extruded	rod	rod	black	Ø 12 x 2500 mm	2,500 mm		12 mm
No stock item (MOQ)	682711	SustaPEEK MG black extruded	rod	rod	black	Ø 32 x 2000 mm	2,000 mm		32 mm
No stock item (MOQ)	683689	SustaPEEK MG black extruded	sheet	sheet	black	30 x 500 x 2000 mm	2,000 mm	500 mm	30 mm
No stock item (MOQ)	695041	SustaPEEK MG black extruded	rod	rod	black	Ø 60 x 2000 mm	2,000 mm		60 mm
No stock item (no MOQ)	733094	SustaPEEK MG black extruded	sheet	sheet	black	16 x 620 x 2000 mm	2,000 mm	620 mm	16 mm
No stock item (MOQ)	800549	SustaPEEK MG black extruded	rod	rod	black	Ø 22 x 1000 mm	1,000 mm		22 mm
No stock item (MOQ)	800701	SustaPEEK MG black extruded	rod	rod	black	Ø 85 x 3000 mm	3,000 mm		85 mm
No stock item (MOQ)	800702	SustaPEEK MG black extruded	rod	rod	black	Ø 85 x 1000 mm	1,000 mm		85 mm
No stock item (MOQ)	803570	SustaPEEK MG black extruded	rod	rod	black	Ø 10 x 3000 mm	3,000 mm		10 mm
No stock item (MOQ)	804125	SustaPEEK MG black extruded	rod	rod	black	Ø 8 x 1000 mm	1,000 mm		8 mm
No stock item (MOQ)	805743	SustaPEEK MG black extruded	rod	rod	black	Ø 10 x 1000 mm	1,000 mm		10 mm
No stock item (no MOQ)	806687	SustaPEEK MG black extruded	rod	rod	black	Ø 55 x 3000 mm	3,000 mm		55 mm
No stock item (MOQ)	806862	SustaPEEK MG black extruded	sheet	sheet	black	16 x 620 x 3000 mm	3,000 mm	620 mm	16 mm
No stock item (MOQ)	806863	SustaPEEK MG black extruded	sheet	sheet	black	16 x 620 x 1000 mm	1,000 mm	620 mm	16 mm
No stock item (MOQ)	808192	SustaPEEK MG black extruded	rod	rod	black	Ø 36 x 3000 mm	3,000 mm		36 mm
No stock item (MOQ)	808193	SustaPEEK MG black extruded	rod	rod	black	Ø 36 x 1000 mm	1,000 mm		36 mm
No stock item (MOQ)	808283	SustaPEEK MG black extruded	rod	rod	black	Ø 55 x 1000 mm	1,000 mm		55 mm
No stock item (MOQ)	809147	SustaPEEK MG black extruded	rod	rod	black	Ø 70 x 3000 mm	3,000 mm		70 mm
No stock item (MOQ)	809296	SustaPEEK MG black extruded	sheet	sheet	black	20 x 500 x 3000 mm	3,000 mm	500 mm	20 mm
Stock item (no MOQ)	809297	SustaPEEK MG black extruded	sheet	sheet	black	30 x 500 x 3000 mm	3,000 mm	500 mm	30 mm
No stock item (MOQ)	809301	SustaPEEK MG black extruded	sheet	sheet	black	30 x 500 x 1000 mm	1,000 mm	500 mm	30 mm
No stock item (MOQ)	809306	SustaPEEK MG black extruded	sheet	sheet	black	20 x 500 x 1000 mm	1,000 mm	500 mm	20 mm
No stock item (MOQ)	920821	SustaPEEK MG black extruded	rod	rod	black	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (no MOQ)	923280	SustaPEEK MG black extruded	rod	rod	black	Ø 100 x 3000 mm	3,000 mm		100 mm
No stock item (MOQ)	923720	SustaPEEK MG black extruded	rod	rod	black	Ø 100 x 1000 mm	1,000 mm		100 mm
No stock item (MOQ)	931934	SustaPEEK MG black extruded	sheet	sheet	black	10 x 500 x 1000 mm	1,000 mm	500 mm	10 mm
No stock item (MOQ)	931935	SustaPEEK MG black extruded	sheet	sheet	black	10 x 500 x 2000 mm	2,000 mm	500 mm	10 mm
No stock item (MOQ)	933781	SustaPEEK MG black extruded	sheet	sheet	black	10 x 620 x 3000 mm	3,000 mm	620 mm	10 mm
No stock item (MOQ)	933823	SustaPEEK MG black extruded	sheet	sheet	black	10 x 620 x 1000 mm	1,000 mm	620 mm	10 mm

Technical Specifications SustaPEEK MG black

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,31
Water absorption	DIN EN ISO 62	%	0,2
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	110
Elongation at break	DIN EN ISO 527	%	15
Tensile modulus of elasticity	DIN EN ISO 527	MPa	4000
Shore hardness	DIN EN ISO 868	scale D	88

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	343
Thermal conductivity	DIN 52612-1	W / (m * K)	0,25
Thermal capacity	DIN 52612	kJ / (kg * K)	1,34
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	50
Service temperature, long term	Average	°C	-60 … 250
Service temperature, short term (max.)	Average	°C	310
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	152

SustaPEEK MG semi-finished products
