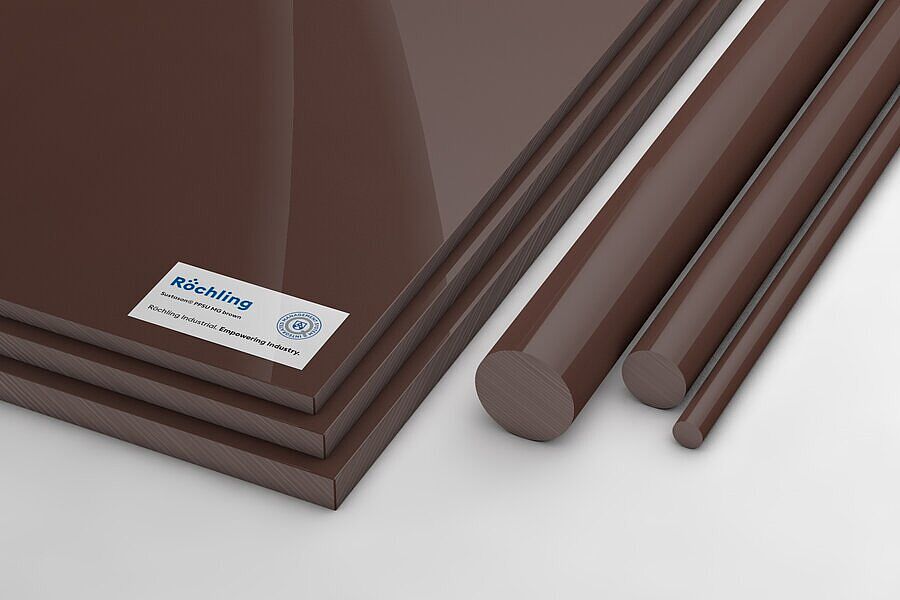

Sustason® PPSU MG brown

PPSU

Our premium material especially for medical devices

Sustason® PPSU MG was specially developed for demanding applications in the healthcare industry. It is the ideal material for plastic components in the medical environment like trial implants due to its high heat and sterilisation resistance to common processes. Biocompatibility in accordance with ISO 10993-5 and/or USP Class VI directly on the semi-finished product guarantees maximum safety and compatibility with biological systems. It also impresses with its good chemical resistance and high impact strength.

BN1164 brown, similar RAL 8016

rodsheet

Characteristics

Good sterilisation resistance
High heat deflection temperature
ISO 10993-5 tested on semi-finished product
High impact resistance
Chemical resistant
High resistance to gamma and x-rays

Industries

Healthcare

Application Examples

呼吸机的结构材料

Our wide range of thermoplastics supports compliance with the highest medical requirements in terms of functionality, reliability and process stability. Materials such as Sustason® PPSU MG and Polystone® P HG are specifically selected to fulfil these standards. We offer support during the design process to ensure that your products meet the requirements.

施胶试验

例如，用于膝关节植入物、髋臼植入物和套筒。它具有极高的精度和表面质量，可根据客户图纸进行高公差加工。所用材料为Sustason^®PPSU MG。

用于内窥镜的塑料组件

挑战：相比以前使用的金属材料，塑料的重量更轻，因此外科医生可以操作更长时间，操作精细程度更高 Sustason^® PPSU MG 能够被客户选用，是因为塑料可以减轻重量负担可经受 1,000+ 次消毒处理 + 根据客户要求做表面加工金属触感偏冰凉，塑料触感更温暖采用严格的公差范围加工不同的颜色可选

We are a system supplier and partner from the idea to the OEM's end product - as a cooperative value contribution. We are able to support the healthcare industry at the highest level.
Industry Manager Healthcare - Mail: AReuner@roechling.com

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	600847	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 50 x 3000 mm	3,000 mm		50 mm
No stock item (MOQ)	601600	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 60 x 1000 mm	1,000 mm		60 mm
No stock item (MOQ)	632430	Sustason® PPSU MG brown extruded	sheet	sheet	BN1164 brown, similar RAL 8016	30 x 620 x 2000 mm	2,000 mm	620 mm	30 mm
No stock item (MOQ)	632431	Sustason® PPSU MG brown extruded	sheet	sheet	BN1164 brown, similar RAL 8016	50 x 620 x 2000 mm	2,000 mm	620 mm	50 mm
No stock item (MOQ)	632434	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 35 x 1000 mm	1,000 mm		35 mm
No stock item (MOQ)	632435	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 35 x 3000 mm	3,000 mm		35 mm
No stock item (MOQ)	632437	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 32 x 1000 mm	1,000 mm		32 mm
No stock item (MOQ)	632438	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 32 x 3000 mm	3,000 mm		32 mm
No stock item (MOQ)	632440	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 75 x 1000 mm	1,000 mm		75 mm
No stock item (MOQ)	632441	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 75 x 3000 mm	3,000 mm		75 mm
No stock item (MOQ)	634035	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 50 x 1000 mm	1,000 mm		50 mm
No stock item (MOQ)	650213	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 45 x 1000 mm	1,000 mm		45 mm
No stock item (MOQ)	650217	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 45 x 3000 mm	3,000 mm		45 mm
No stock item (MOQ)	666985	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 25 x 3000 mm	3,000 mm		25 mm
No stock item (MOQ)	666987	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 25 x 1000 mm	1,000 mm		25 mm
No stock item (MOQ)	672556	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 70 x 3000 mm	3,000 mm		70 mm
No stock item (MOQ)	931691	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (MOQ)	931697	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 100 x 1000 mm	1,000 mm		100 mm
No stock item (MOQ)	931698	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 100 x 3000 mm	3,000 mm		100 mm
No stock item (MOQ)	931955	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 80 x 1000 mm	1,000 mm		80 mm
No stock item (MOQ)	931956	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 80 x 3000 mm	3,000 mm		80 mm
No stock item (MOQ)	933150	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 40 x 3000 mm	3,000 mm		40 mm
No stock item (MOQ)	933852	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 40 x 1000 mm	1,000 mm		40 mm
No stock item (MOQ)	934893	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 60 x 3000 mm	3,000 mm		60 mm
No stock item (MOQ)	934941	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 55 x 3000 mm	3,000 mm		55 mm
No stock item (MOQ)	934942	Sustason® PPSU MG brown extruded	rod	rod	BN1164 brown, similar RAL 8016	Ø 55 x 1000 mm	1,000 mm		55 mm

Technical Specifications Sustason® PPSU MG brown

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	1,29
Water absorption	DIN EN ISO 62	%	0,6
Flammability (Thickness 3 mm / 6 mm)	UL 94		V0 / V0

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	77
Elongation at break	DIN EN ISO 527	%	30
Tensile modulus of elasticity	DIN EN ISO 527	MPa	2500
Notched impact strength	DIN EN ISO 179	kJ / m²	10

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	-
Glass transition temperature	ISO 11357-3	°C	220
Thermal conductivity	DIN 52612-1	W / (m * K)	0,35
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	55
Service temperature, long term	Average	°C	-50 … 180
Service temperature, short term (max.)	Average	°C	210
Heat deflection temperature	DIN EN ISO 75, Verf. A, HDT	°C	205

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		3,44
Volume resistivity	DIN EN 62631-3-1	Ω * cm	10¹⁵
Dielectric strength	IEC 60243	kV / mm	15

Downloads

Technical Data Sheet Sustason® PPSU MG brown

Flyer Sustason® PPSU MG brown

Product Handling Information Sheet Sustason® PPSU MG brown

RI_Healthcare_Brochure.pdf

Medical Device Regulation (EU) 2017/745

Sustason PPSU MG semi-finished products
