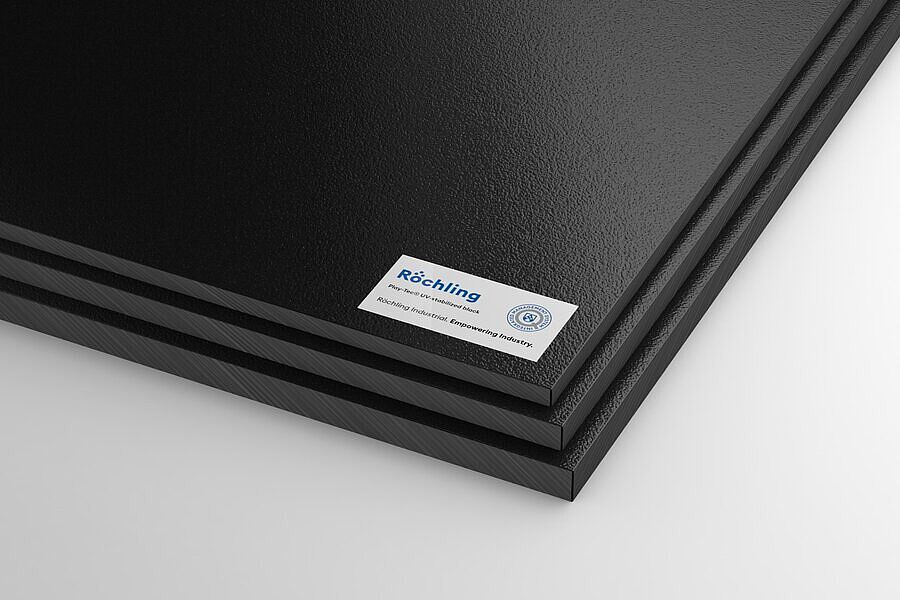

Play-Tec® UV-stabilized black
PE — PE-HD - PE 300
游乐场材料
孩子们喜欢到处玩耍和追逐嬉戏，渴望探索这个世界。游乐场地是他们消耗精力、开展社交的理想场所。但是，对于父母们来说，最重要的是游乐设备必须安全并适合儿童，只有这样，父母们才能放心让他们的小不点儿们去享受全新的体验。在规划和设计游乐场地时，设计人员必须从最开始就要将这一点考虑在内。
因此，我们专为游乐场地的设计开发了游乐场地材料 Play-Tec®。Play-Tec® 满足下列方面的高要求：
- 安全
- 使用寿命
- 外观
black, similar RAL 9005
sheet
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 100663 | Play-Tec® UV-stabilized black extruded | sheet | sheet | black, similar RAL 9005 | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 333252 | Play-Tec® UV-stabilized black extruded | sheet | sheet | black, similar RAL 9005 | 3.000 x 1.500 x 20 mm | 3,000 mm | 1,500 mm | 20 mm | ||
| No stock item (MOQ) | 352373 | Play-Tec® UV-stabilized black extruded | sheet | sheet | black, similar RAL 9005 | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 451148 | Play-Tec® UV-stabilized black extruded | sheet | sheet | black, similar RAL 9005 | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm |
Technical Specifications Play-Tec® UV-stabilized black
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,96 |
| Water absorption | DIN EN ISO 62 | % | <0,01 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Flammability (Thickness 3 - 10 mm) | DIN 4102 | B2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >23 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1100 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | >10 |
| Shore hardness | DIN EN ISO 868 | scale D | >60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 150 ... 230 |
| Service temperature, long term | Average | °C | -30 … 80 |
| Service temperature, short term (max.) | Average | °C | 100 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 67 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 2,4 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,0004 | |
| Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ohm | >1014 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | >40 |
