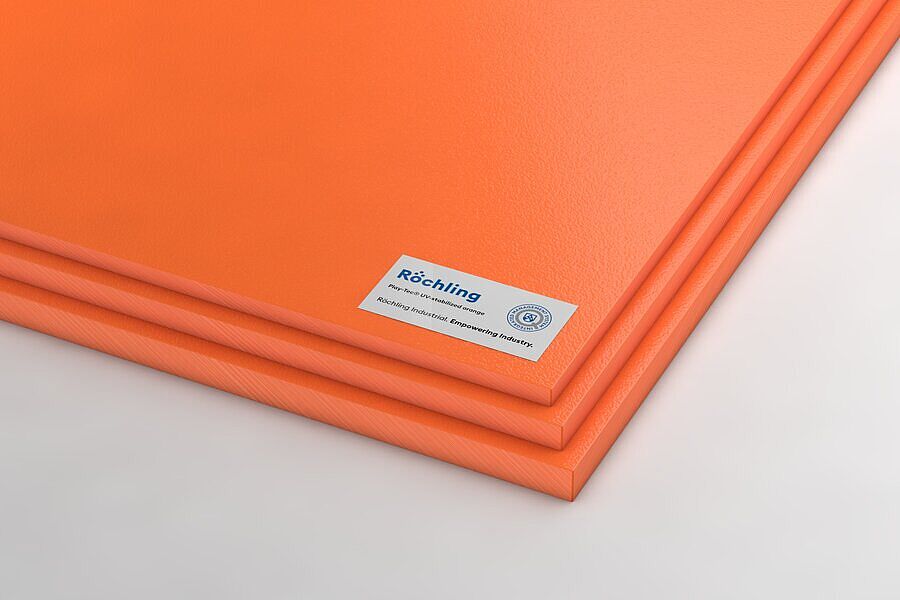

Play-Tec® UV-stabilized orange
PE — PE-HD - PE 300
游乐场材料
孩子们喜欢到处玩耍和追逐嬉戏，渴望探索这个世界。游乐场地是他们消耗精力、开展社交的理想场所。但是，对于父母们来说，最重要的是游乐设备必须安全并适合儿童，只有这样，父母们才能放心让他们的小不点儿们去享受全新的体验。在规划和设计游乐场地时，设计人员必须从最开始就要将这一点考虑在内。
因此，我们专为游乐场地的设计开发了游乐场地材料 Play-Tec®。Play-Tec® 满足下列方面的高要求：
- 安全
- 使用寿命
- 外观
bright red orange, similar RAL 2008deep orange, similar RAL 2011orangepure orange, similar RAL 2004
sheet
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 298740 | Play-Tec® UV-stabilized orange extruded | sheet | sheet | bright red orange, similar RAL 2008 | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 333251 | Play-Tec® UV-stabilized orange extruded | sheet | sheet | bright red orange, similar RAL 2008 | 3.000 x 1.500 x 20 mm | 3,000 mm | 1,500 mm | 20 mm | ||
| No stock item (MOQ) | 337700 | Play-Tec® UV-stabilized orange extruded | sheet | sheet | deep orange, similar RAL 2011 | 2.440 x 1.500 x 19 mm | 2,440 mm | 1,500 mm | 19 mm | ||
| No stock item (MOQ) | 370032 | Play-Tec® UV-stabilized orange extruded | sheet | sheet | orange | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 373890 | Play-Tec® UV-stabilized orange extruded | sheet | sheet | orange | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| Stock item (no MOQ) | 450271 | Play-Tec® UV-stabilized orange extruded | sheet | sheet | bright red orange, similar RAL 2008 | 3.000 x 1.500 x 19 mm | 3,000 mm | 1,500 mm | 19 mm | ||
| No stock item (MOQ) | 475752 | Play-Tec® UV-stabilized orange extruded | sheet | sheet | pure orange, similar RAL 2004 | 3.000 x 1.500 x 15 mm | 3,000 mm | 1,500 mm | 15 mm | ||
| No stock item (MOQ) | 475759 | Play-Tec® UV-stabilized orange extruded | sheet | sheet | pure orange, similar RAL 2004 | 3.000 x 1.500 x 19 mm | 3,000 mm | 1,500 mm | 19 mm |
Technical Specifications Play-Tec® UV-stabilized orange
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,91 |
| Water absorption | DIN EN ISO 62 | % | 0,1 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >23 |
| Elongation at break | DIN EN ISO 527 | % | >50 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >1100 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | >30 |
| Shore hardness | DIN EN ISO 868 | scale D | >65 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 162 ... 165 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,20 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,70 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 120 ... 190 |
| Service temperature, long term | Average | °C | -30 … 100 |
| Service temperature, short term (max.) | Average | °C | 150 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 85 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 2,5 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,00019 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1014 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1014 |
| Comparative tracking index | IEC 60112 | 600 | |
| Dielectric strength | IEC 60243 | kV / mm | >40 |
