Play-Tec® UV-stabilized PCR bicolor
PE — PE-HD - PE 300
游乐场材料
孩子们喜欢到处玩耍和追逐嬉戏，渴望探索这个世界。游乐场地是他们消耗精力、开展社交的理想场所。但是，对于父母们来说，最重要的是游乐设备必须安全并适合儿童，只有这样，父母们才能放心让他们的小不点儿们去享受全新的体验。在规划和设计游乐场地时，设计人员必须从最开始就要将这一点考虑在内。
因此，我们专为游乐场地的设计开发了游乐场地材料 Play-Tec®。Play-Tec® 满足下列方面的高要求：
- 安全
- 使用寿命
- 外观

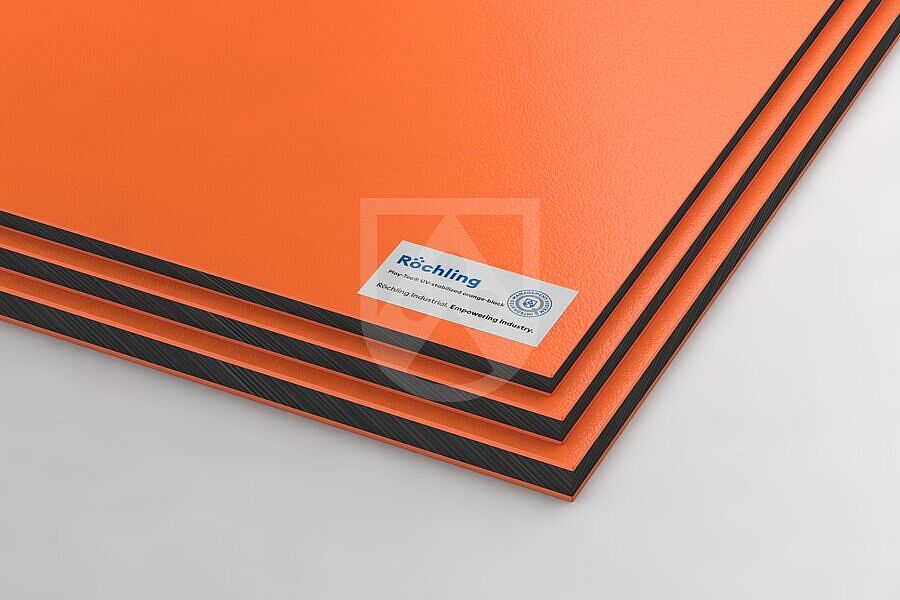

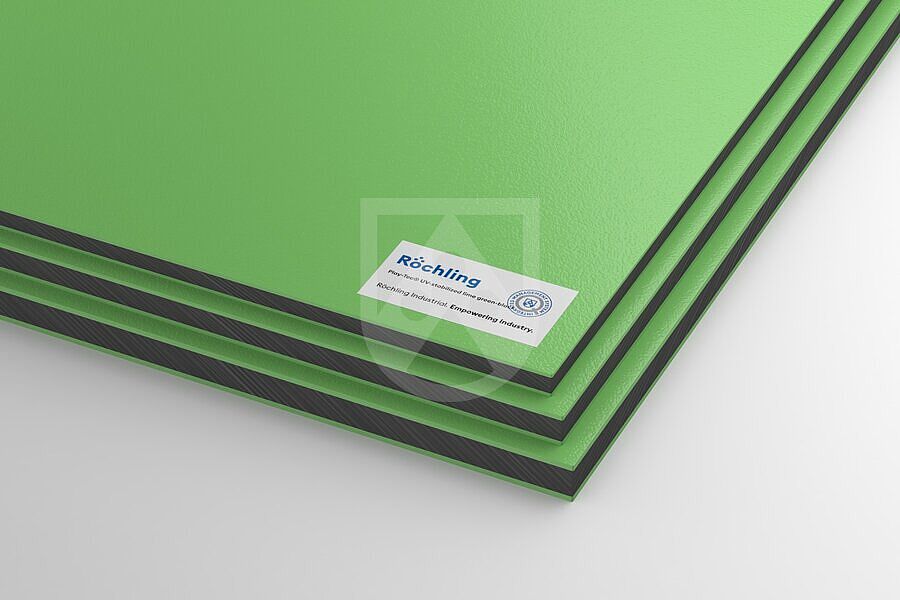

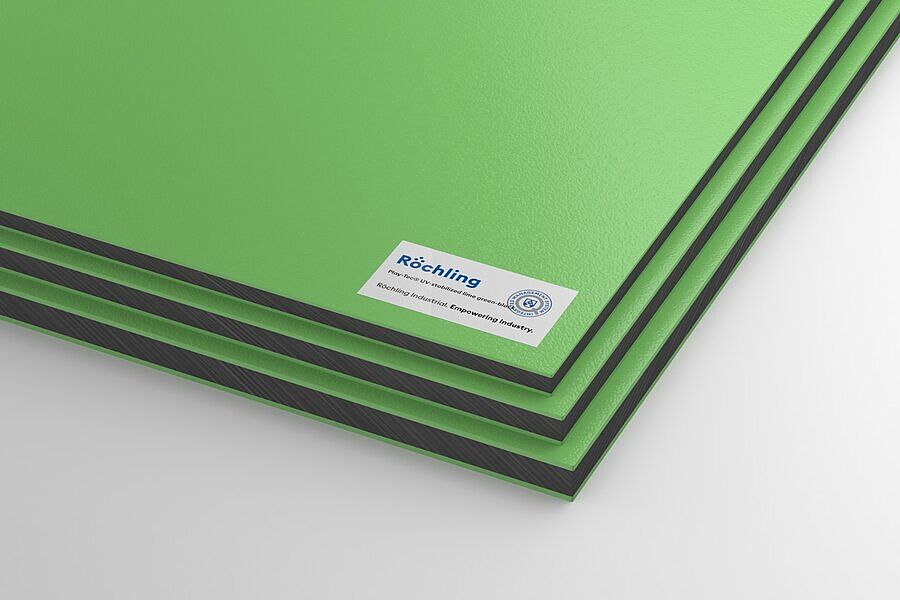

bicolor red/black/redbicolor dark blue/black/dark bluebicolor white/black/whitebicolor yellow/black/yellow
All colors
sheet

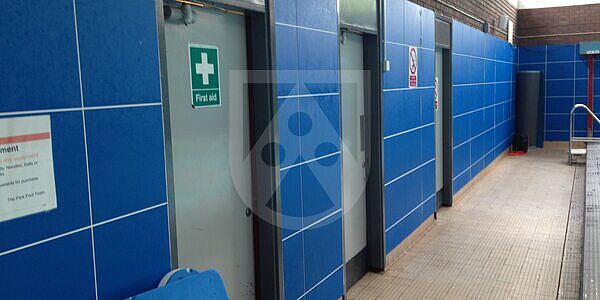

Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 449704 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor red/black/red | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 449705 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor dark blue/black/dark blue | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 455761 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor white/black/white | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 455762 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor yellow/black/yellow | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 455764 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor light blue/black/light blue | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 455768 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor lime green/black/lime green | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 462105 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor ultramarine blue/black/ultramarine blue | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 462106 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor orange/black/orange | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 464877 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor green/black/green | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 464878 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor beige/black/beige | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 464882 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor grey/black/grey | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 464886 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor brown/black/brown | 2.440 x 1.220 x 19 mm | 2,440 mm | 1,220 mm | 19 mm | ||
| No stock item (MOQ) | 480437 | Play-Tec® UV-stabilized PCR bicolor extruded | sheet | sheet | bicolor green/black/green | 2.440 x 1.220 x 12 mm | 2,440 mm | 1,220 mm | 12 mm |
Technical Specifications Play-Tec® UV-stabilized PCR bicolor
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | >0,96 |
| Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB | |
| Flammability (Thickness 3 - 10 mm) | DIN 4102 | B2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | >18 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | >900 |
| Notched impact strength | DIN EN ISO 11542 | kJ / m2 | >4 |
| Shore hardness | DIN EN ISO 868 | scale D | >60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 130 ... 135 |
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,40 |
| Thermal capacity | DIN 52612 | kJ / (kg * K) | 1,90 |
| Service temperature, long term | Average | °C | -30 … 80 |
