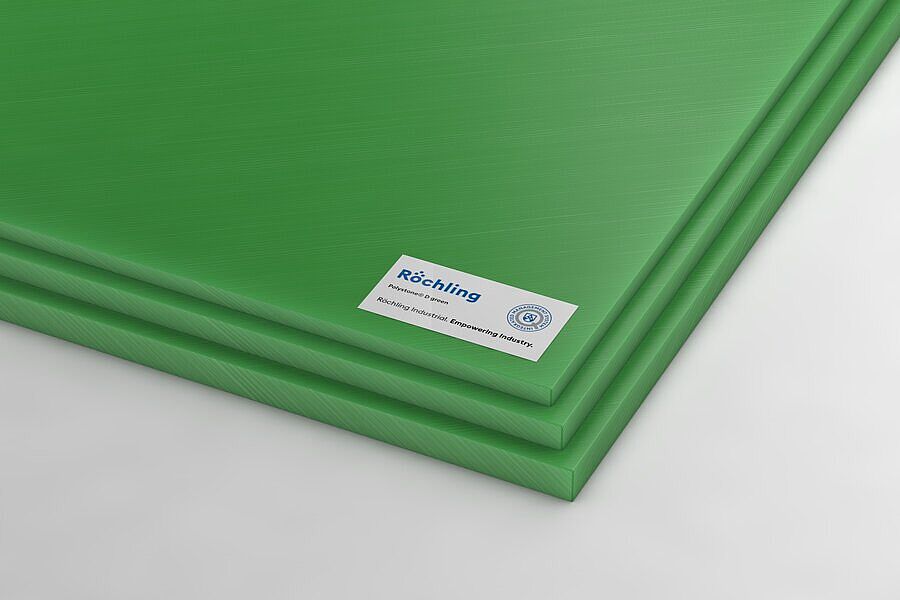

Polystone® D green

PE — PE-HD - PE 500

Polystone^® D is a high-molecular polyethylene (PE-HMW/PE 500) which is outstanding for its good mechanical properties such as scratch- and cut resistance and excellent acid resistance. The material is used in various branches of industry such as the foodstuffs and bottling industry or in medical technology.

traffic green, similar RAL 6024green, similar RAL 6032pastel green, similar RAL 6019light green, similar RAL 6027

All colors

sheet

Application Examples

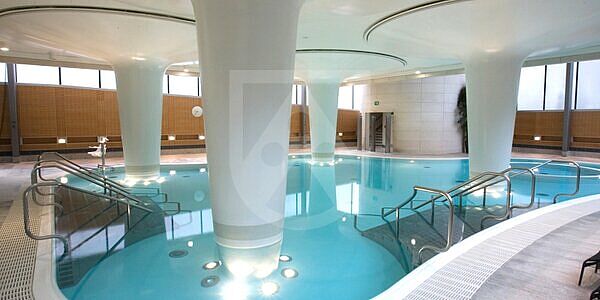

Curved pool grating

Curved pool grating made of Polystone^® D.

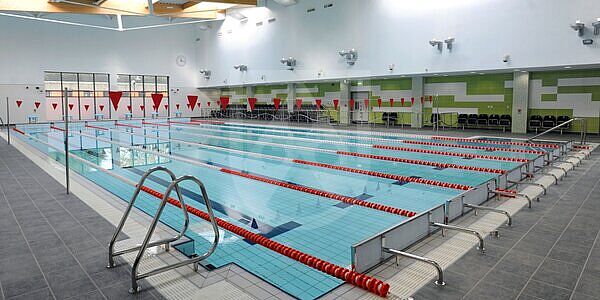

Straight pool grating

Straight pool grating installed in Harbourne Pool, Birmingham, UK.

溢流回水通道的格栅罩

通道格栅采用 Polystone^® D 制成，并经过专门加工以配合水池形状。它们符合 DIN 51097 标准 C 级要求，有多种颜色可供选择，具有很高的抗断裂和抗腐蚀性能，使用寿命长。

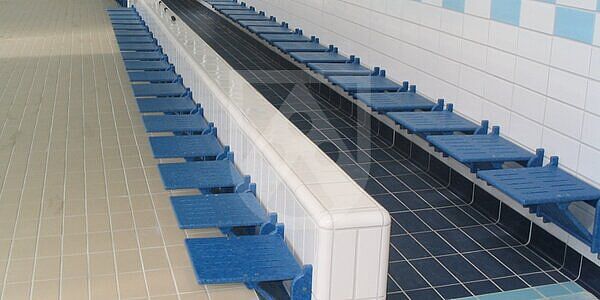

座椅和长凳

座椅和长凳采用 Polystone®D（PE-HMW）制成，并根据您的特殊要求进行加工，抗氯性高、耐刮擦且使用寿命长。另外，它们还有许多不同的颜色可供选择，让您的游泳浴池外观与众不同。

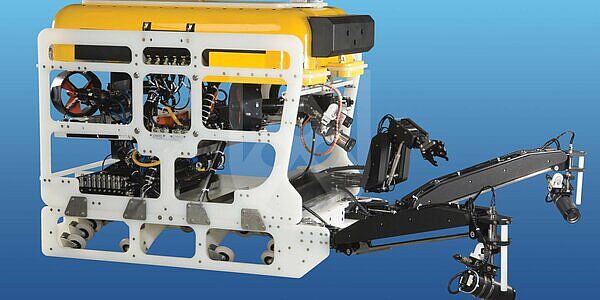

ROV 部件

遥控潜水器（ROV）不断被用于在越来越深的水域下工作。为助一臂之力，我们提供了很多耐腐蚀的关键部件用来组装 ROV。其中包括本身具有浮力的 Polystone® P（PP）和 Polystone® D（PE-HMW）材料，用以制作侧框架。而电子元件箱则采用 SUSTARIN C（POM-C）制造，替代了金属部件，因材料重量轻、耐腐蚀。同样因重量轻、耐腐蚀和耐冲击能力卓越，SUSTAMID 6G 也被作为推力喷嘴和 ROV 桶的材料。

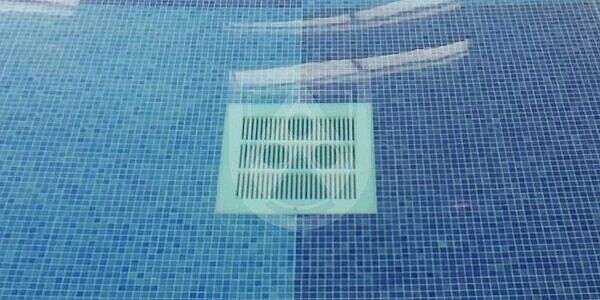

格栅、排水盖板和框架

我们的格栅、排水盖板和框架均采用 Polystone^® D（PE-HMW）制成，坚固耐用，非常适合人流密集区；因为耐腐蚀，也适用于潮湿区或干燥区。由于重量轻，提升取放毫不费力。

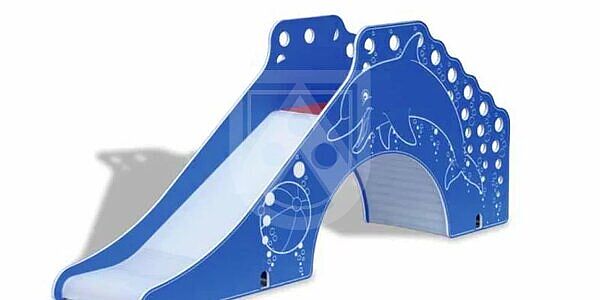

游戏围栏和幼儿滑梯

游戏围栏和幼儿滑梯采用 Polystone^® D（PE-HMW）制成，干净卫生、易于清洁且耐磨。

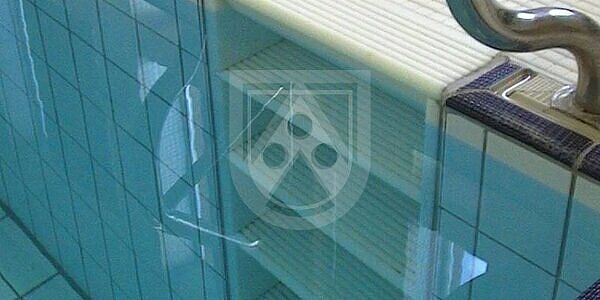

泳池台阶和入口坡道

Polystone^® D（PE-HMW）泳池台阶和入口坡道根据您的实际应用定制而成，防滑耐用，可采用单色或双色设计。

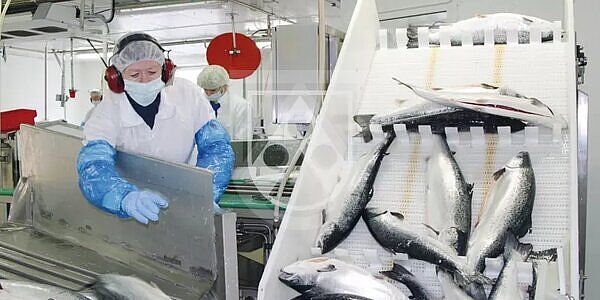

滑轨

鱼类加工过程中使用的输送机系统设计有滑轨，采用 Polystone^® D（PE-HMW）制成。此材料适合与食物直接接触，易于清洁，并且因其出色的滑动性能而提高了输送机的效率。

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	240772	Polystone® D green extruded	sheet	sheet	traffic green, similar RAL 6024	2.000 x 1.000 x 6 mm	2,000 mm	1,000 mm	6 mm
Stock item (no MOQ)	211653	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	211690	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	211937	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 20 (-0/+0,4) mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	212011	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 15 (-0/+0,4) mm	3,000 mm	1,250 mm	15 mm
No stock item (MOQ)	213061	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm
No stock item (no MOQ)	213062	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 12 mm	2,000 mm	1,000 mm	12 mm
Stock item (no MOQ)	213063	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 15 mm	2,000 mm	1,000 mm	15 mm
Stock item (no MOQ)	213064	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
Stock item (no MOQ)	213065	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 25 mm	2,000 mm	1,000 mm	25 mm
Stock item (no MOQ)	213066	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
Stock item (no MOQ)	213067	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 40 mm	2,000 mm	1,000 mm	40 mm
Stock item (no MOQ)	213068	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 50 mm	2,000 mm	1,000 mm	50 mm
No stock item (no MOQ)	213069	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 60 mm	2,000 mm	1,000 mm	60 mm
Stock item (no MOQ)	213070	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 10 mm	3,000 mm	1,250 mm	10 mm
Stock item (no MOQ)	213071	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (no MOQ)	213072	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 25 mm	3,000 mm	1,250 mm	25 mm
No stock item (no MOQ)	218496	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 12 mm	3,000 mm	1,250 mm	12 mm
Stock item (no MOQ)	218497	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 15 mm	3,000 mm	1,250 mm	15 mm
No stock item (MOQ)	222132	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 35 mm	3,000 mm	1,250 mm	35 mm
No stock item (no MOQ)	222133	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 40 mm	3,000 mm	1,250 mm	40 mm
No stock item (no MOQ)	222134	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 50 mm	3,000 mm	1,250 mm	50 mm
Stock item (no MOQ)	222135	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 30 mm	3,000 mm	1,250 mm	30 mm
No stock item (no MOQ)	222137	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 8 mm	2,000 mm	1,000 mm	8 mm
No stock item (no MOQ)	228806	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 70 mm	2,000 mm	1,000 mm	70 mm
No stock item (MOQ)	229158	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 16 mm	2,000 mm	1,000 mm	16 mm
No stock item (MOQ)	244956	Polystone® D green pressed	sheet	sheet	pastel green, similar RAL 6019	2.000 x 1.000 x 62 mm	2,000 mm	1,000 mm	62 mm
No stock item (MOQ)	245929	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	4.000 x 2.000 x 20 mm	4,000 mm	2,000 mm	20 mm
No stock item (no MOQ)	246389	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 35 mm	2,000 mm	1,000 mm	35 mm
No stock item (MOQ)	246760	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	4.000 x 2.000 (-0/+20) x 25 mm	4,000 mm	2,000 mm	25 mm
No stock item (MOQ)	246867	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	4.000 x 2.000 x 30 mm	4,000 mm	2,000 mm	30 mm
No stock item (MOQ)	256618	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 15 mm	3,000 mm	2,000 mm	15 mm
No stock item (MOQ)	256619	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 20 mm	3,000 mm	2,000 mm	20 mm
No stock item (MOQ)	256620	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 25 mm	3,000 mm	2,000 mm	25 mm
No stock item (MOQ)	256621	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 30 mm	3,000 mm	2,000 mm	30 mm
No stock item (MOQ)	256622	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 40 mm	3,000 mm	2,000 mm	40 mm
No stock item (MOQ)	256623	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 50 mm	3,000 mm	2,000 mm	50 mm
No stock item (MOQ)	267005	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 10 mm	3,000 mm	2,000 mm	10 mm
No stock item (MOQ)	267006	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 12 mm	3,000 mm	2,000 mm	12 mm
No stock item (MOQ)	271152	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 60 mm	3,000 mm	2,000 mm	60 mm
No stock item (MOQ)	276846	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 10 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	276847	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 12 mm	6,000 mm	2,000 mm	12 mm
No stock item (MOQ)	276848	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 15 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	276849	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	276850	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 25 mm	6,000 mm	2,000 mm	25 mm
No stock item (MOQ)	276851	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	276852	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 35 mm	6,000 mm	2,000 mm	35 mm
No stock item (MOQ)	276853	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 40 mm	6,000 mm	2,000 mm	40 mm
No stock item (MOQ)	276854	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 60 mm	6,000 mm	2,000 mm	60 mm
No stock item (MOQ)	276946	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	277057	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 50 mm	6,000 mm	2,000 mm	50 mm
No stock item (MOQ)	277123	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 25 mm	6,000 mm	2,500 mm	25 mm
No stock item (MOQ)	277124	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 40 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	277220	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 18 mm	6,000 mm	2,000 mm	18 mm
No stock item (MOQ)	277236	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 15 mm	6,000 mm	2,500 mm	15 mm
No stock item (MOQ)	277415	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 50 mm	6,000 mm	2,500 mm	50 mm
No stock item (MOQ)	277488	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 16 mm	6,000 mm	2,000 mm	16 mm
No stock item (MOQ)	277489	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 35 mm	6,000 mm	2,500 mm	35 mm
No stock item (MOQ)	277706	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 30 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	277879	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 10 mm	6,000 mm	2,500 mm	10 mm
No stock item (MOQ)	277907	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 12 mm	6,000 mm	2,500 mm	12 mm
No stock item (MOQ)	278106	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 8 mm	6,000 mm	2,000 mm	8 mm
No stock item (MOQ)	278142	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	6.000 x 2.500 x 15 mm	6,000 mm	2,500 mm	15 mm
No stock item (MOQ)	287807	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 18 mm	3,000 mm	2,000 mm	18 mm
No stock item (MOQ)	290027	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 1.000 x 20 mm	6,000 mm	1,000 mm	20 mm
No stock item (MOQ)	294775	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 1.000 x 50 (-0/+0,4) mm	6,000 mm	1,000 mm	50 mm
Stock item (no MOQ)	304676	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 80 mm	2,000 mm	1,000 mm	80 mm
Stock item (no MOQ)	304677	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 100 mm	2,000 mm	1,000 mm	100 mm
No stock item (MOQ)	304680	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 35 mm	3,000 mm	2,000 mm	35 mm
No stock item (MOQ)	304708	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 80 mm	6,000 mm	2,000 mm	80 mm
No stock item (MOQ)	304710	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 100 mm	6,000 mm	2,000 mm	100 mm
No stock item (MOQ)	314863	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 120 mm	2,000 mm	1,000 mm	120 mm
No stock item (MOQ)	324544	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 8 mm	3,000 mm	1,250 mm	8 mm
No stock item (MOQ)	324549	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 8 mm	6,000 mm	2,500 mm	8 mm
No stock item (MOQ)	328565	Polystone® D green pressed	sheet	sheet	light green, similar RAL 6027	2.000 x 1.000 x 82 mm	2,000 mm	1,000 mm	82 mm
No stock item (MOQ)	346527	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 1.000 x 25 mm	6,000 mm	1,000 mm	25 mm
No stock item (MOQ)	356873	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 x 2.000 x 8 mm	3,000 mm	2,000 mm	8 mm
No stock item (no MOQ)	363366	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 60 mm	3,000 mm	1,250 mm	60 mm
No stock item (MOQ)	363407	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 60 mm	6,000 mm	2,500 mm	60 mm
No stock item (MOQ)	370404	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (-0) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	370405	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (-0) x 15 mm	3,000 mm	1,250 mm	15 mm
No stock item (MOQ)	372173	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	2000 x 1000 x 82 mm	2,000 mm	1,000 mm	82 mm
No stock item (MOQ)	378402	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	6.000 x 2.000 x 82 mm	6,000 mm	2,000 mm	82 mm
No stock item (MOQ)	381058	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 90 mm	2,000 mm	1,000 mm	90 mm
No stock item (MOQ)	401436	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	2000 x 1000 x 72 mm	2,000 mm	1,000 mm	72 mm
No stock item (MOQ)	401564	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	6.000 x 2.000 x 72 mm	6,000 mm	2,000 mm	72 mm
No stock item (MOQ)	404796	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 155 mm	2,000 mm	1,000 mm	155 mm
No stock item (MOQ)	404798	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	2.000 x 1.000 x 125 mm	2,000 mm	1,000 mm	125 mm
No stock item (MOQ)	412155	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	2000 x 1000 x 130 mm	2,000 mm	1,000 mm	130 mm
No stock item (MOQ)	412157	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	2000 x 1000 x 100 mm	2,000 mm	1,000 mm	100 mm
No stock item (MOQ)	412582	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	3.000 (-0/+100) x 1.250 (+/-30) x 15 mm	3,000 mm	1,250 mm	15 mm
No stock item (MOQ)	414607	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 1.000 x 40 mm	6,000 mm	1,000 mm	40 mm
No stock item (MOQ)	417043	Polystone® D green pressed	sheet	sheet	pastel green, similar RAL 6019	6.000 x 2.000 x 62 mm	6,000 mm	2,000 mm	62 mm
No stock item (MOQ)	417966	Polystone® D green pressed	sheet	sheet	turquoise green, similar RAL 6016	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	418191	Polystone® D green pressed	sheet	sheet	turquoise green, similar RAL 6016	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	419856	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 1.000 x 30 mm	6,000 mm	1,000 mm	30 mm
No stock item (MOQ)	420473	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 70 mm	6,000 mm	2,000 mm	70 mm
No stock item (MOQ)	425505	Polystone® D green pressed	sheet	sheet	pure green, similar RAL 6037	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	425954	Polystone® D green pressed	sheet	sheet	pure green, similar RAL 6037	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	426904	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	6.000 x 1.000 x 82 mm	6,000 mm	1,000 mm	82 mm
No stock item (MOQ)	430471	Polystone® D green pressed	sheet	sheet	traffic green, similar RAL 6024	2000 x 1000 x 155 mm	2,000 mm	1,000 mm	155 mm
No stock item (MOQ)	442653	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	3.000 (-0/+100) x 1.250 (+/-30) x 30 (-0/+0,4) mm	3,000 mm	1,250 mm	30 mm
No stock item (MOQ)	445101	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 1.000 x 50 mm	6,000 mm	1,000 mm	50 mm
No stock item (MOQ)	450315	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 1.000 x 60 mm	6,000 mm	1,000 mm	60 mm
No stock item (MOQ)	451526	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 1.000 x 80 mm	6,000 mm	1,000 mm	80 mm
No stock item (MOQ)	457523	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	457525	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.500 x 15 mm	6,000 mm	2,500 mm	15 mm
No stock item (MOQ)	464034	Polystone® D green pressed	sheet	sheet	green, similar RAL 6032	6.000 x 2.000 x 90 mm	6,000 mm	2,000 mm	90 mm

Technical Specifications Polystone® D green pressed

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,95
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>27
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>1200
Shore hardness	DIN EN ISO 868	scale D	65

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-100 … 80
Service temperature, short term (max.)	Average	°C	80
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0002
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40
