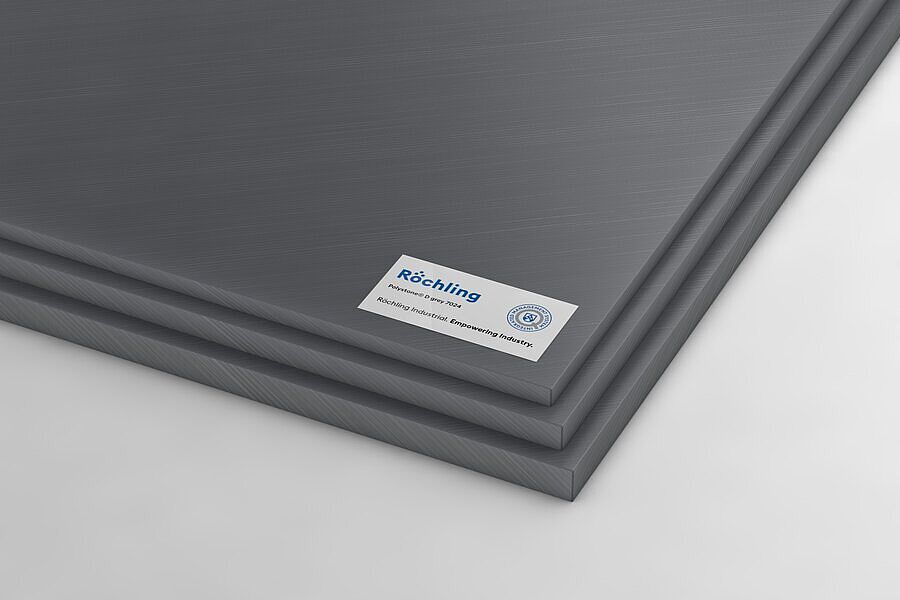

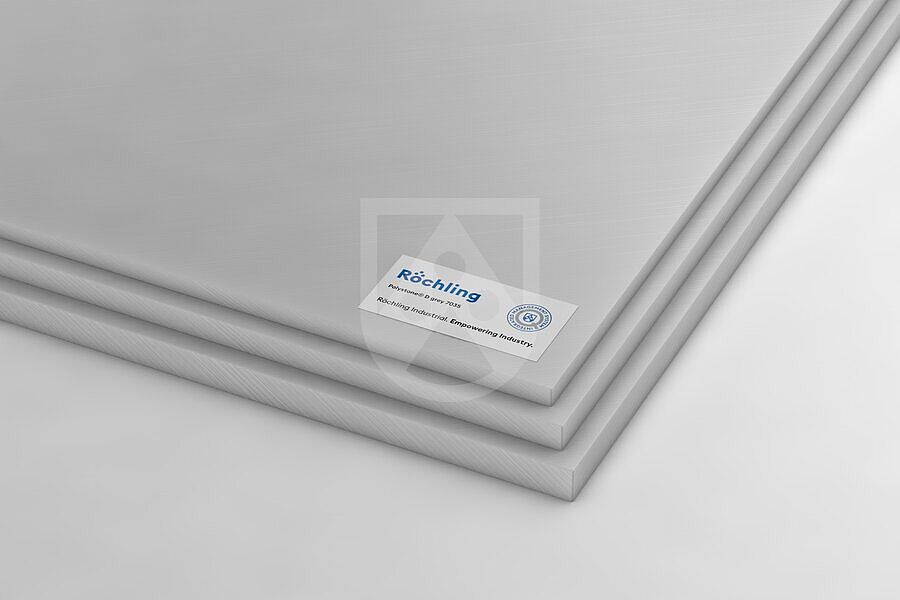

Polystone® D grey

PE — PE-HD - PE 500

Polystone^® D is a high-molecular polyethylene (PE-HMW/PE 500) which is outstanding for its good mechanical properties such as scratch- and cut resistance and excellent acid resistance. The material is used in various branches of industry such as the foodstuffs and bottling industry or in medical technology.

graphite grey, similar RAL 7024agate grey, similar RAL 7038light grey, similar RAL 7035window grey, similar RAL 7040

All colors

sheet

Characteristics

Good mechanical properties
Physiologically safe
Good wear resistance
Good cutting resistance
High scratch resistance
Good sliding properties

Industries

机械工程行业
食品行业
肉类、鱼类和禽类加工
烘焙店和糖果店

Application Examples

Curved pool grating

Curved pool grating made of Polystone^® D.

Straight pool grating

Straight pool grating installed in Harbourne Pool, Birmingham, UK.

溢流回水通道的格栅罩

通道格栅采用 Polystone^® D 制成，并经过专门加工以配合水池形状。它们符合 DIN 51097 标准 C 级要求，有多种颜色可供选择，具有很高的抗断裂和抗腐蚀性能，使用寿命长。

座椅和长凳

座椅和长凳采用 Polystone®D（PE-HMW）制成，并根据您的特殊要求进行加工，抗氯性高、耐刮擦且使用寿命长。另外，它们还有许多不同的颜色可供选择，让您的游泳浴池外观与众不同。

ROV 部件

遥控潜水器（ROV）不断被用于在越来越深的水域下工作。为助一臂之力，我们提供了很多耐腐蚀的关键部件用来组装 ROV。其中包括本身具有浮力的 Polystone® P（PP）和 Polystone® D（PE-HMW）材料，用以制作侧框架。而电子元件箱则采用 SUSTARIN C（POM-C）制造，替代了金属部件，因材料重量轻、耐腐蚀。同样因重量轻、耐腐蚀和耐冲击能力卓越，SUSTAMID 6G 也被作为推力喷嘴和 ROV 桶的材料。

格栅、排水盖板和框架

我们的格栅、排水盖板和框架均采用 Polystone^® D（PE-HMW）制成，坚固耐用，非常适合人流密集区；因为耐腐蚀，也适用于潮湿区或干燥区。由于重量轻，提升取放毫不费力。

游戏围栏和幼儿滑梯

游戏围栏和幼儿滑梯采用 Polystone^® D（PE-HMW）制成，干净卫生、易于清洁且耐磨。

泳池台阶和入口坡道

Polystone^® D（PE-HMW）泳池台阶和入口坡道根据您的实际应用定制而成，防滑耐用，可采用单色或双色设计。

滑轨

鱼类加工过程中使用的输送机系统设计有滑轨，采用 Polystone^® D（PE-HMW）制成。此材料适合与食物直接接触，易于清洁，并且因其出色的滑动性能而提高了输送机的效率。

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	210652	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	217235	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	217428	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	15 x 1000 x 2000 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	218502	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	17 x 1000 x 2000 mm	2,000 mm	1,000 mm	17 mm
No stock item (MOQ)	218503	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	218505	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	74 x 1000 x 2000 mm	2,000 mm	1,000 mm	74 mm
No stock item (MOQ)	218506	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	94 x 1000 x 2000 mm	2,000 mm	1,000 mm	94 mm
No stock item (MOQ)	235955	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	17 x 2000 x 6000 mm	6,000 mm	2,000 mm	17 mm
No stock item (MOQ)	237419	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	22 x 1000 x 2000 mm	2,000 mm	1,000 mm	22 mm
No stock item (MOQ)	248095	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	17 x 2000 x 4000 mm	4,000 mm	2,000 mm	17 mm
No stock item (MOQ)	248639	Polystone® D grey pressed	sheet	sheet	window grey, similar RAL 7040	40 x 1000 x 2000 mm	2,000 mm	1,000 mm	40 mm
No stock item (MOQ)	249612	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	15 x 1000 x 2000 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	264824	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	10 x 1000 x 2000 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	267497	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	15 x 1000 x 2000 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	276743	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	276753	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	15 x 2000 x 6000 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	277187	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	277254	Polystone® D grey pressed	sheet	sheet	iron grey, similar RAL 7011	12 x 2500 x 6000 mm	6,000 mm	2,500 mm	12 mm
No stock item (MOQ)	277348	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	22 x 2000 x 6000 mm	6,000 mm	2,000 mm	22 mm
No stock item (MOQ)	277585	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	277959	Polystone® D grey pressed	sheet	sheet	window grey, similar RAL 7040	40 x 2500 x 6000 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	278157	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	10 x 2000 x 6000 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	278228	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	15 x 2000 x 6000 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	282077	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	282106	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	288886	Polystone® D grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	8 x 2000 x 6000 mm	6,000 mm	2,000 mm	8 mm
No stock item (MOQ)	290825	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	20 x 2500 x 6000 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	295955	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	74 x 2000 x 6000 mm	6,000 mm	2,000 mm	74 mm
No stock item (MOQ)	309731	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	314054	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	314077	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	94 x 2000 x 6000 mm	6,000 mm	2,000 mm	94 mm
No stock item (MOQ)	314195	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	10 x 1000 x 2000 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	318310	Polystone® D grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	8 x 1000 x 2000 mm	2,000 mm	1,000 mm	8 mm
No stock item (MOQ)	352427	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	355984	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	45 x 1000 x 2000 mm	2,000 mm	1,000 mm	45 mm
No stock item (MOQ)	355990	Polystone® D grey pressed	sheet	sheet	light grey, similar RAL 7035	45 x 2000 x 6000 mm	6,000 mm	2,000 mm	45 mm
No stock item (MOQ)	369827	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	30 x 2000 x 6000 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	374876	Polystone® D grey pressed	sheet	sheet	umbra grey, similar RAL 7022	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	375024	Polystone® D grey pressed	sheet	sheet	umbra grey, similar RAL 7022	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	402278	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	25 x 1000 x 2000 mm	2,000 mm	1,000 mm	25 mm
No stock item (MOQ)	402951	Polystone® D grey pressed	sheet	sheet	dust grey, similar RAL 7037	25 x 2000 x 6000 mm	6,000 mm	2,000 mm	25 mm
No stock item (MOQ)	407709	Polystone® D grey pressed	sheet	sheet	umbra grey, similar RAL 7022	20 x 1000 x 2000 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	413403	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	25 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	25 mm
No stock item (MOQ)	413482	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	25 x 2500 x 6000 mm	6,000 mm	2,500 mm	25 mm
No stock item (MOQ)	415648	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	20 x 2000 x 6000 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	415675	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	30 x 1000 x 2000 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	415945	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	30 x 2000 x 6000 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	428239	Polystone® D grey pressed	sheet	sheet	window grey, similar RAL 7040	40 x 2000 x 6000 mm	6,000 mm	2,000 mm	40 mm
No stock item (MOQ)	430470	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	30 x 1500 x 2000 mm	2,000 mm	1,500 mm	30 mm
No stock item (MOQ)	433349	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	10 x 1000 x 2000 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	433373	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	10 x 2000 x 6000 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	438062	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	123 x 1000 x 3000 mm	3,000 mm	1,000 mm	123 mm
No stock item (MOQ)	438561	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	123 x 2000 x 6000 mm	6,000 mm	2,000 mm	123 mm
No stock item (MOQ)	440288	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	20 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	440303	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	20 x 2500 x 6000 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	447838	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	30 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	30 mm
No stock item (MOQ)	449422	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	20 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	449446	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	20 x 2500 x 6000 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	449451	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	30 x 2500 x 6000 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	452070	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	40 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	40 mm
No stock item (MOQ)	452397	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	40 x 2500 x 6000 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	453982	Polystone® D grey pressed	sheet	sheet	window grey, similar RAL 7040	40 x 2500 x 6000 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	464417	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	20 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	464455	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	20 x 2500 x 6000 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	469190	Polystone® D grey pressed	sheet	sheet	agate grey, similar RAL 7038	20 x 2000 x 2000 mm	2,000 mm	2,000 mm	20 mm
No stock item (MOQ)	469584	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	10 x 1000 x 2000 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	469585	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	15 x 1000 x 2000 mm	2,000 mm	1,000 mm	15 mm
No stock item (MOQ)	469648	Polystone® D grey pressed	sheet	sheet	slate grey, similar RAL 7015	10 x 2000 x 6000 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	470371	Polystone® D grey pressed	sheet	sheet	graphite grey, similar RAL 7024	40 x 2000 x 6000 mm	6,000 mm	2,000 mm	40 mm
No stock item (MOQ)	471129	Polystone® D grey pressed	sheet	sheet	telegrey 2, similar RAL 7046	22 x 2000 x 6000 mm	6,000 mm	2,000 mm	22 mm
No stock item (MOQ)	476519	Polystone® D grey pressed	sheet	sheet	anthracite grey, similar RAL 7016	30 x 1000 x 2000 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	476545	Polystone® D grey pressed	sheet	sheet	anthracite grey, similar RAL 7016	30 x 2000 x 6000 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	481709	Polystone® D grey pressed	sheet	sheet	traffic grey B, similar RAL 7043	30 x 1000 x 2000 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	481710	Polystone® D grey pressed	sheet	sheet	traffic grey B, similar RAL 7043	30 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	30 mm
No stock item (MOQ)	481769	Polystone® D grey pressed	sheet	sheet	traffic grey B, similar RAL 7043	30 x 2000 x 6000 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	481772	Polystone® D grey pressed	sheet	sheet	traffic grey B, similar RAL 7043	30 x 2500 x 6000 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	443540	Polystone® D UV-stabilized grey pressed	sheet	sheet	grey	40 x 1250 (+/-30) x 3000 (-0/+100) mm	3,000 mm	1,250 mm	40 mm
No stock item (MOQ)	466948	Polystone® D UV-stabilized grey pressed	sheet	sheet	graphite grey, similar RAL 7024	100 x 1000 x 2000 mm	2,000 mm	1,000 mm	100 mm
No stock item (MOQ)	467769	Polystone® D UV-stabilized grey pressed	sheet	sheet	slate grey, similar RAL 7015	14 x 2500 x 6000 mm	6,000 mm	2,500 mm	14 mm
No stock item (MOQ)	211355	Polystone® D non-twisting grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	40 x 1000 x 2000 mm	2,000 mm	1,000 mm	40 mm
No stock item (MOQ)	211416	Polystone® D non-twisting grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	40 x 1000 x 2500 mm	2,500 mm	1,000 mm	40 mm
No stock item (MOQ)	211417	Polystone® D non-twisting grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	40 x 1000 x 2200 mm	2,200 mm	1,000 mm	40 mm
Stock item (no MOQ)	217309	Polystone® D non-twisting grey pressed	sheet	sheet	telegrey 1, similar RAL 7045	15 x 2000 x 3000 mm	3,000 mm	2,000 mm	15 mm

Technical Specifications Polystone® D grey

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,95
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>27
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>1200
Shore hardness	DIN EN ISO 868	scale D	65

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-100 … 80
Service temperature, short term (max.)	Average	°C	80
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0002
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40

Downloads

Technical Data Sheet Polystone® D grey

FDA Compliance Polystone® D grey

Flyer - Oil and Gas Gloucester - EN
