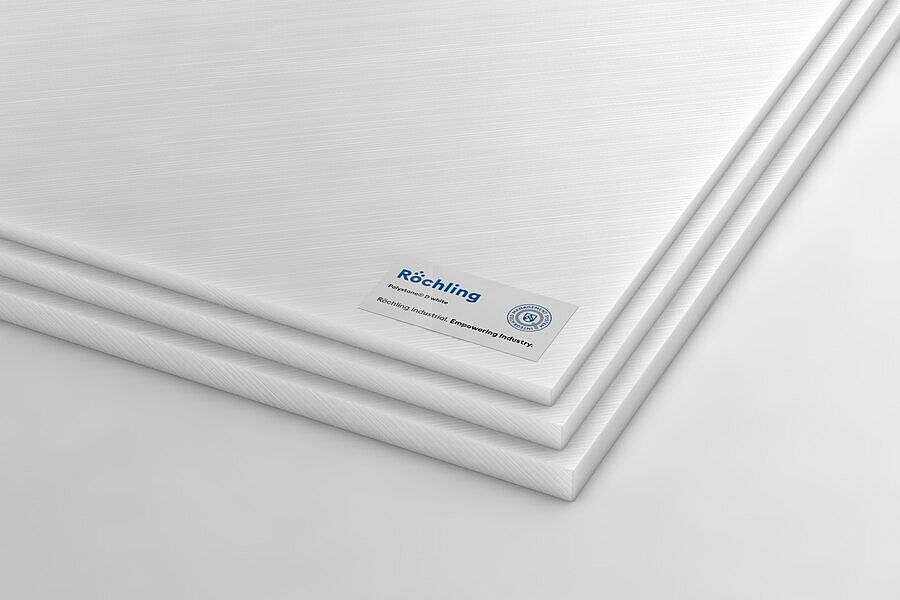

Polystone® D white

PE — PE-HD - PE 500

Polystone^® D is a high-molecular polyethylene (PE-HMW/PE 500) which is outstanding for its good mechanical properties such as scratch- and cut resistance and excellent acid resistance. The material is used in various branches of industry such as the foodstuffs and bottling industry or in medical technology.

white, similar RAL 9010traffic white, similar RAL 9016signal white, similar RAL 9003

sheet

Characteristics

Good mechanical properties
Physiologically safe
Very wear, cutting and scratch resistant

Industries

Application Examples

Curved pool grating

Curved pool grating made of Polystone^® D.

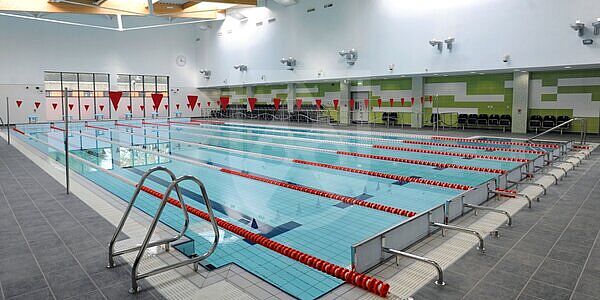

Straight pool grating

Straight pool grating installed in Harbourne Pool, Birmingham, UK.

溢流回水通道的格栅罩

通道格栅采用 Polystone^® D 制成，并经过专门加工以配合水池形状。它们符合 DIN 51097 标准 C 级要求，有多种颜色可供选择，具有很高的抗断裂和抗腐蚀性能，使用寿命长。

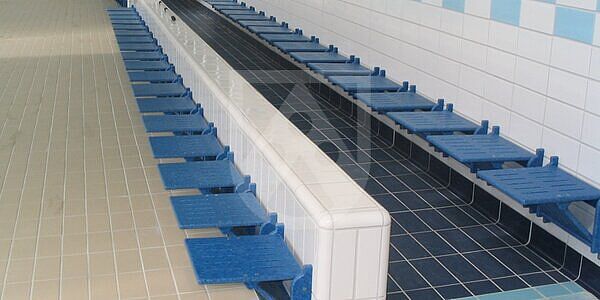

座椅和长凳

座椅和长凳采用 Polystone®D（PE-HMW）制成，并根据您的特殊要求进行加工，抗氯性高、耐刮擦且使用寿命长。另外，它们还有许多不同的颜色可供选择，让您的游泳浴池外观与众不同。

ROV 部件

遥控潜水器（ROV）不断被用于在越来越深的水域下工作。为助一臂之力，我们提供了很多耐腐蚀的关键部件用来组装 ROV。其中包括本身具有浮力的 Polystone® P（PP）和 Polystone® D（PE-HMW）材料，用以制作侧框架。而电子元件箱则采用 SUSTARIN C（POM-C）制造，替代了金属部件，因材料重量轻、耐腐蚀。同样因重量轻、耐腐蚀和耐冲击能力卓越，SUSTAMID 6G 也被作为推力喷嘴和 ROV 桶的材料。

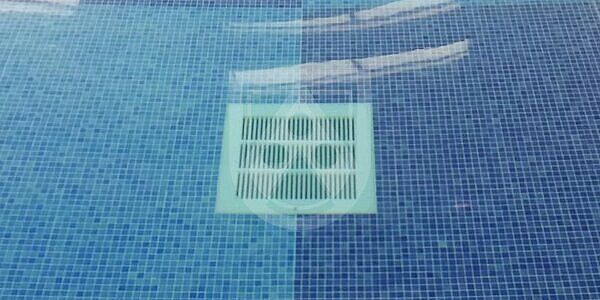

格栅、排水盖板和框架

我们的格栅、排水盖板和框架均采用 Polystone^® D（PE-HMW）制成，坚固耐用，非常适合人流密集区；因为耐腐蚀，也适用于潮湿区或干燥区。由于重量轻，提升取放毫不费力。

游戏围栏和幼儿滑梯

游戏围栏和幼儿滑梯采用 Polystone^® D（PE-HMW）制成，干净卫生、易于清洁且耐磨。

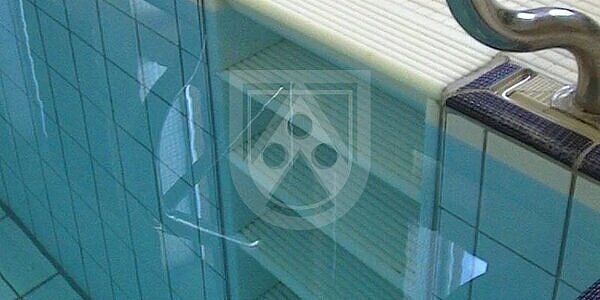

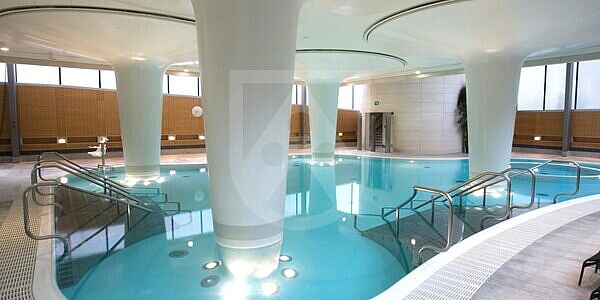

泳池台阶和入口坡道

Polystone^® D（PE-HMW）泳池台阶和入口坡道根据您的实际应用定制而成，防滑耐用，可采用单色或双色设计。

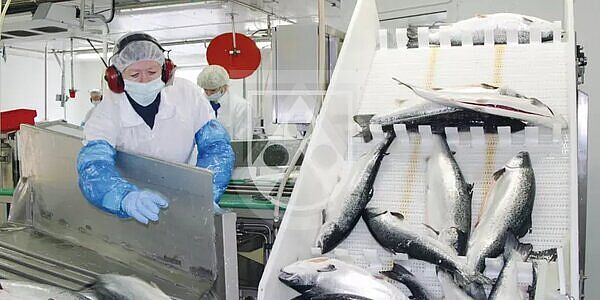

滑轨

鱼类加工过程中使用的输送机系统设计有滑轨，采用 Polystone^® D（PE-HMW）制成。此材料适合与食物直接接触，易于清洁，并且因其出色的滑动性能而提高了输送机的效率。

Variants

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	247420	Polystone® D white pressed	sheet	sheet	white, similar RAL 9010	2.000 x 1.000 x 12 mm	2,000 mm	1,000 mm	12 mm
No stock item (MOQ)	248753	Polystone® D white pressed	sheet	sheet	white, similar RAL 9010	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	251822	Polystone® D white pressed	sheet	sheet	white, similar RAL 9010	2.000 x 1.000 x 25 mm	2,000 mm	1,000 mm	25 mm
No stock item (MOQ)	277758	Polystone® D white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	372870	Polystone® D white pressed	sheet	sheet	traffic white, similar RAL 9016	6.000 x 2.000 x 85 mm	6,000 mm	2,000 mm	85 mm
No stock item (MOQ)	402406	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	402408	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	3.000 (-0/+100) x 1.250 (+/-30) x 25 mm	3,000 mm	1,250 mm	25 mm
No stock item (MOQ)	402409	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	3.000 (-0/+100) x 1.250 (+/-30) x 40 mm	3,000 mm	1,250 mm	40 mm
No stock item (MOQ)	403065	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	403066	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	6.000 x 2.500 x 25 mm	6,000 mm	2,500 mm	25 mm
No stock item (MOQ)	403067	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	6.000 x 2.500 x 40 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	403156	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	3.000 (-0/+100) x 1.250 (+/-30) x 30 mm	3,000 mm	1,250 mm	30 mm
No stock item (MOQ)	403243	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	6.000 x 2.500 x 30 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	409187	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	3.000 (-0/+100) x 1.250 (+/-30) x 15 mm	3,000 mm	1,250 mm	15 mm
No stock item (MOQ)	409203	Polystone® D white pressed	sheet	sheet	signal white, similar RAL 9003	6.000 x 2.500 x 15 mm	6,000 mm	2,500 mm	15 mm
No stock item (MOQ)	418062	Polystone® D white pressed	sheet	sheet	traffic white, similar RAL 9016	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	434505	Polystone® D white pressed	sheet	sheet	traffic white, similar RAL 9016	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	462542	Polystone® D white pressed	sheet	sheet	traffic white, similar RAL 9016	6.000 x 2.000 x 32 mm	6,000 mm	2,000 mm	32 mm
No stock item (MOQ)	462544	Polystone® D white pressed	sheet	sheet	traffic white, similar RAL 9016	6.000 x 2.000 x 47 mm	6,000 mm	2,000 mm	47 mm
No stock item (MOQ)	218142	Polystone® D UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	2.000 (-0) x 1.000 (-0) x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	264602	Polystone® D UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	3.000 x 2.000 x 10 mm	3,000 mm	2,000 mm	10 mm
No stock item (MOQ)	276952	Polystone® D UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	278151	Polystone® D UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.000 x 10 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	287005	Polystone® D UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.500 x 10 mm	6,000 mm	2,500 mm	10 mm
No stock item (MOQ)	377703	Polystone® D UV-stabilized white pressed	sheet	sheet	signal white, similar RAL 9003	3.000 (-0/+100) x 1.250 (+/-30) x 12 mm	3,000 mm	1,250 mm	12 mm
No stock item (MOQ)	377718	Polystone® D UV-stabilized white pressed	sheet	sheet	signal white, similar RAL 9003	6.000 x 2.500 x 12 mm	6,000 mm	2,500 mm	12 mm
No stock item (MOQ)	417336	Polystone® D UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	3.000 (-0/+100) x 1.250 (+/-30) x 35 mm	3,000 mm	1,250 mm	35 mm
No stock item (MOQ)	417551	Polystone® D UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.500 x 35 mm	6,000 mm	2,500 mm	35 mm
No stock item (MOQ)	480656	Polystone® D UV-stabilized white pressed	sheet	sheet	white, similar RAL 9010	6.000 x 2.000 x 18 mm	6,000 mm	2,000 mm	18 mm

Technical Specifications Polystone® D white

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,95
Water absorption	DIN EN ISO 62	%	<0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB

Mechanical properties

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>27
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>1200
Shore hardness	DIN EN ISO 868	scale D	65

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-100 … 80
Service temperature, short term (max.)	Average	°C	80
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0002
Volume resistivity	DIN EN 62631-3-1	Ohm * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ohm	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40
