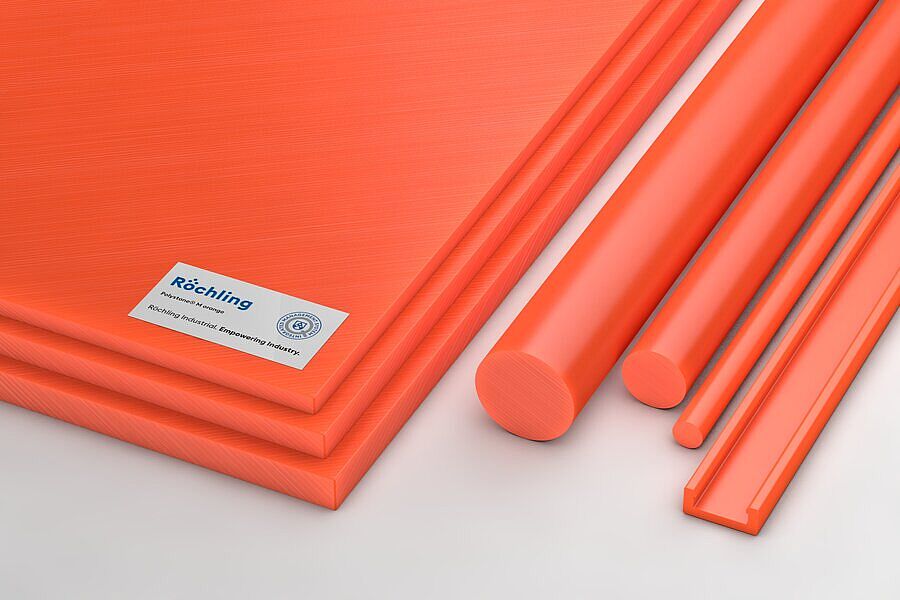

Polystone® M orange

PE — PE-UHMW - PE 1000

Polystone^® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

traffic orange, similar RAL 2009pure orange, similar RAL 2004bright red orange, similar RAL 2008deep orange, similar RAL 2011

rodprofilesheet

Characteristics

Good mechanical properties
Low coefficient of friction
Very good abrasion and wear resistance

Industries

Application Examples

供应区域的滑动片

在沼气设施可触及的供应区（手推式基板），使用了超高分子聚乙烯（PE-UHMW）制成的 Polystone® 滑动片。这种 Polystone® 滑动片起着运输链的作用，具有出色的滑动和摩擦性能。而且，还有坚固、耐酸和耐磨等特点。

用于链条导件的导链型材

此材料滑动摩擦系数低，使采用 Polystone^®M（PE-UHMW）制成的挤压和滚轧型材可用于链条导件，从而减少了链式输送机所需的驱动能量，同时提高了工艺稳定性。Polystone^®M 还具有永久的自滑特性。

挡板

采用我们的 Polystone^® M（PE-UHMW）制成的滑动片安装在挡板系统上，用于在停泊和港口操控过程中以及闲置期保护码头岸壁和船舶。这种即用即装的片材具有高度耐磨的特点，而且耐侵蚀、紫外线辐射和天气影响。

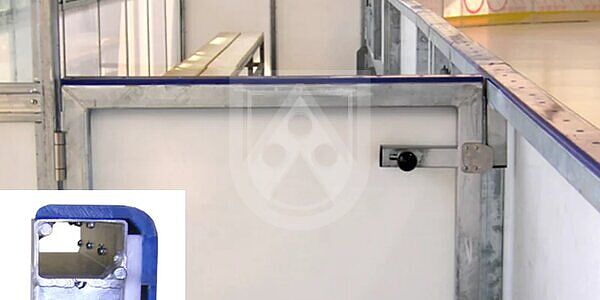

板材的扶栏型材

我们提供采用 Polystone^® M（PE-UHMW）制成的挤压和滚轧扶栏型材安装到板材上。

Variants

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	247311	Polystone® M orange extruded	rod	rod	traffic orange, similar RAL 2009	Ø 160 x 2.000 mm	2,000 mm		160 mm
No stock item (MOQ)	284554	Polystone® M orange extruded	rod	rod	traffic orange, similar RAL 2009	Ø 140 x 3.000 (-0/+60) mm	3,000 mm		140 mm
No stock item (MOQ)	285782	Polystone® M orange extruded	Special profile	Special profile (R385)	pure orange, similar RAL 2004	2.000 x 50 x 52 mm	2,000 mm	50 mm	52 mm
No stock item (MOQ)	297203	Polystone® M orange extruded	rod	rod	bright red orange, similar RAL 2008	Ø 65 x 2.000 mm	2,000 mm		65 mm
No stock item (MOQ)	335067	Polystone® M orange extruded	rod	rod	bright red orange, similar RAL 2008	Ø 45 x 2.000 mm	2,000 mm		45 mm
No stock item (MOQ)	361538	Polystone® M orange extruded	rod	rod	bright red orange, similar RAL 2008	Ø 100 x 2.000 mm	2,000 mm		100 mm
No stock item (MOQ)	386402	Polystone® M orange extruded	rod	rod	traffic orange, similar RAL 2009	Ø 60 x 1.000 mm	1,000 mm		60 mm
No stock item (MOQ)	419648	Polystone® M orange extruded	Special profile	Special profile (R555)	pure orange, similar RAL 2004	100.000 x 50 x 15 mm	100,000 mm	50 mm	15 mm
No stock item (MOQ)	443755	Polystone® M orange extruded	rod	rod	bright red orange, similar RAL 2008	Ø 130 x 2.000 mm	2,000 mm		130 mm
No stock item (MOQ)	444196	Polystone® M orange extruded	rod	rod	bright red orange, similar RAL 2008	Ø 40 x 2.000 mm	2,000 mm		40 mm
No stock item (MOQ)	447963	Polystone® M orange extruded	rod	rod	traffic orange, similar RAL 2009	Ø 130 x 2.000 mm	2,000 mm		130 mm
No stock item (MOQ)	471013	Polystone® M orange extruded	rod	rod	traffic orange, similar RAL 2009	Ø 40 x 2.000 mm	2,000 mm		40 mm
No stock item (MOQ)	471014	Polystone® M orange extruded	rod	rod	traffic orange, similar RAL 2009	Ø 140 x 2.000 mm	2,000 mm		140 mm
No stock item (MOQ)	472697	Polystone® M orange extruded	rod	rod	pure orange, similar RAL 2004	Ø 120 x 1.000 mm	1,000 mm		120 mm
No stock item (MOQ)	474998	Polystone® M orange extruded	Special profile	Special profile (R232)	pure orange, similar RAL 2004	50.000 x 15 x 4 mm	50,000 mm	15 mm	4 mm
No stock item (MOQ)	240571	Polystone® M orange pressed	sheet	sheet	traffic orange, similar RAL 2009	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	243766	Polystone® M orange pressed	sheet	sheet	traffic orange, similar RAL 2009	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	277440	Polystone® M orange pressed	sheet	sheet	traffic orange, similar RAL 2009	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	277571	Polystone® M orange pressed	sheet	sheet	pure orange, similar RAL 2004	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	418112	Polystone® M orange pressed	sheet	sheet	deep orange, similar RAL 2011	6.000 x 2.500 x 8 mm	6,000 mm	2,500 mm	8 mm
No stock item (MOQ)	448001	Polystone® M orange pressed	sheet	sheet	traffic orange, similar RAL 2009	6.000 x 2.500 x 21 mm	6,000 mm	2,500 mm	21 mm
No stock item (MOQ)	463124	Polystone® M orange pressed	sheet	sheet	traffic orange, similar RAL 2009	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	463174	Polystone® M orange pressed	sheet	sheet	traffic orange, similar RAL 2009	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm

Technical Specifications Polystone® M orange extruded

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,93
Water absorption	DIN EN ISO 62	%	<0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

Mechanical properties

	Test Method	Unit	Guideline Value
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>650
Notched impact strength	DIN EN ISO 11542	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>63

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	80

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ohm * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ohm	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40
