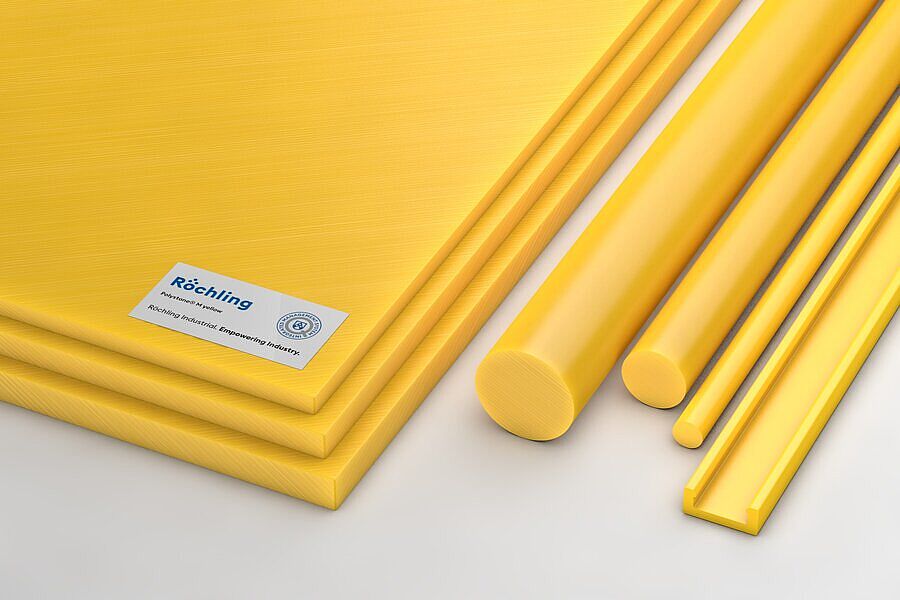

Polystone® M yellow

PE — PE-UHMW - PE 1000

Polystone^® M is an ultra-high molecular weight polyethylene (PE-UHMW/PE 1000) used to solve friction, wear and material flow problems in many industries. The material is characterized by excellent sliding properties, extreme wear resistance, high impact strength and very good resistance to chemicals and has established itself in technical applications. The material is available in various colors.

golden yellow, similar RAL 1004zinc yellow, similar RAL 1018signal yellow, similar RAL 1003colza yellow, similar RAL 1021

All colors

profilerodsheet

Characteristics

Low coefficient of friction
Very good abrasion and wear resistance
Good impact strength

Industries

机械工程行业

Application Examples

供应区域的滑动片

在沼气设施可触及的供应区（手推式基板），使用了超高分子聚乙烯（PE-UHMW）制成的 Polystone® 滑动片。这种 Polystone® 滑动片起着运输链的作用，具有出色的滑动和摩擦性能。而且，还有坚固、耐酸和耐磨等特点。

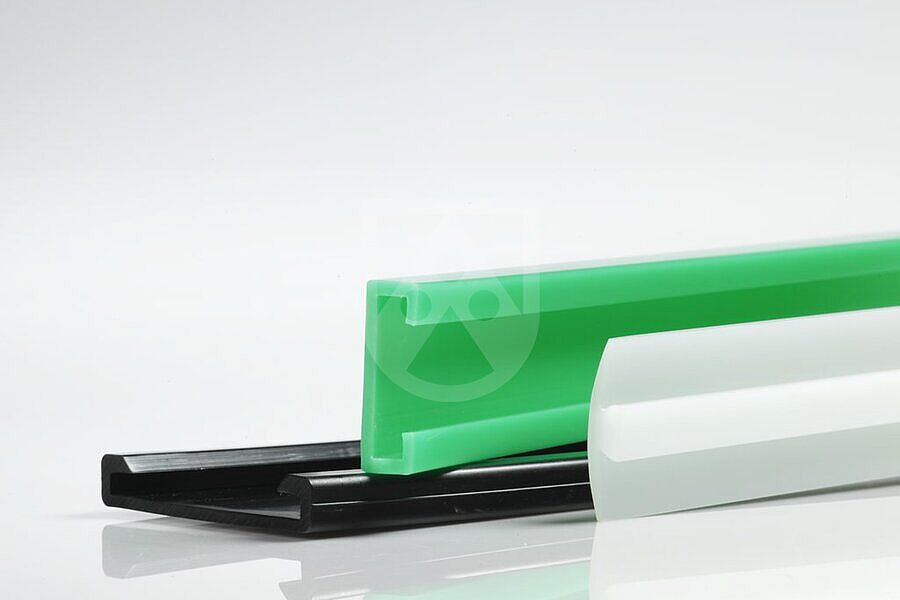

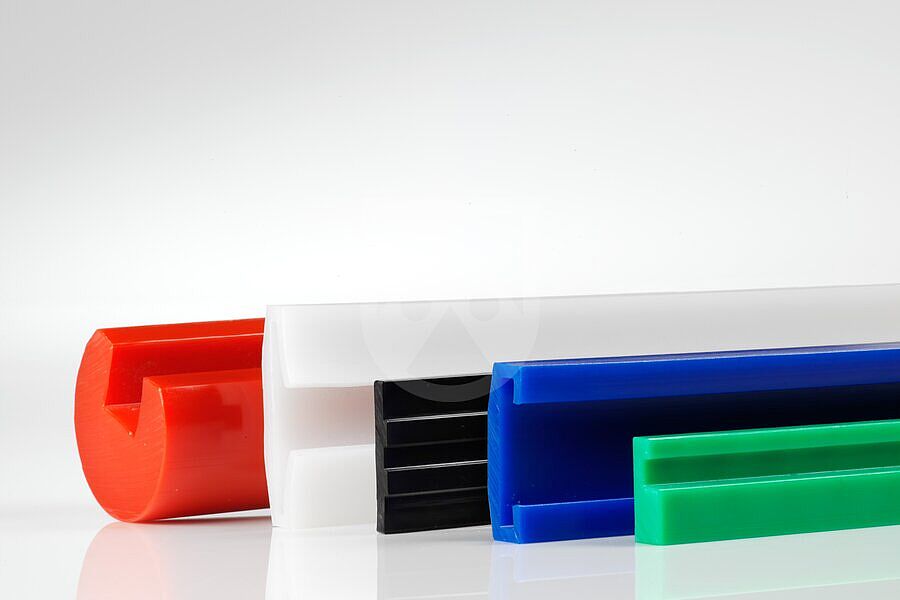

用于链条导件的导链型材

此材料滑动摩擦系数低，使采用 Polystone^®M（PE-UHMW）制成的挤压和滚轧型材可用于链条导件，从而减少了链式输送机所需的驱动能量，同时提高了工艺稳定性。Polystone^®M 还具有永久的自滑特性。

挡板

采用我们的 Polystone^® M（PE-UHMW）制成的滑动片安装在挡板系统上，用于在停泊和港口操控过程中以及闲置期保护码头岸壁和船舶。这种即用即装的片材具有高度耐磨的特点，而且耐侵蚀、紫外线辐射和天气影响。

板材的扶栏型材

我们提供采用 Polystone^® M（PE-UHMW）制成的挤压和滚轧扶栏型材安装到板材上。

Variants

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	212554	Polystone® M yellow extruded	Side-Guide profile	Side-Guide profile (R268)	golden yellow, similar RAL 1004	100.000 x 11,8 x 8 mm	100,000 mm	11.8 mm	8 mm
No stock item (MOQ)	274807	Polystone® M yellow extruded	rod	rod	zinc yellow, similar RAL 1018	Ø 140 x 3.000 (-0/+60) mm	3,000 mm		140 mm
No stock item (MOQ)	347617	Polystone® M yellow extruded	Special profile	Special profile (R559)	signal yellow, similar RAL 1003	6.590 x 90,4 x 15 mm	6,590 mm	90.4 mm	15 mm
No stock item (MOQ)	355545	Polystone® M yellow extruded	rod	rod	colza yellow, similar RAL 1021	Ø 15 x 2.000 mm	2,000 mm		15 mm
No stock item (MOQ)	369074	Polystone® M yellow extruded	square profile	square profile (R075)	colza yellow, similar RAL 1021	30.000 x 80 x 8 mm	30,000 mm	80 mm	8 mm
No stock item (MOQ)	374359	Polystone® M yellow extruded	rod	rod	colza yellow, similar RAL 1021	Ø 140 x 2.000 mm	2,000 mm		140 mm
No stock item (MOQ)	384731	Polystone® M yellow extruded	Special profile	Special profile (R559)	signal yellow, similar RAL 1003	2000 x 90,4 x 15 mm	2,000 mm	90.4 mm	15 mm
No stock item (MOQ)	384732	Polystone® M yellow extruded	Special profile	Special profile (R559)	signal yellow, similar RAL 1003	3000 x 90,4 x 15 mm	3,000 mm	90.4 mm	15 mm
No stock item (MOQ)	384847	Polystone® M yellow extruded	rod	rod	signal yellow, similar RAL 1003	Ø 60 x 2000 mm	2,000 mm		60 mm
No stock item (MOQ)	406928	Polystone® M yellow extruded	rod	rod	traffic yellow, similar RAL 1023	Ø 60 x 2000 mm	2,000 mm		60 mm
No stock item (MOQ)	412317	Polystone® M yellow extruded	rod	rod	traffic yellow, similar RAL 1023	Ø 60 x 3.000 mm	3,000 mm		60 mm
No stock item (MOQ)	420310	Polystone® M yellow extruded	rod	rod	traffic yellow, similar RAL 1023	Ø 120 x 2.000 mm	2,000 mm		120 mm
No stock item (MOQ)	420311	Polystone® M yellow extruded	rod	rod	signal yellow, similar RAL 1003	Ø 180 x 2.000 mm	2,000 mm		180 mm
No stock item (MOQ)	447690	Polystone® M yellow extruded	Special profile	Special profile (R559)	signal yellow, similar RAL 1003	7400 x 90,4 x 15 mm	7,400 mm	90.4 mm	15 mm
No stock item (MOQ)	447691	Polystone® M yellow extruded	Special profile	Special profile (R559)	signal yellow, similar RAL 1003	6950 x 90,4 x 15 mm	6,950 mm	90.4 mm	15 mm
No stock item (MOQ)	448793	Polystone® M yellow extruded	rod	rod	signal yellow, similar RAL 1003	Ø 130 x 2.000 mm	2,000 mm		130 mm
No stock item (MOQ)	453847	Polystone® M yellow extruded	U-profile	U-profile (R768)	zinc yellow, similar RAL 1018	6.000 x 25 x 5 mm	6,000 mm	25 mm	5 mm
No stock item (MOQ)	454426	Polystone® M yellow extruded	rod	rod	colza yellow, similar RAL 1021	Ø 20 x 1.000 mm	1,000 mm		20 mm
No stock item (MOQ)	460678	Polystone® M yellow extruded	Special profile	Special profile (R559)	signal yellow, similar RAL 1003	6.000 x 90,4 x 15 mm	6,000 mm	90.4 mm	15 mm
No stock item (MOQ)	461395	Polystone® M yellow extruded	rod	rod	colza yellow, similar RAL 1021	Ø 15 x 1.000 mm	1,000 mm		15 mm
No stock item (MOQ)	462760	Polystone® M yellow extruded	rod	rod	colza yellow, similar RAL 1021	Ø 10 x 1.000 mm	1,000 mm		10 mm
No stock item (MOQ)	464017	Polystone® M yellow extruded	C-profile	C-profile (R022)	colza yellow, similar RAL 1021	50.000 x 49 x 15,5 mm	50,000 mm	49 mm	15.5 mm
No stock item (MOQ)	473143	Polystone® M yellow extruded	rod	rod	golden yellow, similar RAL 1004	Ø 120 x 1.000 mm	1,000 mm		120 mm
No stock item (MOQ)	475298	Polystone® M yellow extruded	rod	rod	colza yellow, similar RAL 1021	Ø 30 x 2.000 mm	2,000 mm		30 mm
No stock item (MOQ)	475299	Polystone® M yellow extruded	rod	rod	colza yellow, similar RAL 1021	Ø 40 x 2.000 mm	2,000 mm		40 mm
No stock item (MOQ)	475301	Polystone® M yellow extruded	rod	rod	colza yellow, similar RAL 1021	Ø 50 x 2.000 mm	2,000 mm		50 mm
No stock item (MOQ)	476705	Polystone® M yellow extruded	rod	rod	zinc yellow, similar RAL 1018	Ø 70 x 1000 mm	1,000 mm		70 mm
No stock item (MOQ)	212549	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm
No stock item (MOQ)	239470	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 40 mm	6,000 mm	2,000 mm	40 mm
No stock item (MOQ)	239472	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 30 mm	6,000 mm	2,000 mm	30 mm
No stock item (MOQ)	242007	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2.000 x 1.000 x 40 mm	2,000 mm	1,000 mm	40 mm
No stock item (MOQ)	242818	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	3.000 x 1.000 x 6 mm	3,000 mm	1,000 mm	6 mm
No stock item (MOQ)	243225	Polystone® M yellow pressed	sheet	sheet	signal yellow, similar RAL 1003	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	256648	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	3.000 (-0/+100) x 1.250 (+/-30) x 10 mm	3,000 mm	1,250 mm	10 mm
No stock item (MOQ)	265586	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm
No stock item (MOQ)	268678	Polystone® M yellow pressed	sheet	sheet	signal yellow, similar RAL 1003	2.000 x 1.000 x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	276570	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	4.000 x 2.000 x 100 mm	4,000 mm	2,000 mm	100 mm
No stock item (MOQ)	277230	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 10 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	277448	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 15 mm	6,000 mm	2,000 mm	15 mm
No stock item (MOQ)	277449	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 35 mm	6,000 mm	2,000 mm	35 mm
No stock item (MOQ)	277541	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 1.000 x 80 mm	6,000 mm	1,000 mm	80 mm
No stock item (MOQ)	277553	Polystone® M yellow pressed	sheet	sheet	signal yellow, similar RAL 1003	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	278015	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.500 x 10 mm	6,000 mm	2,500 mm	10 mm
No stock item (MOQ)	341467	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	2.000 x 1.000 x 100 mm	2,000 mm	1,000 mm	100 mm
No stock item (MOQ)	365012	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.500 x 10 mm	6,000 mm	2,500 mm	10 mm
No stock item (MOQ)	371099	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 12 (-0/+0,4) mm	6,000 mm	2,000 mm	12 mm
No stock item (MOQ)	374070	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 1.000 x 30 (-0/+0,4) mm	6,000 mm	1,000 mm	30 mm
No stock item (MOQ)	375808	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	385827	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.500 x 50 mm	6,000 mm	2,500 mm	50 mm
No stock item (MOQ)	386166	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2000 x 1000 x 60 mm	2,000 mm	1,000 mm	60 mm
No stock item (MOQ)	386411	Polystone® M yellow pressed	sheet	sheet	zinc yellow, similar RAL 1018	2000 x 1000 x 70 mm	2,000 mm	1,000 mm	70 mm
No stock item (MOQ)	406593	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 25 (-0/+0,4) mm	6,000 mm	2,000 mm	25 mm
No stock item (MOQ)	407060	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 50 (-0/+0,6) mm	6,000 mm	2,000 mm	50 mm
No stock item (MOQ)	407440	Polystone® M yellow pressed	sheet	sheet	broom yellow, similar RAL 1032	2000 x 1000 x 70 mm	2,000 mm	1,000 mm	70 mm
No stock item (MOQ)	409179	Polystone® M yellow pressed	sheet	sheet	signal yellow, similar RAL 1003	3.000 (-0/+100) x 1.250 (+/-30) x 20 mm	3,000 mm	1,250 mm	20 mm
No stock item (MOQ)	409181	Polystone® M yellow pressed	sheet	sheet	signal yellow, similar RAL 1003	6.000 x 2.500 x 20 mm	6,000 mm	2,500 mm	20 mm
No stock item (MOQ)	413453	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	6.000 x 2.000 x 100 mm	6,000 mm	2,000 mm	100 mm
No stock item (MOQ)	414066	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.500 x 45 mm	6,000 mm	2,500 mm	45 mm
No stock item (MOQ)	426332	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	3.000 (-0/+100) x 1.250 (+/-30) x 45 mm	3,000 mm	1,250 mm	45 mm
No stock item (MOQ)	426756	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 1.000 x 80 mm	6,000 mm	1,000 mm	80 mm
No stock item (MOQ)	426772	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.500 x 40 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	450037	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2000 x 1000 x 80 mm	2,000 mm	1,000 mm	80 mm
No stock item (MOQ)	450038	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2000 x 1000 x 90 mm	2,000 mm	1,000 mm	90 mm
No stock item (MOQ)	450317	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2.000 x 1.000 x 80 mm	2,000 mm	1,000 mm	80 mm
No stock item (MOQ)	452745	Polystone® M yellow pressed	sheet	sheet	signal yellow, similar RAL 1003	6.000 x 2.500 x 20,1 mm	6,000 mm	2,500 mm	20.1 mm
No stock item (MOQ)	455578	Polystone® M yellow pressed	sheet	sheet	signal yellow, similar RAL 1003	6.000 x 2.500 x 20,1 mm	6,000 mm	2,500 mm	20.1 mm
No stock item (MOQ)	457075	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	6.000 x 2.000 x 120 mm	6,000 mm	2,000 mm	120 mm
No stock item (MOQ)	458260	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	2.000 x 1.000 x 120 mm	2,000 mm	1,000 mm	120 mm
No stock item (MOQ)	461510	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 8 mm	6,000 mm	2,000 mm	8 mm
No stock item (MOQ)	461645	Polystone® M yellow pressed	sheet	sheet	melon yellow, similar RAL 1028	2.000 (-0/+5) x 1.000 (-0/+5) x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	462221	Polystone® M yellow pressed	sheet	sheet	melon yellow, similar RAL 1028	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	469255	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	2.000 (-0/+5) x 1.000 (-0/+5) x 20 mm	2,000 mm	1,000 mm	20 mm
No stock item (MOQ)	469389	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	6.000 x 2.000 x 20 mm	6,000 mm	2,000 mm	20 mm
No stock item (MOQ)	473416	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	2.000 x 1.000 x 80 mm	2,000 mm	1,000 mm	80 mm
No stock item (MOQ)	473420	Polystone® M yellow pressed	sheet	sheet	colza yellow, similar RAL 1021	6.000 x 2.000 x 80 mm	6,000 mm	2,000 mm	80 mm
No stock item (MOQ)	481508	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2.000 x 1.000 x 12 (-0/+0,4) mm	2,000 mm	1,000 mm	12 mm
No stock item (MOQ)	481726	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	3.000 x 1.000 x 6 mm	3,000 mm	1,000 mm	6 mm
No stock item (MOQ)	481981	Polystone® M yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 6 mm	6,000 mm	2,000 mm	6 mm
No stock item (MOQ)	322204	Polystone® M UV-stabilized yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 10 mm	6,000 mm	2,000 mm	10 mm
No stock item (MOQ)	362426	Polystone® M UV-stabilized yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.000 x 60 mm	6,000 mm	2,000 mm	60 mm
No stock item (MOQ)	400279	Polystone® M UV-stabilized yellow pressed	sheet	sheet	golden yellow, similar RAL 1004	6.000 x 2.500 x 10 mm	6,000 mm	2,500 mm	10 mm
No stock item (MOQ)	420627	Polystone® M UV-stabilized yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	6.000 x 2.500 x 100 mm	6,000 mm	2,500 mm	100 mm
No stock item (MOQ)	458494	Polystone® M UV-stabilized yellow pressed	sheet	sheet	traffic yellow, similar RAL 1023	2.000 x 1.000 x 30 mm	2,000 mm	1,000 mm	30 mm

Technical Specifications Polystone® M yellow extruded

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,93
Water absorption	DIN EN ISO 62	%	<0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

Mechanical properties

	Test Method	Unit	Guideline Value
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>650
Notched impact strength	DIN EN ISO 11542	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>63

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	80

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ohm * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ohm	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40

Technical Specifications Polystone® M yellow pressed

General properties

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,93
Water absorption	DIN EN ISO 62	%	<0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight		g/mol	∼ 9

Mechanical properties

	Test Method	Unit	Guideline Value
Elongation at yield stress	DIN EN ISO 527	%	>300
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>650
Notched impact strength	DIN EN ISO 11542	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>60

Thermal properties

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	130 ... 135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 ... 80
Service temperature, short term (max.)	Average	°C	130
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	80

Electrical properties

	Test Method	Unit	Guideline Value
Dielectric constant	IEC 60250		2,3
Dielectric dissipation factor (10⁶ Hz)	IEC 60250		0,0001
Volume resistivity	DIN EN 62631-3-1	Ohm * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ohm	>10¹⁴
Comparative tracking index	IEC 60112		600
Dielectric strength	IEC 60243	kV / mm	>40
