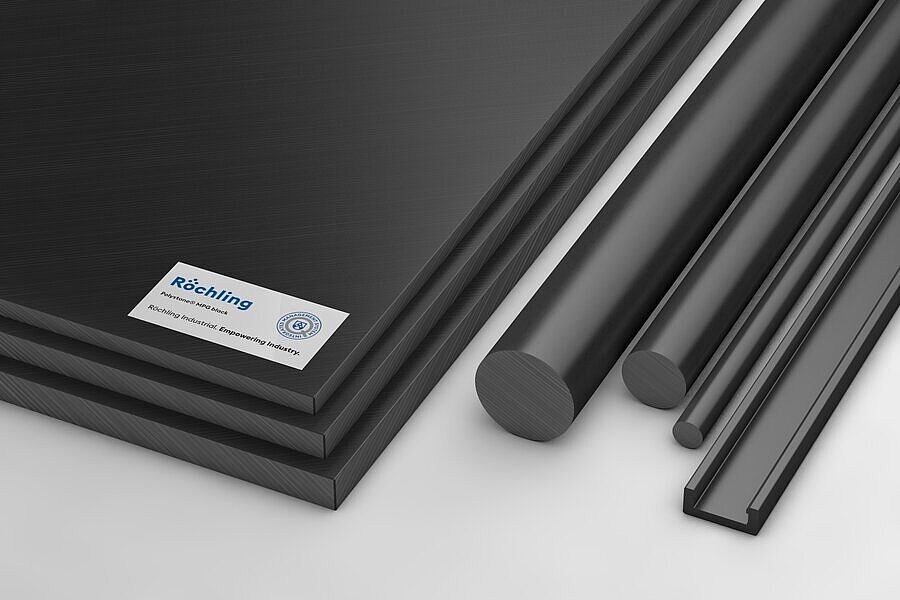

Polystone® MPG black

PE — PE-UHMW - PE 1000

Polystone^® MPG is a material wear-optimised by the addition of glass balls.

black, similar RAL 9005

sheet

Characteristics

Long lifetime
Good sliding properties with soft sliding partners
Low moisture absorption
Good wear resistance

Industries

Variants

Show product in Webshop

	SKU	Name	Type	Type	Color	Measurements	Length	Width	Thickness
No stock item (MOQ)	380581	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	2.000 x 1.000 x 25 mm	2,000 mm	1,000 mm	25 mm
No stock item (MOQ)	418563	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 2.500 x 10 mm	6,000 mm	2,500 mm	10 mm
No stock item (MOQ)	431444	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 1.250 (+/-30) x 10 (-0/+0,4) mm	6,000 mm	1,250 mm	10 mm
No stock item (MOQ)	431446	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 1.250 (+/-30) x 15 (-0/+0,4) mm	6,000 mm	1,250 mm	15 mm
No stock item (MOQ)	431449	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 1.250 (+/-30) x 30 (-0/+0,4) mm	6,000 mm	1,250 mm	30 mm
No stock item (MOQ)	431450	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 1.250 (+/-30) x 40 (-0/+0,4) mm	6,000 mm	1,250 mm	40 mm
No stock item (MOQ)	431516	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 2.500 x 15 mm	6,000 mm	2,500 mm	15 mm
No stock item (MOQ)	431519	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 2.500 x 30 mm	6,000 mm	2,500 mm	30 mm
No stock item (MOQ)	431520	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 2.500 x 40 mm	6,000 mm	2,500 mm	40 mm
No stock item (MOQ)	440914	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 2.000 x 50 mm	6,000 mm	2,000 mm	50 mm
No stock item (MOQ)	465483	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	6.000 x 2.000 x 55 mm	6,000 mm	2,000 mm	55 mm
No stock item (MOQ)	480168	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	2.000 x 1.000 x 40 mm	2,000 mm	1,000 mm	40 mm
No stock item (MOQ)	482115	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	3.000 (-0/+100) x 1.250 (+/-30) x 30 mm	3,000 mm	1,250 mm	30 mm
No stock item (MOQ)	496168	Polystone® MPG black pressed	sheet	sheet	black, similar RAL 9005	2.000 x 1.000 x 10 mm	2,000 mm	1,000 mm	10 mm

Technical Specifications Polystone® MPG black extruded

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,96
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>20
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>700
Notched impact strength	DIN EN ISO 11542-2	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>65

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130 ... 135
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

	Test Method	Unit	Guideline Value
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Dielectric strength	IEC 60243	kV / mm	>40

Technical Specifications Polystone® MPG black pressed

	Test Method	Unit	Guideline Value
Density	DIN EN ISO 1183-1	g / cm³	>0,96
Water absorption	DIN EN ISO 62	%	0,01
Flammability (Thickness 3 mm / 6 mm)	UL 94		HB
Molecular weight	-	10⁶ g/mol	∼ 9

	Test Method	Unit	Guideline Value
Yield stress	DIN EN ISO 527	MPa	>20
Elongation at break	DIN EN ISO 527	%	>50
Tensile modulus of elasticity	DIN EN ISO 527	MPa	>700
Notched impact strength	DIN EN ISO 11542-2	kJ / m²	>100
Shore hardness	DIN EN ISO 868	scale D	>65

	Test Method	Unit	Guideline Value
Melting temperature	ISO 11357-3	°C	135
Thermal conductivity	DIN 52612-1	W / (m * K)	0,40
Thermal capacity	DIN 52612	kJ / (kg * K)	1,90
Coefficient of linear thermal expansion	DIN 53752	10^-6 / K	150 ... 230
Service temperature, long term	Average	°C	-250 … 80
Service temperature, short term (max.)	Average	°C	130 ... 135
Vicat softening temperature	DIN EN ISO 306, Vicat B	°C	79

	Test Method	Unit	Guideline Value
Volume resistivity	DIN EN 62631-3-1	Ω * cm	>10¹⁴
Surface resistivity	DIN EN 62631-3-2	Ω	>10¹⁴
Dielectric strength	IEC 60243	kV / mm	>40

Downloads

Technical Data Sheet Polystone® MPG black extruded

Technical Data Sheet Polystone® MPG black pressed

Product Handling Information Sheet Polystone® MPG black extruded

Product Handling Information Sheet Polystone® MPG black pressed
