Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 206674 | Trovidur® EA white extruded | sheet | sheet | T-1147 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 206852 | Trovidur® EA white extruded | sheet | sheet | T-1130 white | 3.000 x 1.500 x 1,4 mm | 3,000 mm | 1,500 mm | 1.4 mm | ||
| Stock item (no MOQ) | 206937 | Trovidur® EA white extruded | sheet | sheet | T-1628 white | 3.000 x 1.500 x 1,4 mm | 3,000 mm | 1,500 mm | 1.4 mm | ||
| Stock item (no MOQ) | 206939 | Trovidur® EA white extruded | sheet | sheet | T-1830 white | 3.000 x 1.500 x 1,4 mm | 3,000 mm | 1,500 mm | 1.4 mm | ||
| Stock item (no MOQ) | 301664 | Trovidur® EA white extruded | sheet | sheet | T-1156 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 301666 | Trovidur® EA white extruded | sheet | sheet | T-1130 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 304408 | Trovidur® EA white extruded | sheet | sheet | T-1152 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 310102 | Trovidur® EA white extruded | sheet | sheet | T-1164 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 312335 | Trovidur® EA white extruded | sheet | sheet | T-1670 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 313794 | Trovidur® EA white extruded | sheet | sheet | T-1690 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 317112 | Trovidur® EA white extruded | sheet | sheet | T-1688 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 318116 | Trovidur® EA white extruded | sheet | sheet | T-1160 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 323455 | Trovidur® EA white extruded | sheet | sheet | T-1150 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 324422 | Trovidur® EA white extruded | sheet | sheet | T-1121 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 325847 | Trovidur® EA white extruded | sheet | sheet | T-1166 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 330766 | Trovidur® EA white extruded | sheet | sheet | T-1167 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm | ||
| Stock item (no MOQ) | 379841 | Trovidur® EA white extruded | sheet | sheet | T-1689 white | 2.400 x 1.500 x 1,4 mm | 2,400 mm | 1,500 mm | 1.4 mm | ||
| Stock item (no MOQ) | 379842 | Trovidur® EA white extruded | sheet | sheet | T-GAP 1626 white | 2.400 x 1.500 x 1,4 mm | 2,400 mm | 1,500 mm | 1.4 mm | ||
| Stock item (no MOQ) | 384198 | Trovidur® EA white extruded | sheet | sheet | T-1168 white | 3.000 x 1.500 x 1,2 mm | 3,000 mm | 1,500 mm | 1.2 mm |

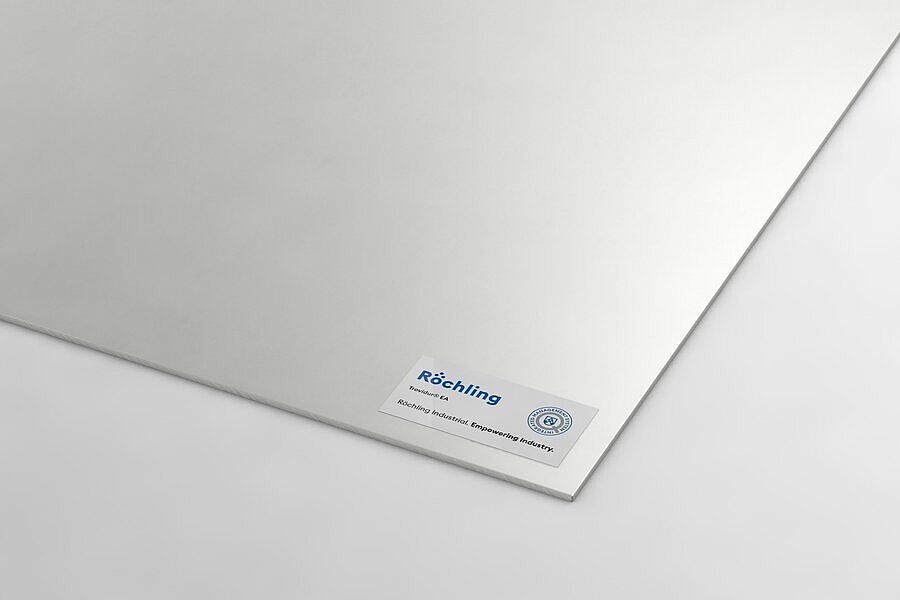

Technical Specifications Trovidur® EA white
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,45 |
| Water absorption | DIN EN ISO 62 | % | ≤0,20 |
| Flammability (Thickness 0,9 mm … 3 mm) | DIN 4102 | B1 | |
| Flammability (Thickness 0,9 mm … 3 mm) | NF P 92-501 | M1 | |
| Flammability (Thickness 1,2 mm) | BS 476 Part 7 | Class 1 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 55 |
| Elongation at break | DIN EN ISO 527 | % | 15 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 83 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 110 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,16 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 76 |
| Service Temperature | °C | -15 ... +60 | |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,2 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
