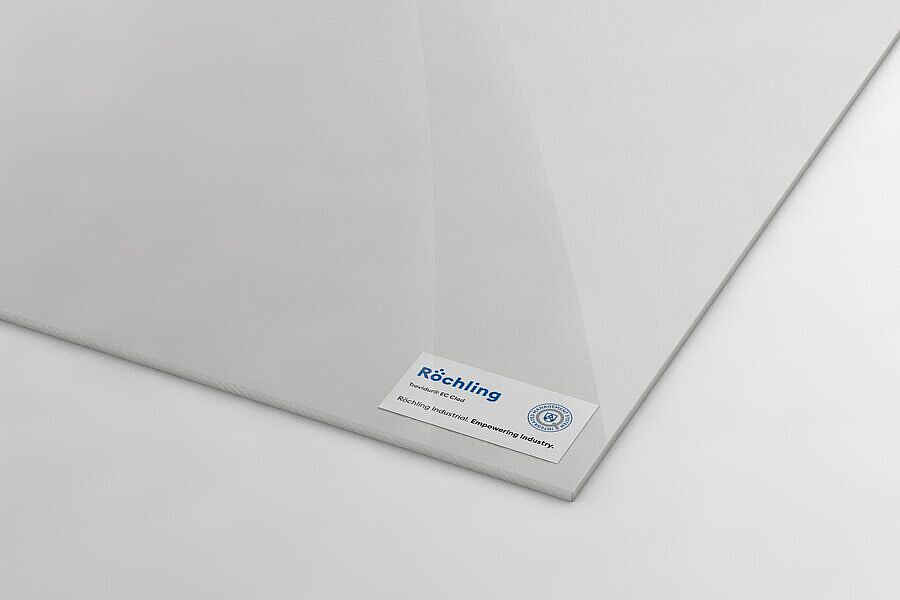

Trovidur® EC Clad LS
PVC-U
T-10 white
sheet
Characteristics
- Fire protection according to EN 13501 B - s2, d0
- Good impact strength
- Good weldability
- Good glueability
- Chemical resistant
- Easy processing
Industries
建筑行业
Variants
Technical Specifications Trovidur® EC Clad LS
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,44 |
| Water absorption | DIN EN ISO 62 | % | 1,0 |
| Flammability | UL 94 | V0 | |
| Flammability | ASTM E 84 | Class 1/A - 2,5 mm | |
| Flammability | EN 13501 | B - s2, d0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 50 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2700 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,18 |
| Coefficient of linear thermal expansion | DIN 53752 | 10-6 / K | 60-80 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 75 |
| Test Method | Unit | Guideline Value |
|---|
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,20 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
