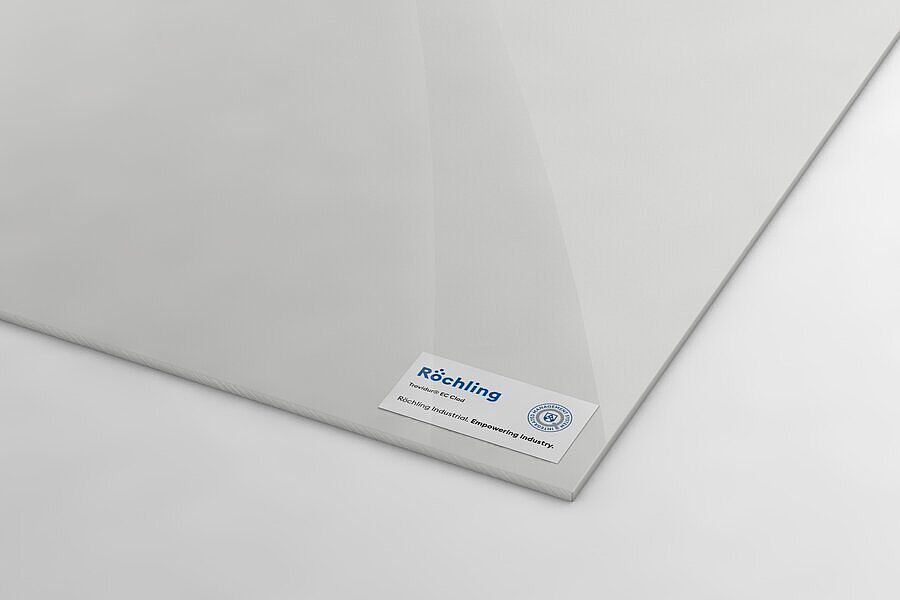

Trovidur® EC Clad white
PVC-U
T-10 white
sheet
Characteristics
- Fire protection according to EN 13501 B - s3, d0
- Good impact strength
- Good weldability
- Good glueability
- Chemical resistant
- Easy processing
Industries
食品行业
Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock item (no MOQ) | 296026 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 2 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 2 mm | ||
| Stock item (no MOQ) | 296028 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 2 x 1220 x 3050 mm | 3,050 mm | 1,220 mm | 2 mm | ||
| Stock item (no MOQ) | 296029 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 2,5 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 2.5 mm | ||
| Stock item (no MOQ) | 296030 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 2,5 x 1220 x 3050 mm | 3,050 mm | 1,220 mm | 2.5 mm | ||
| Stock item (no MOQ) | 296051 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 3 x 1220 x 3050 mm | 3,050 mm | 1,220 mm | 3 mm | ||
| Stock item (no MOQ) | 296052 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 3 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 3 mm | ||
| Stock item (no MOQ) | 296055 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 2 x 1220 x 3050 mm | 3,050 mm | 1,220 mm | 2 mm | ||
| Stock item (no MOQ) | 296056 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 2 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 2 mm | ||
| Stock item (no MOQ) | 296057 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 2,5 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 2.5 mm | ||
| Stock item (no MOQ) | 296058 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 2,5 x 1220 x 3050 mm | 3,050 mm | 1,220 mm | 2.5 mm | ||
| Stock item (no MOQ) | 296983 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 3 x 1220 x 3050 mm | 3,050 mm | 1,220 mm | 3 mm | ||
| Stock item (no MOQ) | 296984 | Trovidur® EC Clad white extruded | sheet | sheet | T-10 white | 3 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 3 mm |
Technical Specifications Trovidur® EC Clad white
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,44 |
| Water absorption | DIN EN ISO 62 | % | 0,2 |
| Flammability (Thickness 1 mm … 3 mm) | NF P 92-501 | M1 | |
| Flammability (Thickness 2,5 mm) | BS 476 Part 6 | Class 0 | |
| Flammability (Thickness 2,5 mm) | BS 476 Part 7 | Class 1 | |
| Flammability (Thickness 1,9 mm … 2,5 mm) | EN 13501-1 | B s3 d0 | |
| Flammability (Thickness 1,7 mm … 3 mm) | UL 94 | V0 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 50 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2800 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 80 |
| Ball Hardness | ISO 2039 | MPa | 110 |
| Compressive strength | DIN EN ISO 604 | MPa | 65 |
| Bending strength | DIN EN ISO 178 | MPa | 70 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Thermal conductivity | DIN 52612-1 | W / (m * K) | 0,16 |
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 75 |
| Service Temperature | °C | -15 ... +60 | |
| Heat deflection temperature | DIN EN ISO 75 | °C | 66 |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,20 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
