Application Examples
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

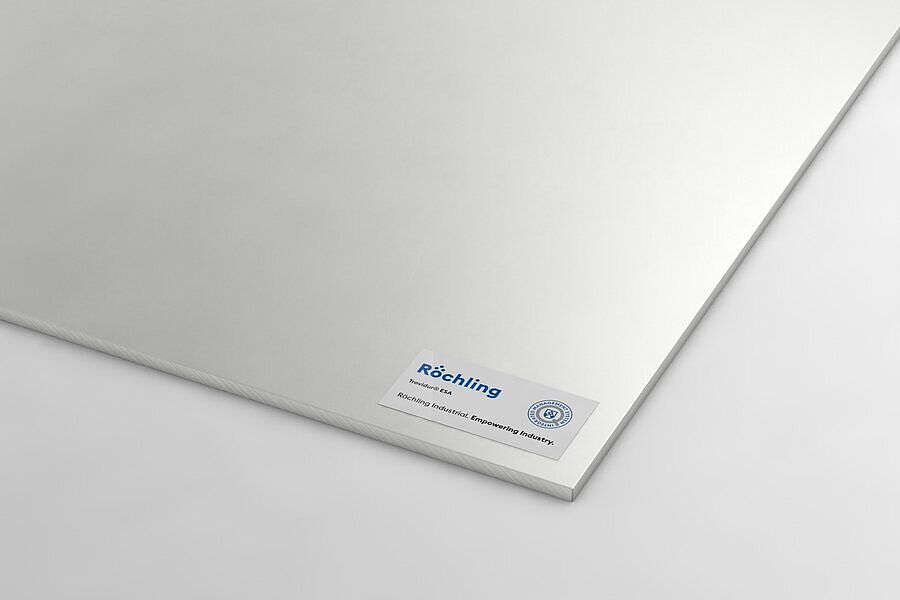

| Stock item (no MOQ) | 100925 | Trovidur® ESA-D white extruded | sheet | sheet | T-2060 white | 3 x 1500 x 3000 mm | 3,000 mm | 1,500 mm | 3 mm | ||
| Stock item (no MOQ) | 206713 | Trovidur® ESA-D white extruded | sheet | sheet | T-2060 white | 4,5 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 4.5 mm | ||
| Stock item (no MOQ) | 206816 | Trovidur® ESA-D white extruded | sheet | sheet | T-2060 white | 3 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 3 mm | ||
| Stock item (no MOQ) | 206820 | Trovidur® ESA-D white extruded | sheet | sheet | T-2060 white | 2 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 2 mm | ||
| Stock item (no MOQ) | 206834 | Trovidur® ESA-D white extruded | sheet | sheet | T-2060 white | 1,5 x 1220 x 2440 mm | 2,440 mm | 1,220 mm | 1.5 mm | ||
| No stock item (MOQ) | 472547 | Trovidur® ESA-S white extruded | sheet | sheet | T-2119 white | 3 x 2050 x 2800 mm | 2,800 mm | 2,050 mm | 3 mm | ||
| No stock item (MOQ) | 471429 | Trovidur® ESA white extruded | sheet | sheet | T-1968 white | 4 x 910 x 1425 mm | 1,425 mm | 910 mm | 4 mm |
Technical Specifications Trovidur® ESA
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 1,41 |
| Water absorption | DIN EN ISO 62 | % | 0,20 |
| Flammability (Thickness 1 ... 4 mm) | DIN 4102 | B1 | |
| VOC | ISO 16.000 | conform | - |
| Flammability (Thickness 2,5 mm) | BS 476 Part 6 | Class 0 | |
| Flammability (Thickness 1 ... 4 mm) | NF P 92-501 | M1 | |
| Flammability (Thickness 2 ... 4 mm) | BS 476 Part 7 | Class 1 | |
| Flammability (Thickness 2,5 mm) | EN 13501-1 | B s3 d0 | |
| Flammability (Thickness 4 mm) | EN 13501-1 | B s3 d2 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 45 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 2500 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 8 |
| Shore hardness | DIN EN ISO 868 | scale D | 80 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 110 |
| Compressive strength | DIN EN ISO 604 | MPa | 65 |
| Bending strength | DIN EN ISO 178 | MPa | 60 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Vicat softening temperature | DIN EN ISO 306, Vicat B | °C | 75 |
| Service Temperature | °C | -20 ... +60 | |
| Heat deflection temperature | DIN EN ISO 75 | °C | 70 |
| Coefficient of linear thermal expansion | DIN EN ISO 11359-2 | mm/m K | ∼ 0,075 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Dielectric constant | IEC 60250 | 3,2 | |
| Dielectric dissipation factor (106 Hz) | IEC 60250 | 0,02 | |
| Volume resistivity | DIN EN 62631-3-1 | Ω * cm | >1015 |
| Surface resistivity | DIN EN 62631-3-2 | Ω | >1013 |
| Dielectric strength | IEC 60243 | kV / mm | 12 |
| Comparative tracking index | IEC 60112 | CTI | 600 |
