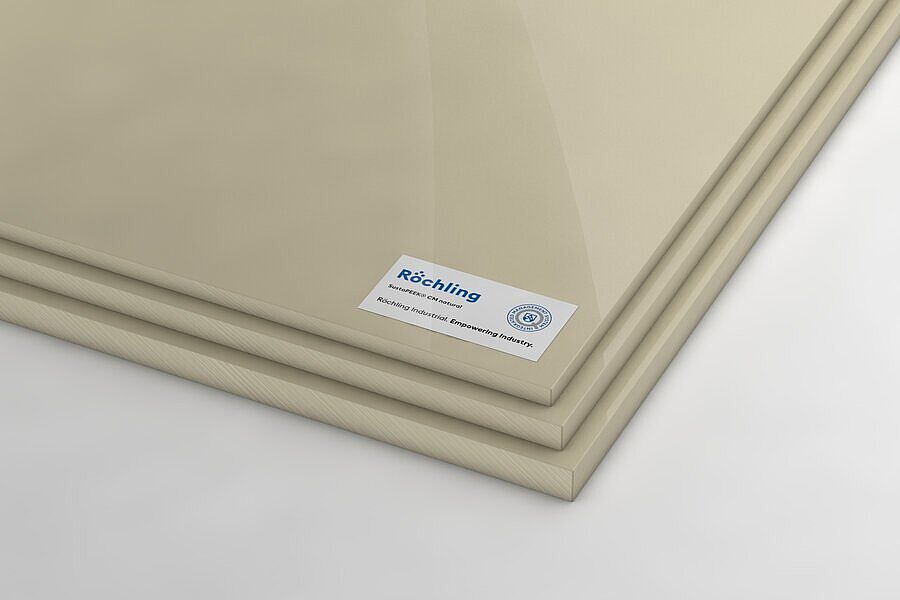

SustaPEEK CM LD natural
PEEK
The high-performance lightweight construction concept
SustaPEEK® CM LD is a specially developed lightweight plastic, where LD stands for Low Density. It is manufactured using the hot pressing process, which guarantees very low residual stresses and warpage.
You can use this lightweight solution whenever you want to optimize the efficiency of your process.

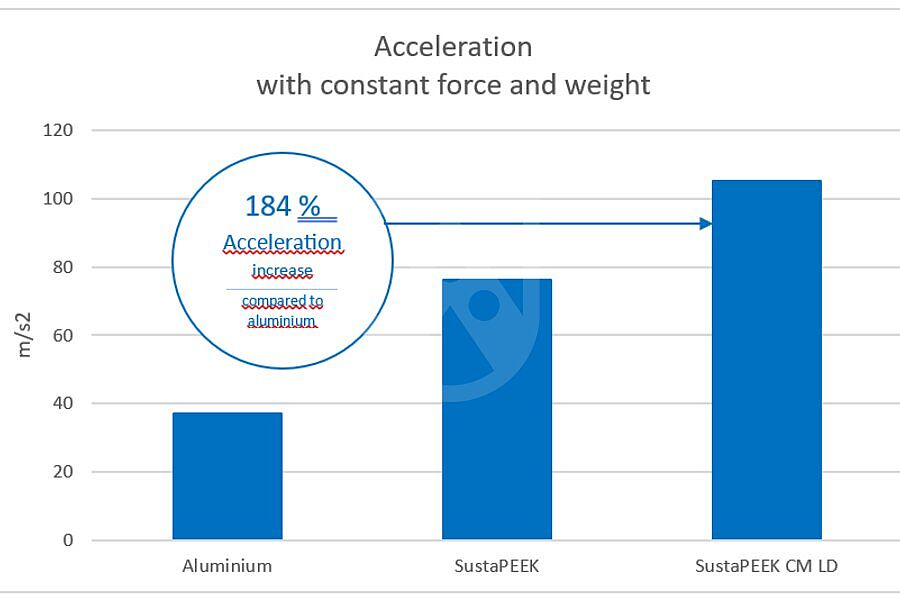

By reducing the weight of your component, you can either increase load-bearing capacities, increase process speeds or reduce energy costs.
natural
sheet
Variants
| SKU | Name | Type | Type | Color | Measurements | Length | Width | Thickness | Height | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No stock item (MOQ) | 883545 | SustaPEEK CM LD natural pressed | sheet | sheet | natural | 16 x 395 x 395 mm | 395 mm | 395 mm | 16 mm |
Technical Specifications SustaPEEK CM LD natural
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g / cm3 | 0,95 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Elongation at break | DIN EN ISO 527 | % | 2 |

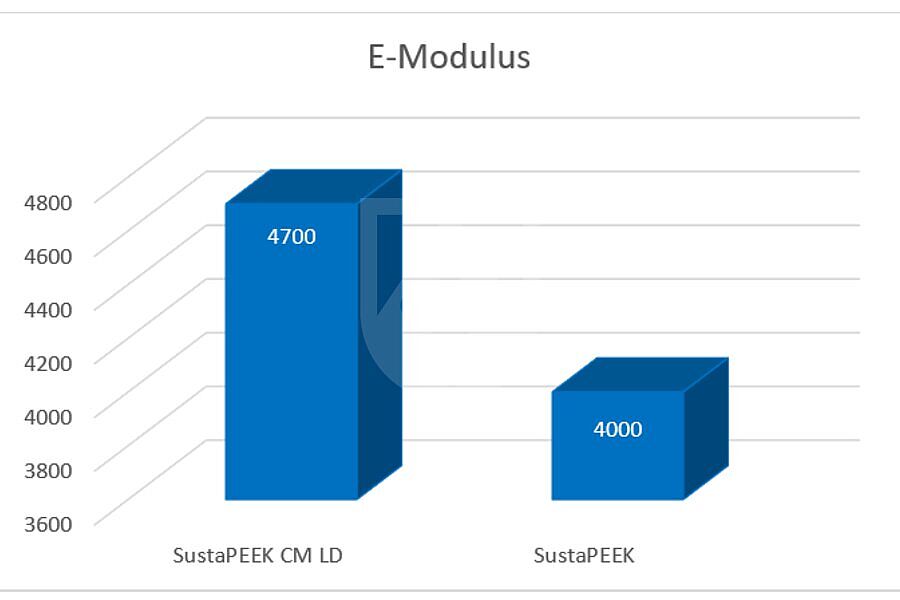

| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 4700 |
| Tensile strength | DIN EN ISO 527 | MPa | 65 |
| Notched impact strength | DIN EN ISO 179 | kJ / m2 | 2 |
| Shore hardness | DIN EN ISO 868 | scale D | 85 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 250 |
| Elastic modulus of compression | DIN EN ISO 604 | MPa | 4000 |
| Test Method | Unit | Guideline Value | |
|---|---|---|---|
| Melting temperature | ISO 11357-3 | °C | 337 |
| Service temperature, long term | Average | °C | -60...250 |
| Service temperature, short term (max.) | Average | °C | 310 |
